Notifier Electronic Visual Alarm Devices - Visual Alarm Devices

Verified by manufacturer 2 days ago

BGL-PC-I02 – Intelligent Detector Base Strobe

NOTIFIER Variant:

A range of wall mount strobes and detector base Visual Alarm Devices for fire alarm systems.

Jump to:
+44 (0) 203 4091779 Website

Application

  • Office buildings
  • Public buildings
  • Bathrooms
  • Hotels
  • Noisy environments

Description

A range of wall mount strobes and detector base Visual Alarm Devices for fire alarm systems.

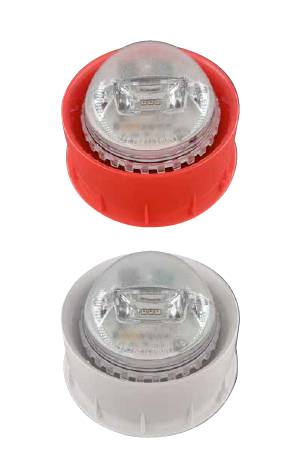

Intelligent Wall Mount Visual Alarm Devices

NOTIFIER by Honeywell’s Wall Mount Visual Alarm Device is a modular, high-output loop powered device intended to alert all building occupants of a potential fire. Pure white or red body color options, and white or red flash colour options.

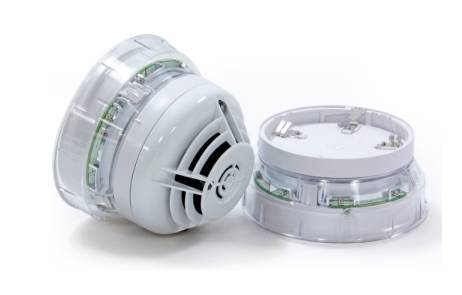

Intelligent Detector Base Visual Alarm Devices EN 54-23 C Category

NOTIFIER by Honeywell’s Detector Base Visual Alarm Device is a modular, high-output loop powered device intended to alert all building occupants of a potential fire. Red flash - industry preferred colour for evacuation.

Note: To achieve an IP21C rating, the provided seal must be fitted to the product.

Features and benefits:

  • Enables a complete, fully compliant and cost-effective fire alarm system by reducing installation and commissioning costs through fewer wiring points.
  • Approved to EN 54-23 and EN 54-17.
  • Efficient light output and power consumption enables more devices on a loop.
  • Modular design allows individual components to be replaced separately.
  • Backwards compatibility with red flash, B501 base.

General information

Color

White

Red

Shape

Circle

Length

121 mm

125 mm

Width

121 mm

125 mm

Height

60 mm

Uniclass

Pr_75_80_30_97 Visual alarm signal devicesPrimary

CAWS

W90/338 Visual alarm devices

SKU Code

BGL-PC-I02

Specification data - Visual alarm signal devices

Classification data

Standard

To EN 54-23, EN 54-17.

Third-party certification

CE, LPCB.

Enclosure protection

IP21C.

Manufacturer guidance

With low profile B501AP base and IP seal.

Category

To EN 54-23, C-3-8.5.

Body colour

White.

Lens colour

Clear.

Accessories

B501AP - Low profile base.

Literature

Notifier_Strobe only_DTS_A4_EN-1122_S

Notifier_Strobe only_DTS_A4_EN-1122_S

HBT-Fire-NOTIFIER-BGL-PC-I02

HBT-Fire-NOTIFIER-BGL-PC-I02
