Notifier Agile Wireless Fire Detection
Verified by manufacturer 23 hours ago
A wireless fire detection devices compatible with Notifier Analogue Addressable Fire Detection systems. Hybrid approach to wireless and hard wired on same fire alarm platform.
Application
Suitable for all applications where wired fire devices cannot be installed for economic or aesthetic reasons.
Description

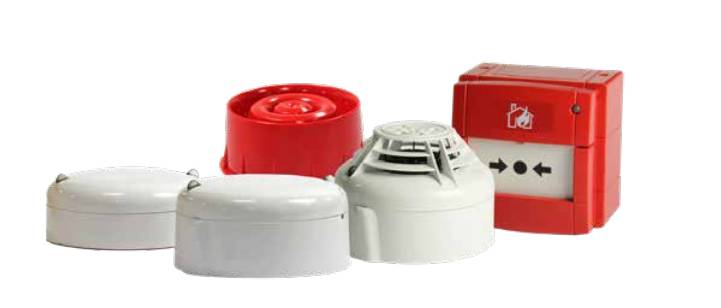

The Agile™ Wireless Fire Detection and Alarm System is a platform of wireless fire devices.
The Agile™ wireless platform is powered by mesh network technology providing up to two communication paths to each wireless device. This makes the network reliable, protecting against broken communication links. Mesh network technology enables flexible and economic installations in a wide variety of building footprints.
The Agile™ Wireless Fire Detection System is an extension of the Notifier product range. Wireless devices can be integrated into existing systems, giving the fire system the flexibility to be easily extended.
Features and benefits:
- Mesh multiple communication paths for increased reliability.
- 18RF channels at 868 MHz - provides greater tolerance to interference.
- Two integrated antennas on each wireless fire device – easier positioning of devices.
- Up to 400 m free air communication range – providing good coverage levels.
- Average five year battery service life – reducing maintenance requirements.
- Addresses set using rotary switches – reduced commissioning time.
General information
Color | White Red |
Shape | Rectangle Circle |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | W90/125 Fire detection and alarm systems in non-domestic premises |
Specification data - Fire detection and alarm systems
Classification data | |
System type | Addressable. |
Detection devices | |
Atmosphere | Normal. |
Types | NRX-SMT3 - Multi-Criteria: Photo-Thermal-IR Detector. NRX-OPT - Photo Detector. NRX-TFIX58 - 58°C Fixed Temperature Heat Detector. NRX-TDIFF - Rate of Rise Heat Detector. NRX-WCP - Manual Call Point. Manufacturer guidanceSupply: 4 No. CR123A 3 V batteries. Radio frequency: 865-870 MHz. |
Equipment interconnectivity | Radio-linked. |
Internal alarms | |
Primary | NRX-WS-RR - Wall mounted sounder (red). NRX-WS-WW - Wall mounted sounder (white). NRX-WSF-RR - Wall mounted sounder strobe (red/red). NRX-WSF-WR - Wall mounted sounder strobe (white/red). Manufacturer guidanceSupply: 4 No. CR123A 3 V batteries. Radio frequency: 865-870 MHz. Fire standard, sounders: EN 54-25 (RF), EN 54-3. Fire standard, sounder strobes: EN 54-25 (RF), EN 54-3, EN 54-23. |
Controls | NRXI-GATE - Gateway, Agile IQ - PC software and NRX-USB -USB Dongle. Guidance for specification option: The Gateway is the translator between the radio network and the loop based fire detection system, and can handle up to 32 wireless devices. Up to 8 Gateways per loop. Fire standard: EN 54-25 (RF), EN 54-18, EN 54-17. Manufacturer guidanceAll operations for the design, configuration and diagnostics of the Agile™ Wireless Fire Detection System be facilitated by the AgileIQ™ PC based software tool. It enables the PC to exchange information with the wireless devices without any hardwired connection by means of a wireless USB dongle. |
System accessories | NRX-REP - Repeater. Guidance for specification option: Repeater, providing larger area coverage and more robust communication. Supply: 2 No. CR123A 3 V batteries. Radio frequency: 865-870 MHz. Fire standard: EN 54-25 (RF), EN 54-18. NRX-M711 - Wireless I/O module. NRX-IRK - Remote indicator. Guidance for specification option: Supply: 2 No. CR123A 3 V batteries. Radio frequency: 865-870 MHz. B501RF - Base for detectors or repeaters (white). B501RF-RR - Base for sounders (red). |
