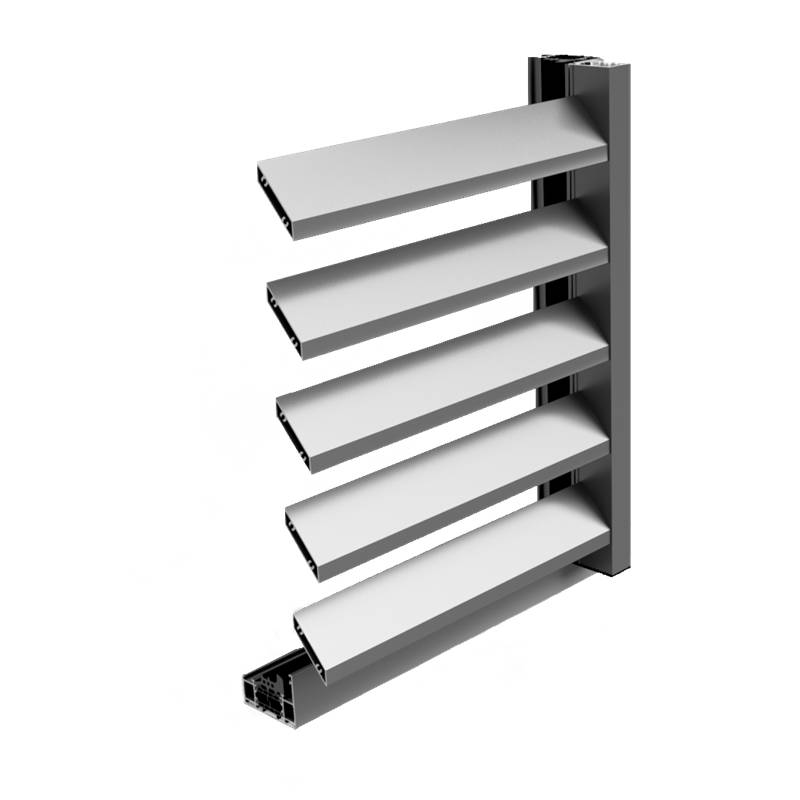

NOTEAL Louvre Guarding
Verified by manufacturer 5 days ago
Louvre panels for guarding openings.
Application
Suitable for use externally in ventilation and safety applications.
Suitable for most BS 6180 applications:
- Domestic and residential buildings.
- Offices and commercial sectors.
- Retail and leisure areas.
Description
The NOTEAL Louvre Guarding protects occupants from falling through open windows in high-rise applications, such as student housing, retail and commercial buildings. This product is vertical load tested and horizontal load tested and has been tested with Technal's window systems for maximum fall protection.
Features and benefits:
- Fast and hassle-free installation.
- Concealed fixings.
- Three blade options.
- Optional fly screen.
- Fully tested to BS 6180 standards and impact tested to CWCT TN76.
- Fully compatible and fully tested with all Technal systems.
- Solar shading.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 1000 mm |
Width | 50 mm |
Height | Bespoke |
Uniclass | |
CAWS | L10/54 Louvres H11/140 Louvres L10/650 Metal louvres |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Guidance for specification option: Bespoke, consult manufacturer and insert requirements.
|
Material | Hydro CIRCAL® recycled aluminium. |
Finish | Powder coating. |
Colour | Guidance for specification option: RAL colour pallet colours available, consult manufacturer and insert requirements. |
Construction | Frame with concealed fixings. |
Louvre configuration | |
Blade orientation | Horizontal. |
Blade angle | Inclined rectangular blade (fixed). Straight rectangular blade (fixed). Inversed Y-shaped blade (fixed). |
Accessories | Not required. Insect screen. |
Load | Horizontal line loads: <1.5 kN/m. |
Impact resistance | To CWCT TN76, 0.3 kN, 500 J. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 1.9 kg CO₂ eq/kg |
Declared unit | 1.9 kg CO₂ eq/kg Self-declared Lower emissions |
Recyclability | 95 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Expected Life | 50 year |
