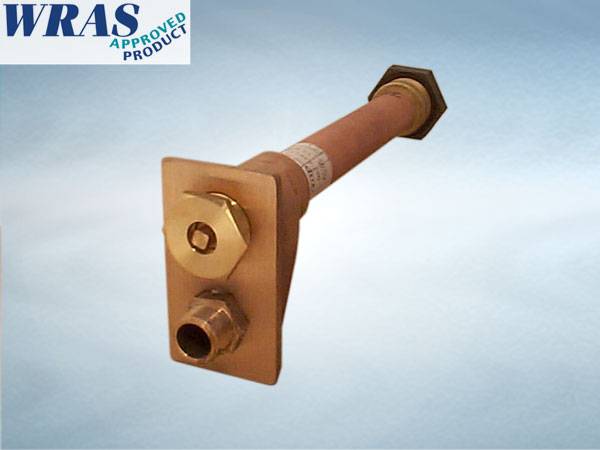

Non-freeze water point.
The non-freeze water point provides an external water source for plant watering, area cleaning, vehicle washing and similar activities. The product is designed to be installed with the valve seal located inside a building, whilst the on/ off control mechanism and hose connections are outside.
When the valve is turned off, water drains out from the unit so that freezing cannot occur. It is made to suit a given wall thickness and the product can be supplied with a wall box, with optional locking cover to deter unauthorized access. The Wade non-freeze water point is a U.K. Water Byelaws Scheme Approved Product - Certificate No. 0306007. Water points are non-freeze, only when installed in the horizontal position, and are suitable for use only at normal mains supply pressure (10 Bar maximum).
S14/383 Stop valves and draw-off taps for above ground use
Non-Freeze Water Point
YA101 - Without wall box
YA211 - With an aluminium, white epoxy coated wall box.
YA211L - With an aluminium, white epoxy coated wall box, with locking cover
YA212 - With a nickel bronze, satin wall box
YA212L - With a nickel bronze, satin wall box, with locking cover
YA213 - With a gunmetal, satin wall box
YA213L - With a gunmetal, satin wall box, with locking cover
YA304 - With a stainless steel grade 304, satin wall box
YA304L - With a stainless steel grade 304, satin wall box with locking cover
YA316 - With a stainless steel grade 316, satin wall box
YA316L - With a stainless steel grade 316, satin wall box with locking cover
