NOFIRNO Duct Seal  Water & Gastight Sealing Solutions

NOFIRNO Duct Seal Water & Gastight Sealing Solutions

Verified by manufacturer 2 months ago

CSD Sealing Systems Ltd Third party certifications:
  • European Technical Approvals

    European Technical Approvals

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

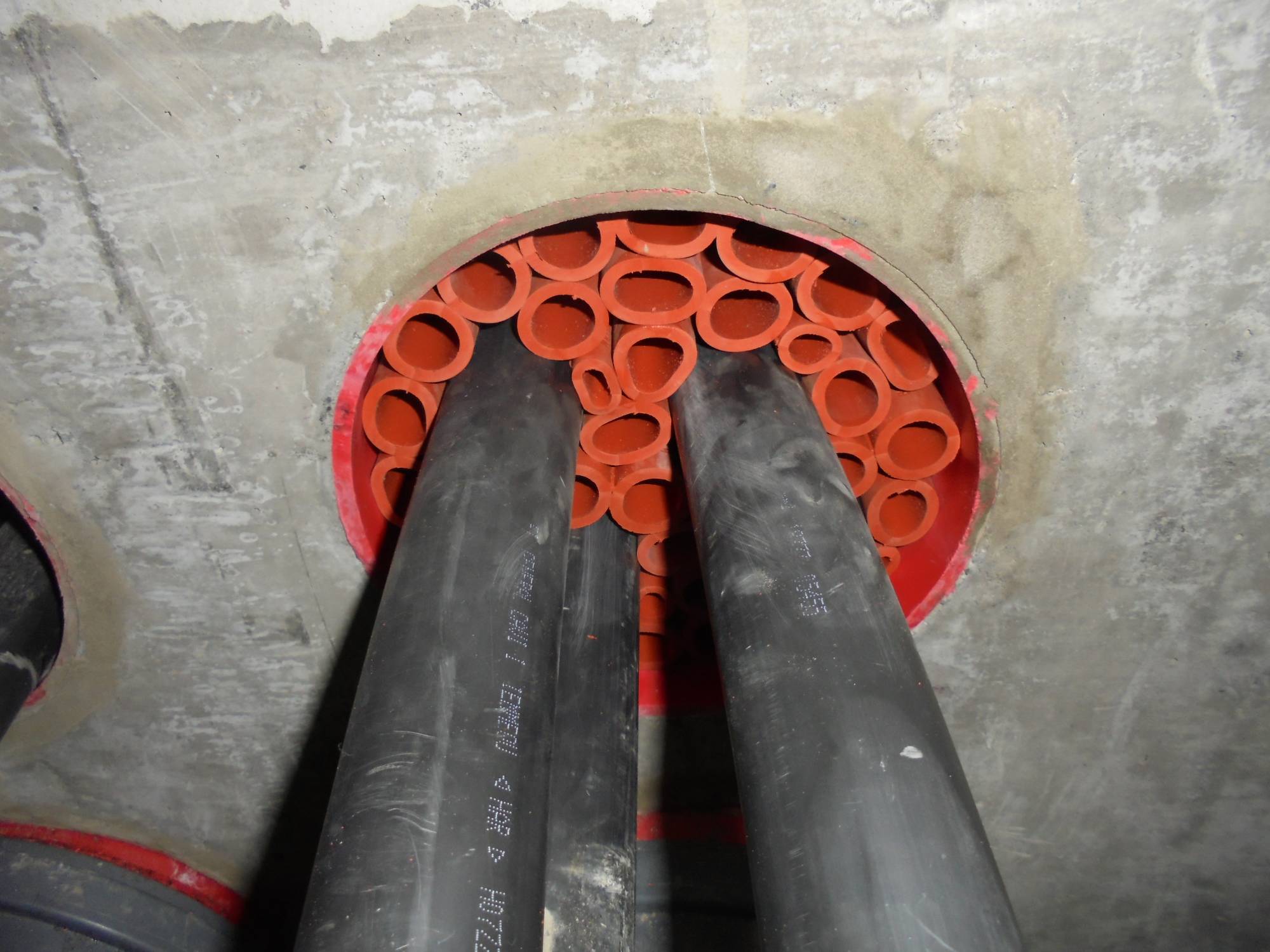

Nofirno duct sealing system provides watertight, gastight and rodent protection for all types of cable and pipe penetrations.

Jump to:
+44 (0)1670 739970 www.csdsealingsystems.co.uk

Application

Designed for sealing cable ducts and building entries against ingress of water, gas or flooding.

Description

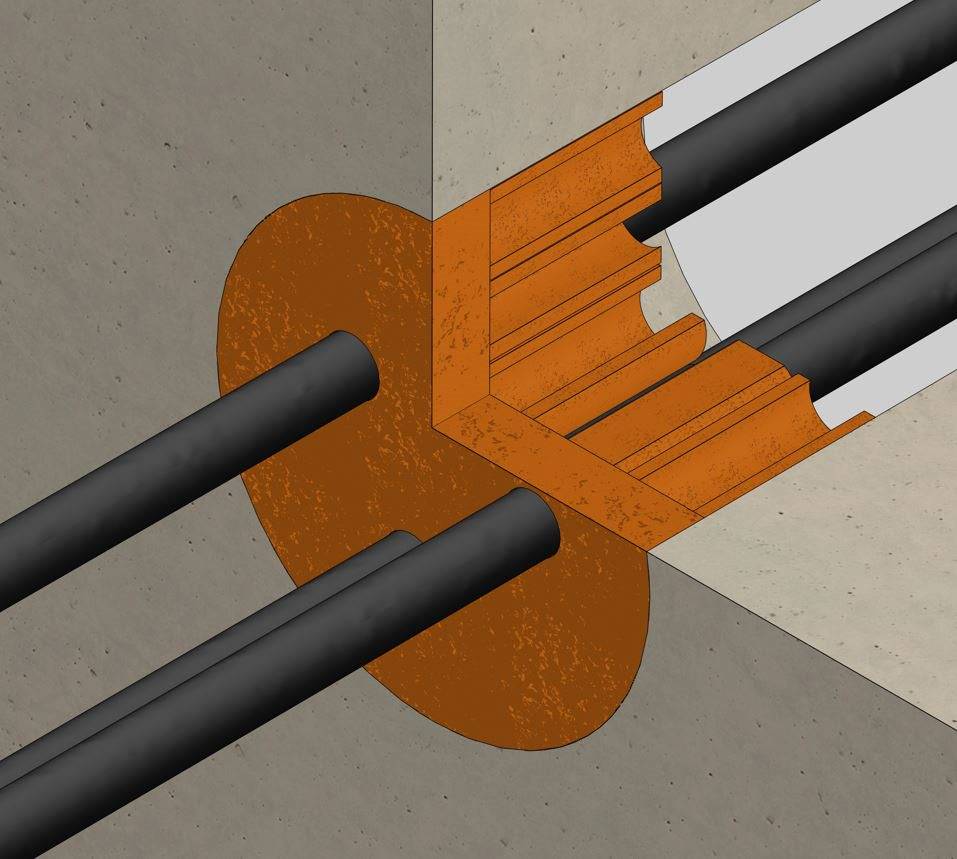

Nofirno duct sealing system is a simple and long-term solution designed for sealing cable and pipe penetrations entering building against ingress of water, gas, and Rodents. The system is used extensively across the utilities and construction sectors to protect electrical substations, equipment rooms and critical infrastructure.



Features and benefits:

  • Provides flood protection and prevents gas ingress.
  • Fire rated version available certified to BS EN 1366-3.
  • Quick and easy to install in both horizontal & vertical ducts.
  • Age tested to prove 50 years of sealing protection.
  • A cost effective Totex solution.
  • Easy re-entry for adding, removing, or replacing cables.
  • Suitable for trefoil and large power cables and provides long term cable support.
  • Installed in any sized or shaped opening.
  • Prevents rodent ingress.
  • Resistant to submersion in Petrol and Diesel.
  • Resistant to Methane, Hydrogen Sulphide and Chlorine.
  • 60 mm long multi sleeve.
  • Certified up to 4 bar water pressure.
  • Ensures WIMES, APEA, ATEX & DSEAR compliance.

General information

Color

Orange

Material

Silicone

Rubber

NOFIRNO rubber insert sleeves.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_65_52_61_64 Pipe sleeve sealsPrimary

CAWS

E40/320 Hydrophilic waterstops

D40/565 Proprietary waterstops

Specification data - Pipe sleeve seals

Materials

-

Body

Rubber.

Seal

NOFIRNO Sealant.

Size

50 mm.

100 mm.

110 mm.

125 mm.

150 mm.

160 mm.

180 mm.

200 mm.

225 mm.

250 mm.

300 mm.

Environmental information

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

No

Recycled content

0 %

Digital objects

Platform Compatible Version Certified to
IFC
-

1

1

Download now from NBS National BIM Library

Literature

Nofirno Duct Seal (Brochure)

Nofirno Duct Seal (Brochure)

Case studies

Water Industry Case study

Water Industry Case study

Third party certifications

European Technical Approvals

European Technical Approvals

Nofirno Clean Water Test

European Technical Approvals

European Technical Approvals

Pressure test for Nofirno Sealing system

QA Certificate

QA Certificate

ISO 9001 cert for CSD
