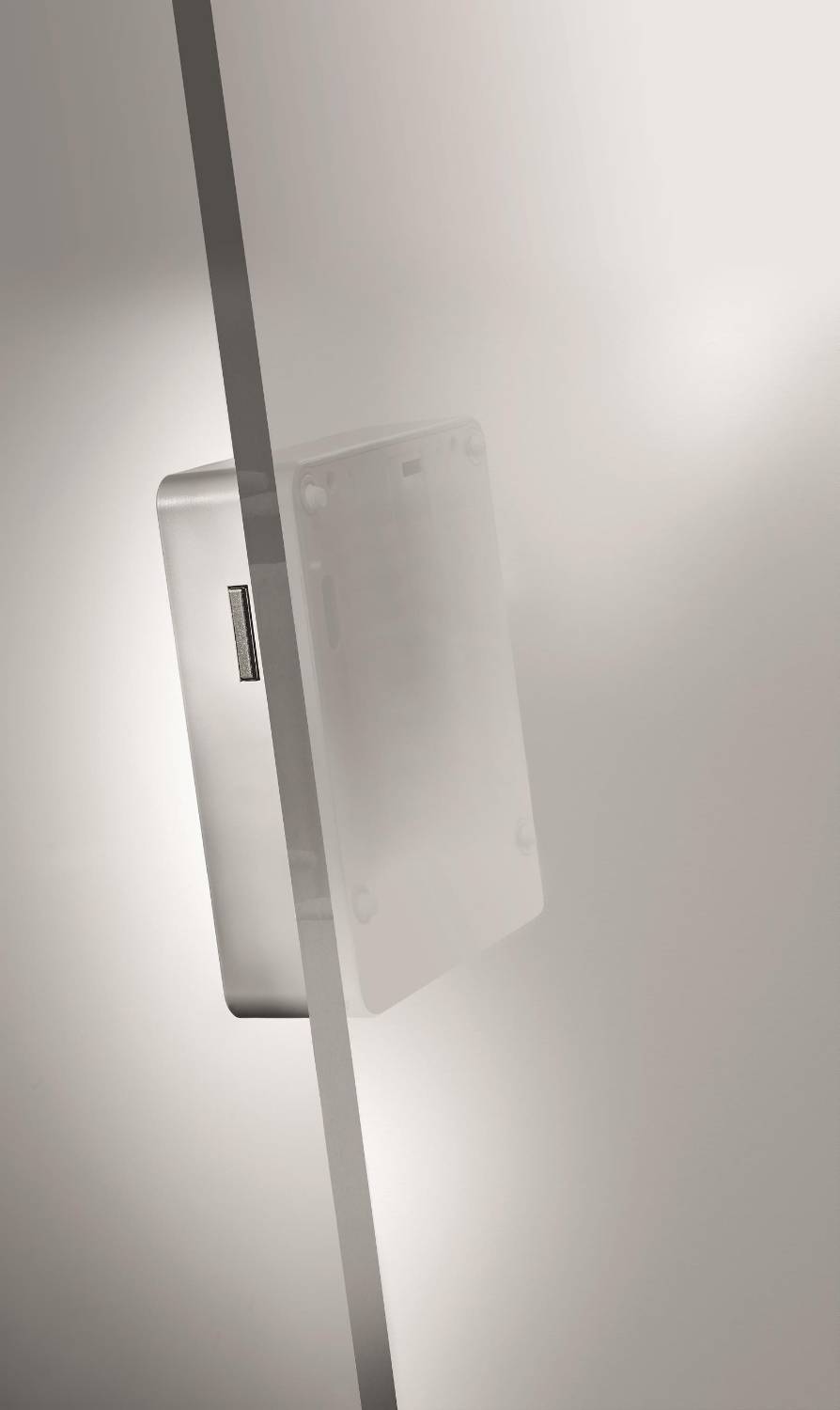

NL1®Integra: Invisible locking system - Electronic locks
Verified by manufacturer 4 months ago
Intelligent contactless locking system.
Application
Suitable for office lockers.
Description
Intelligent contactless locking system.
Features and benefits:
- Fully integrated in the locker.
- Automatic and emergency openings.
- Encrypted communications.
- Electronic components, batteries and mechanical locking system are protected inside the lock.
- SDK ready to be integrated with third parties.
- Supported technologies: MIFARE® (Classic1K/4K 4B and 7B UID – ISO/IEC 14443).
General information
Color | Grey |
Shape | Rectangle |
Length | 109.5 mm |
Width | 129.5 mm |
Height | 30 mm |
Warranty description | Two year |
Uniclass | |
CAWS | W90/363 Access control units |
Specification data - Proximity card readers
Colour | Satin Grey (RAL 7035). |
Impact protection (minimum) | To BS EN 62262, IK09. |
Communication interface | Near-field communication (NFC). |
Number of users (minimum) | 1. |
Proximity read range | Up to 20 mm. |
Mounting position | Intergrated into the locker. |
Audio status indication | Alarm.Guidance for specification option: Low battery warning (does not allow the locker to be closed). |
Product Reference | NL1 Integra |
TemperatureRange | -10 °C to +42 °C. |
Sustainability data
Country of product manufacture | Spain |
Literature
NL1®Integra Datasheet
Assembly Instructions NL1®Integra
