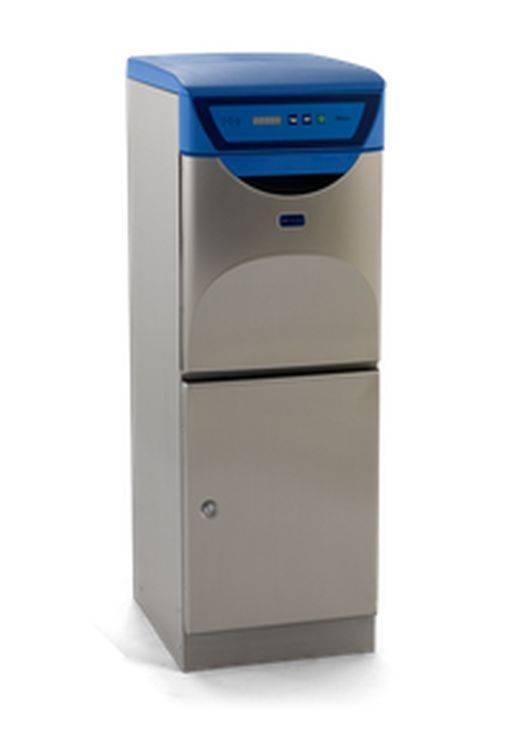

Ninjo® - Bedpan Washer - Entry Level Flusher Disinfector

Verified by manufacturer 3 months ago

Arjo UK Ltd

An effective flusher disinfector that offers a wide range of design possibilities.

Jump to:
+44 (0)3457 342000 Website

Application

For the emptying, cleaning and disinfection of human waste receptacles such as bedpans, urinals, commode buckets and lids. Bowls, basins and other utensils used in care facilities can also be processed.

Description

Ninjo is an effective flusher disinfector that offers a wide range of design possibilities. Ninjo features a control panel with digital display which clearly indicates the disinfection level as well as remaining time to complete the cycle, allowing you to keep track of the cycle progress and plan your workflow. Attractive design, easy operation and excellent disinfection performance, Ninjo is a reliable choice to support your infection control routine. Ninjo cleans receptacles with a series of high pressure water cycles delivered through strategically located fixed and rotating nozzles, followed by a thermal steam disinfection phase to achieve effective cleaning and disinfection results


Features and Benefits:

  • Digital A₀ value and remaining time display - digital display clearly indicates A₀ disinfection level as well as time remaining until end of cycle.
  • Cooling fan - built-in cooling fan dries containers quickly and cools them with HEPA-filtered (H13) air.
  • Reduce risk of cross-contamination.
  • Two programmes available: economy and normal, with an additional three available upon request.
  • Flexible design options.

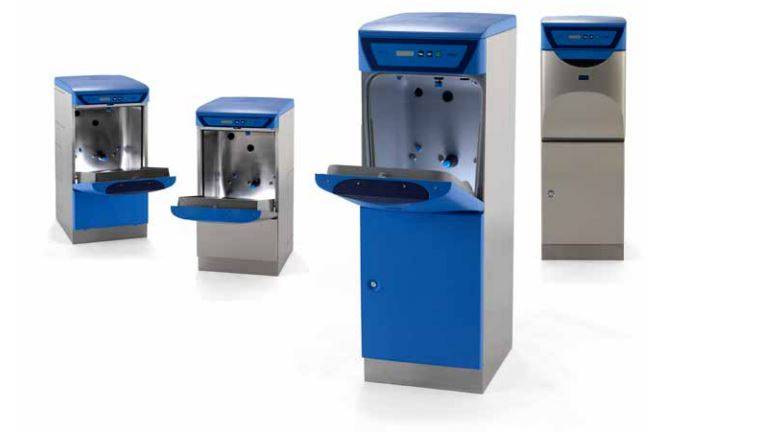

  • Available as a free-standing or under-counter unit. Choose from stainless steel or colourful polymeric finish.
  • Designed along with the four-cornerstone principle when creating a safe workflow within a sluice room area.

General information

Color

Grey

Blue

Finish

Other

Material

Stainless steel

Guidance for specification option:

Optional.

Polymeric

Shape

Rectangle

Length

580 mm

Width

450 mm

Guidance for specification option:

Free Standing

620 mm

Guidance for specification option:

Under Counter

Height

1320 mm

Guidance for specification option:

Ninjo® free standing

870 mm

Guidance for specification option:

Ninjo® under counter.

Warranty description

One year

Uniclass

Pr_40_20_93_36 Health care maceratorsPrimary

CAWS

N13/65 Small-bore macerator and pumping units

N13/452 Small-bore macerator and pumping units

Specification data - Health care macerators

Approvals

Water Regulations Advisory Scheme (WRAS) approved.

Form

Floor mounted, front access.

Guidance for specification option:

Ninjo® - free standing and Ninjo® -under counter.

Materials

-

Body

Stainless steel.

Finish and colour

Stainless steel.

Polymeric.

Guidance for specification option:

Colourful polymeric finish.

Operation

Automatic.

Accessories

None.

Additional detergent dosage.

Guidance for specification option:

For bowls, basins and other utensils.

Built-in main switch.

External cooling.

Guidance for specification option:

Rinse after disinfection with water supplied directly from the water inlet (instead of the tank).

Valves and filters.

Guidance for specification option:

Purifying filter for incoming water and shut-off valves. Consult manufacturer for details and insert requirements.

Waste

Integral DN 90 (3.5 in) waste.

Guidance for specification option:

Drain connection.

Integral DN 110 (4.5 in) waste.

Guidance for specification option:

Drain connection.

Electrical supply

16 A connection unit.

Product Reference

Ninjo® - free standing

Ninjo® - under counter

Voltage

230 V.

Frequency

50 Hz.

PrimaryEnergyConsumption

0.16 kWh.

Guidance for specification option:

Per cycle.

WaterConsumption

11 L.

Guidance for specification option:

Economy program 11 liters/cycle ±10 %.

18 L.

Guidance for specification option:

Normal program 18 liters/cycle ±10 %.

Water pressure

1-8 Bar.

Guidance for specification option:

14-116 PSI.

Flowrate

> 0.3 l/s.

Noise

53 dB.

Guidance for specification option:

(A) accordingly to EN ISO 3747:200.

Weight

90 kg.

Guidance for specification option:

Ninjo® - Free standing.

70 kg.

Guidance for specification option:

Ninjo® - Wall mounted* and Ninjo® - Under counter (*Not including wall mounts and frame).

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Material

Stainless steel

Guidance for specification option:

Optional.

Polymeric

Recyclability

Parts are recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

Arjo Flusher Disinfector - Ninjo Bedpan Washer

Arjo Flusher Disinfector - Ninjo Bedpan Washer

Arjo Flusher Disinfection and Sluice Room Solution

Arjo Flusher Disinfection and Sluice Room Solution
