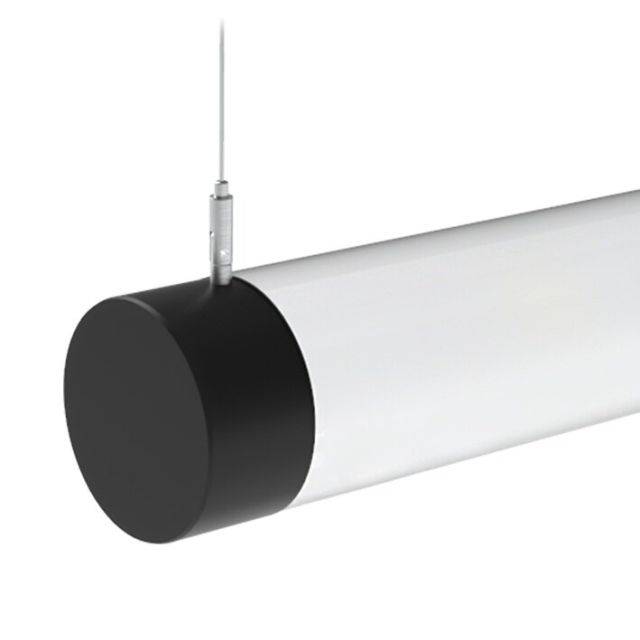

Tubular suspended linear LED feature lighting.
Suitable for breakout spaces, reception areas and public areas.
Suspended industrial style opal tubular feature light.
Features and benefits:
Also available as surface mounted (specified separately).
Injection Moulded End Cap and Aluminium End Caps
Extruded aluminium profile with LEDs
Ten sizes, ranging from 595–2278 mm.
CE UL94 SELV.
Photometrics and GWT850c IP67.
Suspended, opal tubular, linear fitting, omnidirectional lighting.
To BS EN 60598-1, Class I.
Ingress protection (minimum)
To BS EN 60529, IP20.
Suitability for direct mounting on normally flammable surfaces
Not suitable for direct mounting on normally flammable surfaces.
Circumstances of use
Rated maximum ambient temperature
Supply circuit conductor connections
Luminaire power factor
IEC 62031, IEC 62471, IEC 61000-4-2, IEC 32778, IEC 61547, UL 8750, BS/EN 13032:4(2015), IESNA LM79-08.
SELV low voltage 24 V and CE Class 1 EN.
Initial LED luminaire efficacy (minimum)
Direct 11 W/ 1190 lm up to 35 W/ 5330 lm; Direct/ Indirect 10W/ 500 lm up to 29W/ 1750 lm.
Colour rendering index (Ra)
50 000 hours (L80B20).
Tridonic (available in sizes of >1025 mm/ 180° only).
Insert colour requirements.
Suspension cable, 2000 mm.
Nile Suspended - LED
Control gear position
Mode of operation
Duration of emergency mode (minimum)
Satin polycarbonate diffuser.
Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.
Direct/ Indirect upward light output ratio (ULOR)
Direct/ Indirect downward light output ratio (DLOR)
Frame and packaging.
Aluminium and packaging.
