Newton Titan-Pro - Basement Waterproofing Sump Pump System - Cavity Drain Pumping System

Verified by manufacturer 3 months ago

Newton Waterproofing Systems

Specialist pump system for use with Cavity Drain Waterproofing.

Jump to:
BOS
+44 (0)1732 360095 Website

Application

This product is designed to be used with cavity drain waterproofing, Type C cavity drain waterproofing system.

Description

Specialist pump system that can be used with single pumps, twin pumps and twin pumps with twin discharge lines for greater pump efficiency.


The adjustable neck allows for the sump to be installed at a fixed height relative to the slab so that the connection in from the Newton drainage system and the pump discharge line are made above the concrete and always at the same height relative to the slab or raft.


The unique sump shape, together with a choice of inlet and outlet positions, allow for connections in and out of the chamber to be made to either a side wall, or to a corner.


Features and benefits:

  • Manufactured from robust high-density polyethylene (HDPE) and should provide a chamber for the lifetime of the building.
  • Compatible with a large number of Newton NP and CP clean water pumps.
  • Fully built system includes all internal pipe and pipe fittings ready for 50 mm or 63 mm rising main.
  • One-way valve for each pump included.
  • Two quick-release couplings per pump for easy installation and removal for servicing.
  • Adjustable neck ensures that the lid is always at the correct height regardless of floor finishes.
  • Newton High Water Level Alarm included with pump and pipe kits (Codes TP3 - TP47).
  • Supplied with sealed and locked recessed lid. High-end finish lids and frames are available.
  • Flat areas to the side of chamber are ready for wall flanges to receive incoming 110 mm drainage pipes. Wall flanges are available.
  • Large foot to base of chamber to prevent flotation.
  • Anti-drip system available for the inside of the chamber.
  • Wet-install kit available that includes pressure release valves and tremie pipe for installations where water is entering the excavation.


Pump:

The Titan-Pro pumping system can be supplied with single or dual automatic or manual pumps, with single or dual pipe discharge lines.


Manual pumps must be matched to the Newton Pump Controller or Newton Control Panel-Pro.


Automatic pumps are supplied with Vertical Float Switches that allow for very flexible pump switching, allowing for adjustment of the ON and OFF positions of each pump, as well as the overall height of the pump switching. Please consult the manufacturer for further information.

Newton can supply the sump system as a whole or can supply the sump chamber and the fittings required for sump installation, separate to the pumps and High Water Level Alarm.


The internal pipe and fittings are included. External pipe and fittings in either 50 mm or 63 mm can be ordered as required.

General information

Color

White

Finish

Smooth

Material

Stainless steel

Guidance for specification option:

Pumping System for Newton System 500.

Shape

Other

Guidance for specification option:

Unique sump shape.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Guidance for specification option:

Chamber - Guaranteed against deterioration

Uniclass

Pr_70_55_76_62 Packaged pumping stationsPrimary

CAWS

J40/386 Cavity drainage sumps

J40/388 Cavity drainage sumps with integral pumps

R12/135 Private packaged pumping stations and pressure pipeline system

R18/310 Package pumping stations

Product range

Pumps, Pumping Stations and Ancillaries / Pump Systems

Specification data - Packaged pumping stations

Collection tank

-

Configuration

Specified by Newton Specialist Basement Contractor.

Pumps

-

Impeller

Pump dependent.

Non-return valve

Internal pipework includes 50 mm valve.

Connections

-

Inlet diameter

63 mm pipework.

Guidance for specification option:

Code TPK3

Outlet diameter

50 or 63 mm pipework included with the chamber.

Guidance for specification option:

Code TPK8

Product Reference

Newton CP250 (P29)

Guidance for specification option:

250 W manual pump.

Newton CP250 (P31)

Guidance for specification option:

250 W automatic pump with vertical float suitable for ground and surface water.

Newton CP400 (P28)

Guidance for specification option:

400 W manual pump.

Newton CP400 (P32)

Guidance for specification option:

400 W automatic pump with vertical float suitable for ground and surface water.

Newton NP400 (P2/ P3)

Guidance for specification option:

400 W automatic/ manual pump with vertical float suitable for ground and surface water.

Show more

Control panel

Newton Control Panel-Pro (CP2).

Guidance for specification option:

Supplied with a vertical water level float switch and water high alarm float switch.

Newton Control Panel Pro and pre-fitted Newton Dialer (CP7).

Guidance for specification option:

Supplied with a vertical water level float switch and water high alarm float switch.

Newton Pump Controller (CP9).

Guidance for specification option:

Supplied with a vertical water level float switch and water high alarm float switch.

Integral accessories

Newton Dialer (PA5).

Guidance for specification option:

Can send either text or voice messages to up to five designated phones should an alarm condition occur.

Anti-Drip Kit (TPK1).

Anti-Smell Kit (TPK7).

Wall flange for 63 mm inlet (TPO1).

Wall flange for 110 mm inlet (TP02).

Show more

Frame/ lid

Alulite, triple-sealed recessed lid (TPSL7).

Guidance for specification option:

600 x 600 mm, with 450 x 450 mm opening.

Brass edged, recessed lid (TPSL4).

Guidance for specification option:

600 x 600 mm, with 450 x 450 mm opening.

Galvanized steel frame, recessed lid (TPSL2).

Guidance for specification option:

600 x 600 mm, with 450 x 450 mm opening.

Stainless steel edged, recessed lid (TPSL3).

Guidance for specification option:

600 x 600 mm, with 450 x 450 mm opening.

Power converter

MultiPlus 12/800/35 (BB1).

Guidance for specification option:

Battery backup facility for pumps of 150 W and 250 W.

MultiPlus 12/1200/50 (BB2).

Guidance for specification option:

Battery backup facility for pumps of 400 W.

MultiPlus 12/3000.120 (BB3).

Guidance for specification option:

Battery backup facility for pumps of 750 W.

Quattro 12/3000/120 (BB4)

Guidance for specification option:

Battery backup facility for all pumps up to 750 W.

Standby batteries

60 Ah High Efficiency battery (BB20).

101 Ah High Efficiency battery (BB21).

201 Ah High Efficiency battery (BB22).

Alarm:

High Water Level Alarm (PA50).

Guidance for specification option:

Switch not suitable for regular contact with sewage.

Sustainability data

Contains Red List materials

No

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

7

Revit

Revit 2016

8

Literature

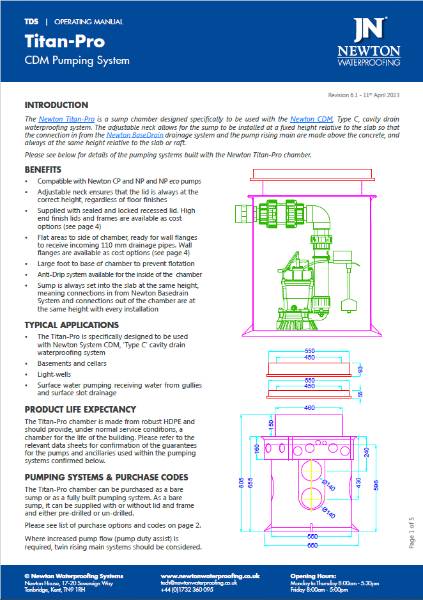

Newton Titan-Pro Pump System TDS
