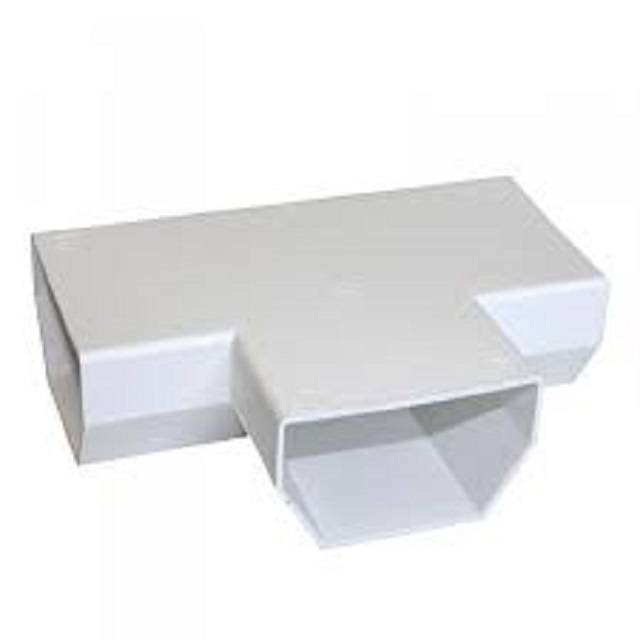

Newton Basedrain T Piece

Application

For use with the Newton System 500 cavity drainage system.

Description

A preformed T-shape channel that helps form a 90° connection to the Floordrain channel from the Basedrain drainage conduit around the perimeter of the area to be waterproofed. It is situated at the base of the wall membrane.

General information

Color

White

Material

PVC-U

Size

50 x 117 x 80 mm

WarrantyDescription

30 years

Uniclass 2015

Pr_65_52_24_28 Floor channelsPrimary

CAWS

J40/290 High density polyethylene/ polypropylene studded cavity drain membrane

J40/382 Cavity drainage channels

J40/47 High density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Floor channels Enhanced data

Body

-

Material

Unplasticized polyvinyl chloride (PVC-U).

Sizes

50 x 115 x 115 mm.

Length

115 mm.

Integral accessories

D22.

Jointing tape

Product Reference

Newton Basedrain T

Piece D7

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

5

2.0
Download now from NBS National BIM Library
