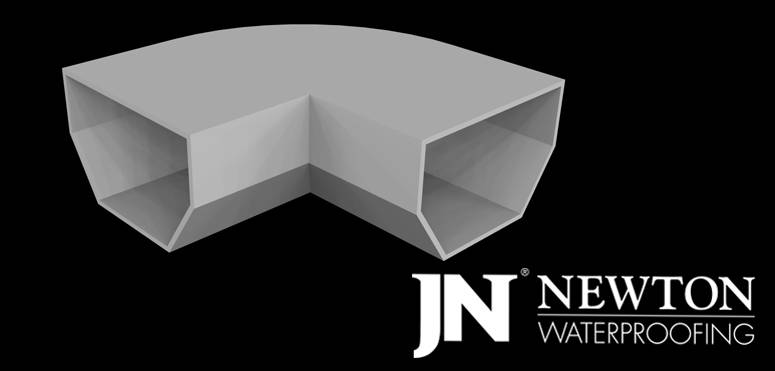

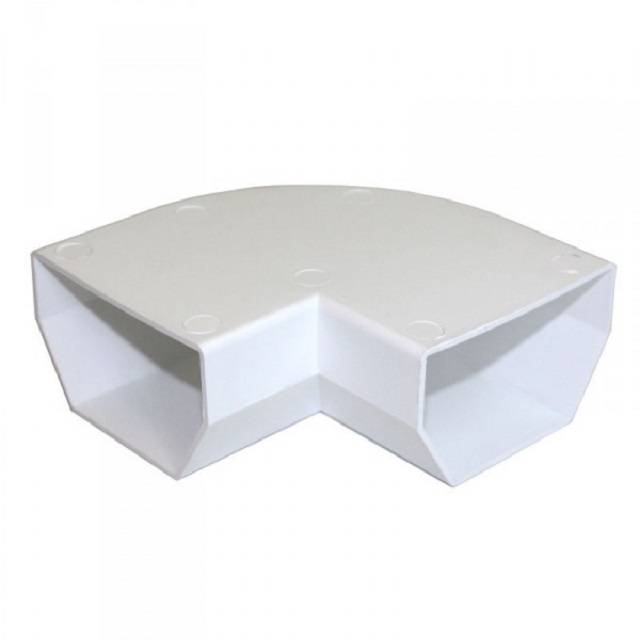

Newton Basedrain Corner

Application

For use at the base of the wall membrane.

Description

A preformed 90° drainage conduit for the perimeter of the area to be waterproofed.

General information

Color

Black

Material

PVC-U

Size

50 x 112 x 80 mm

WarrantyDescription

30 years

Uniclass 2015

Pr_65_52_24_28 Floor channelsPrimary

CAWS

J40/290 High density polyethylene/ polypropylene studded cavity drain membrane

J40/382 Cavity drainage channels

J40/47 High density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Floor channels Enhanced data

Body

-

Material

Unplasticized polyvinyl chloride (PVC-U).

Sizes

50 x 115 x 115 mm.

Length

115 mm.

Integral accessories

D22.

Jointing tape

Product Reference

Newton Basedrain Corner D6 - Drainage Conduit

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

5

2.0
Download now from NBS National BIM Library
