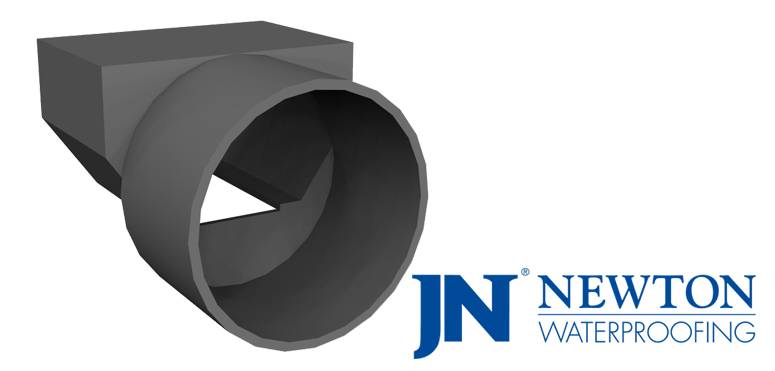

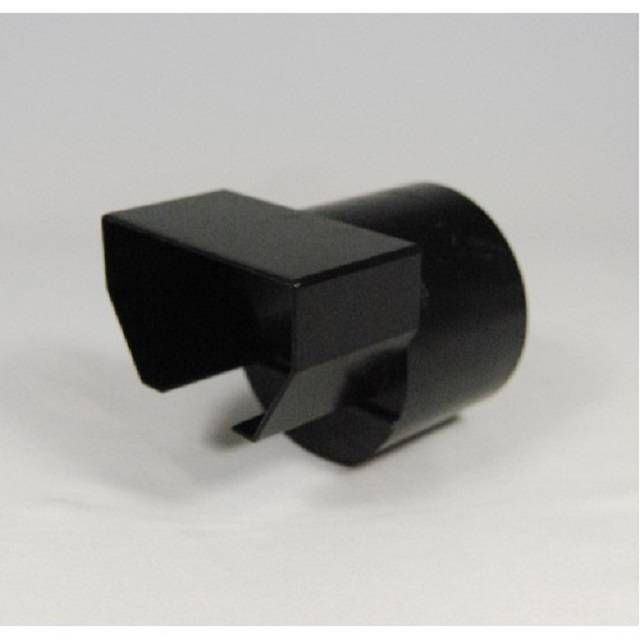

Newton Basedrain Adaptor

Application

For use at the perimeter of the area to be waterproofed. It is situated at the base of the wall membrane.

Description

Adaptor between the Newton Basedrain drainage conduit and the pipe to the sump chamber or drainage.

General information

Color

Black

Material

PVC-U

Size

42 x 90 x 73 mm

WarrantyDescription

30 years

Uniclass 2015

Pr_65_52_24_28 Floor channelsPrimary

CAWS

J40/290 High density polyethylene/ polypropylene studded cavity drain membrane

J40/382 Cavity drainage channels

J40/47 High density polyethylene/ polypropylene studded cavity drain membrane

Specification data - Floor channels Enhanced data

Body

-

Material

Unplasticized polyvinyl chloride (PVC-U).

Sizes

67 x 90 x 73 mm.

Length

90 mm.

Integral accessories

D22.

Jointing tape

Product Reference

Newton Basedrain Adaptor D24

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

5

2.0
