Newton 403 Hydrobond
Description

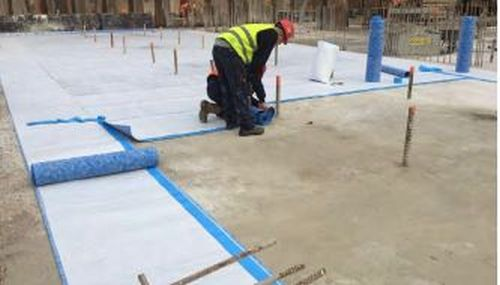

Newton 403 HydroBond is a high performance, self-healing composite sheet available in two variants. When placed below the new raft or against permanent or temporary timber wall formwork, the fibres of the fleece inner core are encapsulated into the concrete, becoming engaged to prevent water tracking. If the waterproof low-density polyethylene (LDPE) layer is punctured, the exposed hydrophilic coating expands, preventing water ingress, and effectively sealing small holes that may be accidentally formed during fixing of the reinforcing steel or the placing and compaction of the concrete.

The membrane provides a complete waterproof envelope to the structure to provide a Type A (barrier) waterproofing solution suitable for grades 1, 2 and 3 as defined by BS 8012: 2009, and can be used as part of the HydroBond System with Newton 108 HydroBond-LM which is sprayed to the exposed walls of the basement after the temporary formwork is removed. Where space is tight, Newton 109-LM can be applied by roller or brush or small airless spray machine.

It can be used in conjunction with other Newton products to provide a co-ordinated and combined approach to the waterproofing of the whole structure that includes protection against water ingress to the deck, through construction joints, through and around service entries and to movement joints.

Consult manufacturer's literature for relevant surface preparation and protection.

Features and benefits:

  • Agrément certificated and National House Building Council (NHBC) accepted waterproofing system.
  • Full mechanical bond to concrete prevents water migration between membrane and structure.
  • Hydrophilic coating provides self-healing of punctures to the membrane.
  • Very flexible - Resistant to movement and fissures in substrates.
  • The HydroBond System completely encapsulates the structure.
  • Excellent resistance to the high alkalinity of concrete.
  • Third-party test certified for radon, carbon dioxide and hydrocarbon gases.
  • Suitable substrates include rafts and slabs (concrete blinding, compacted type 1 hardcore, compacted sand). Void formers, clay heave boards and closed cell flooring grade insulation or Newton 410 Geodrain may be installed before applying 403 Hydrobond.
  • Will provide, under normal service conditions, a durable waterproof barrier for the life of the building to which it is installed.
  • CE marked, and manufactured in accordance with BS EN 13967: 2012.

Applications:

For use as a continuous membrane to permanent raft and wall formwork such as the raft blinding and piled walls of reinforced concrete earth-retained structures, including:

  • Existing structures.
  • Secant or contiguous concrete piles.
  • Metal sheet piles.
  • Diaphragm walls.
  • King post walls.
  • Sufficiently stable ground (such as clay or chalk).
  • Temporary timber shuttering/ formwork.

General information
Material

Composite fleece including LDPE, self-healing polymer, polypropylene backing and aluminium (GB only)

Uniclass 2015
Pr_25_57_08_58 Pitch polymer membranesPrimary
Specification data - Pitch polymer membranes
Product Reference

Newton 403 Hydrobond (HB)

Newton 403 Hydrobond (HBGB)

With additional ground gas resistance in accordance with BS 8485: 2015.

Standard product features

Material:

Composite fleece including LDPE, self-healing polymer, polypropylene backing and aluminium (GB only).

Size (w x l):

  • HB: 1 x 20 m.
  • HBGB: 1.5 x 20 m.

Thickness:

  • HB: 1.6 mm.
  • HBGB: 1.74 mm.

Colour:

  • HB: White/ dark blue (fleece/ outer face).
  • HBGB: White/ light blue (fleece/ outer face).

Technical characteristics:

  • Density: HB: 1.215 g/m²; HBGB: 1.410 g/m².
  • Application temperature: -10 to +40°C.

- Installed performance:

  • Adhesion to concrete: 0.4 N/mm².
  • Service temperature: -10 to +100°C.
  • Elongation at break (to DIN EN 12311-2): Machine direction: HB: 20%; HBGB: 57.4%. Traverse direction: HB: 50%; HBGB: 81.7%.
  • Tensile strength (to BS EN 12311-2): Machine direction: HB: >250 N/50 mm; HBGB: 411 N/50 mm. Traverse direction: HB: >200 N/50 mm; HBGB: 695 N/50 mm.
  • Resistance to static loading (20 kg load, to BS EN 12730): Watertight.
  • Resistance to impact (AI plate/ EPS panel, various drops, to BS EN 12310-1): Watertight.
  • Joint strength (to BS EN 12311-2): HB: >100 N/50mm; HBGB: 409 N/50 mm.
  • Resistance to tearing (nail shank, to BS EN 12310-1): Machine direction: HB: >150 N/50 mm; HBGB: 518 N/50 mm. Cross direction: HB: >150 N/50 mm; HBGB: 470 N/50 mm.
  • Resistance to fire (to BS EN 13501-1): Euroclass E.
  • Water vapour diffusion resistance (BS EN 1931) – Sd value: HB: 68 m; HBGB: 1000 m.
  • Water vapour diffusion resistance (calculated from Sd value): HB: 42 500 µ; HBGB: 57 4713 µ.
  • Water tightness (to BS EN 1928): Watertight.
  • Resistance against chemicals (to BS EN 1847/ BS EN 1928): Watertight.
  • Durability against thermal ageing (to DIN EN 1928/ DIN EN ISO 291-23/50-2): Watertight.
  • Compatibility with bitumen (to BS EN 1928/ DIN EN ISO 291-23/50-2): Watertight.
  • Swelling capacity at 20ºC - Linear (to BS ISO 1817): 28%.
  • Swelling capacity at 20ºC - By volume (to BS ISO 1817): 111%.
  • Swelling capacity at 5ºC - Linear (to BS ISO 1817): 12%.
  • Swelling capacity at 5ºC - By volume (to BS ISO 1817): 39%.
