NBS Source
I'm a manufacturer

Application

For bathroom applications.

Description

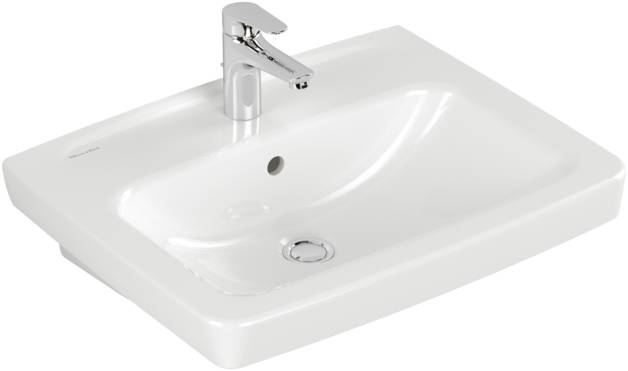

Angular washbasin.


Features and benefits:

  • Sanitary ceramics.
  • Central basin.
  • EAN number: 4062373894071.

General information

Color

White

Material

Ceramic

Shape

Other

Length

470 mm

Width

600 mm

Height

175 mm

Uniclass

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Wall-hung washbasins

Form

Wall-hung wash basin.

Materials

-

Body

Ceramic.

Finish and colour

White alpine, unpolished.

Size

600 x 470 x 175 mm.

Guidance for specification option:

Inner depth 140 mm.

Water supply, overflow and waste holes

-

Water supply

Single tap hole, centred.

Guidance for specification option:

Suitable for 1-hole faucet.

Overflow

Rear overflow hole.

Waste

Bottom waste outlet. No chainstay hole.

Weight

18.5 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

ARCHICAD
-

1

OBJ
-

1

SketchUp
-

1

3Ds Max
-

1
