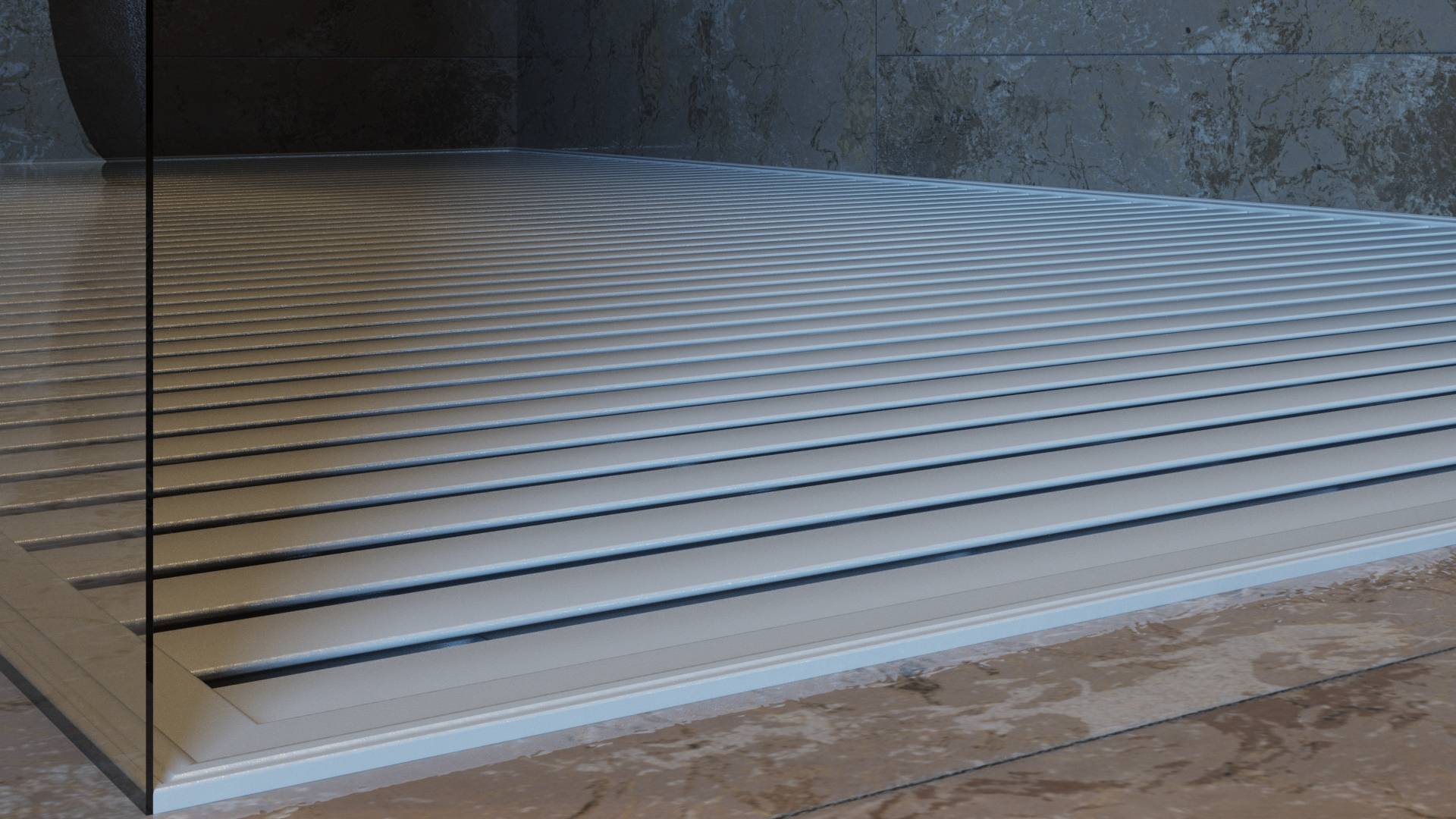

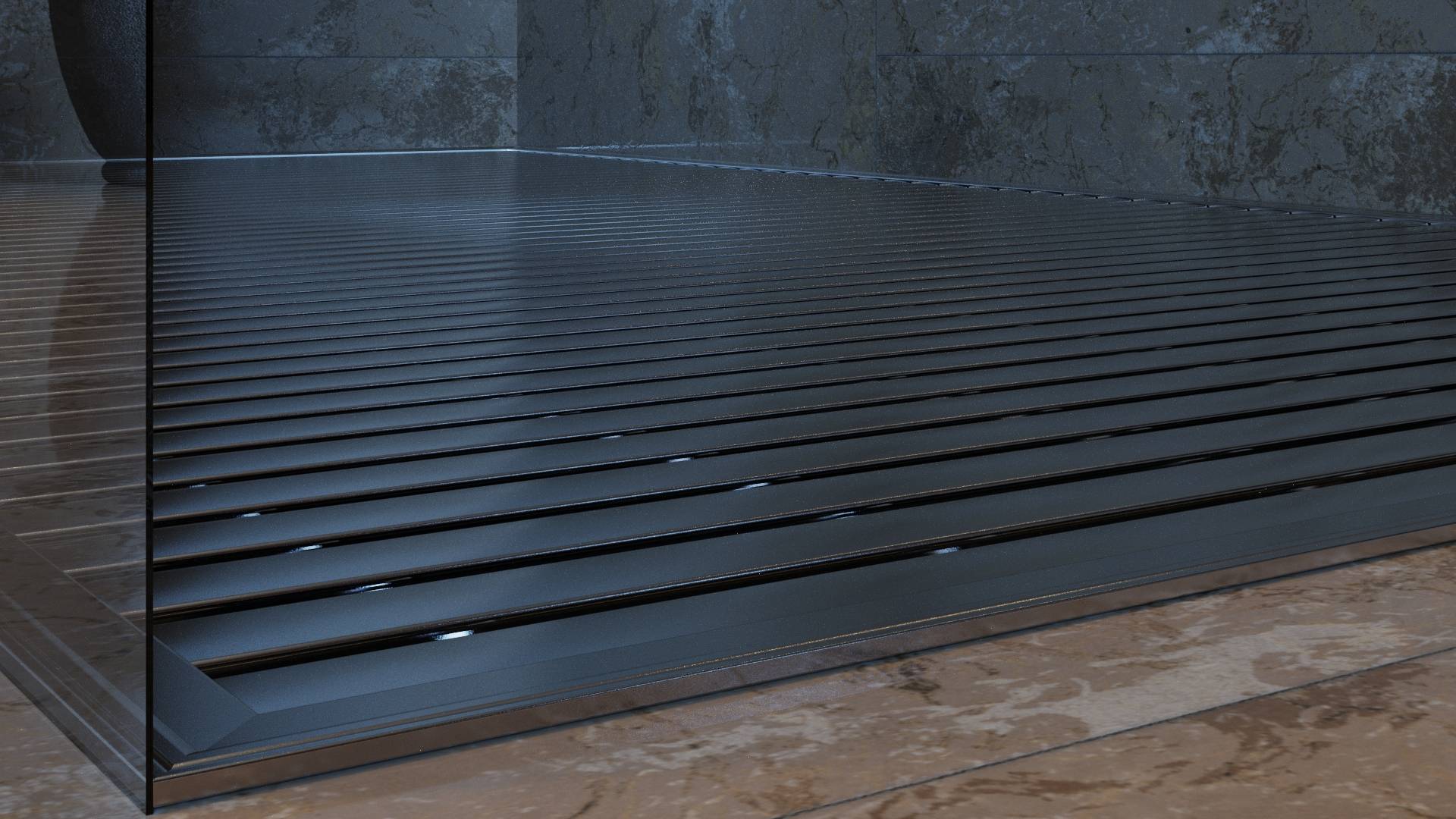

Aluminium level-access shower grille.
Suitable for use in shower areas with solid or timber floors.
Aluminium shower grille providing level-access, no ridges and no gradients, just a completely level showering area with a smooth surface transition which makes it feel like the rest of the bathroom floor. Unlike wet room showers, it doesn't need a slope to assist drainage and it keeps the rest of the bathroom dry. The system can be installed with the option of the Neatseal PVC insert for a completely watertight joint which is much more durable than silicon seals.
It can accommodate high power shower output and is available in a variety of sizes. Available as a grille with tray or grille with frame.
Features and benefits:
Applications:
Suitable for use in shower areas with solid or timber floors.
Finish | Powder coated |
Material | Aluminium alloy |
Uniclass 2015 | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product Reference | Neatdek 3 Level-access Shower Grille With FrameSuitable for solid floors. Neatdek 3 Level-access Shower Grille With TraySuitable for solid and timber floors, 30 mm deep tray. |
Arrangement | Left hand cornerOasisOne sideRight handed cornerThree wall enclosure |
Colour | Anthracite Grey - RAL 7016ChromeMelon Yellow - RAL 1028MetaliquePale Green - RAL 6021Pigeon Blue - RAL 5014Pure White - RAL 9010Sky Blue - RAL 5015Traffic Purple - RAL 4006Traffic Red - RAL 3020Wine Red - RAL 3005Yellow Green - RAL 6018 |
Neatseal PVC Insert | Not requiredRequiredProvides a completely watertight joint. |
Standard product features | Material: Aluminium alloy. Finish: Powder coated. Bar:
Loadbearing capacity (to BS 4592-1): 250 kg (40 stone). Drainage capacity: 25 L/min. |
Product Options | Type: Available in five standard sizes, as both square and rectangular trays. Bespoke sizes also available. Neatseal PVC Insert: PVC inset which is attached to the Neatdek 3 profile and hot seam welded directly to the vinyl sheet flooring, creating a completely secure and highly durable watertight joint. Supplied with mitred corners, Neatseal provides a hard-wearing alternative to silicon seals which have a tendency to perish and shrink over time. |
