NBS Source

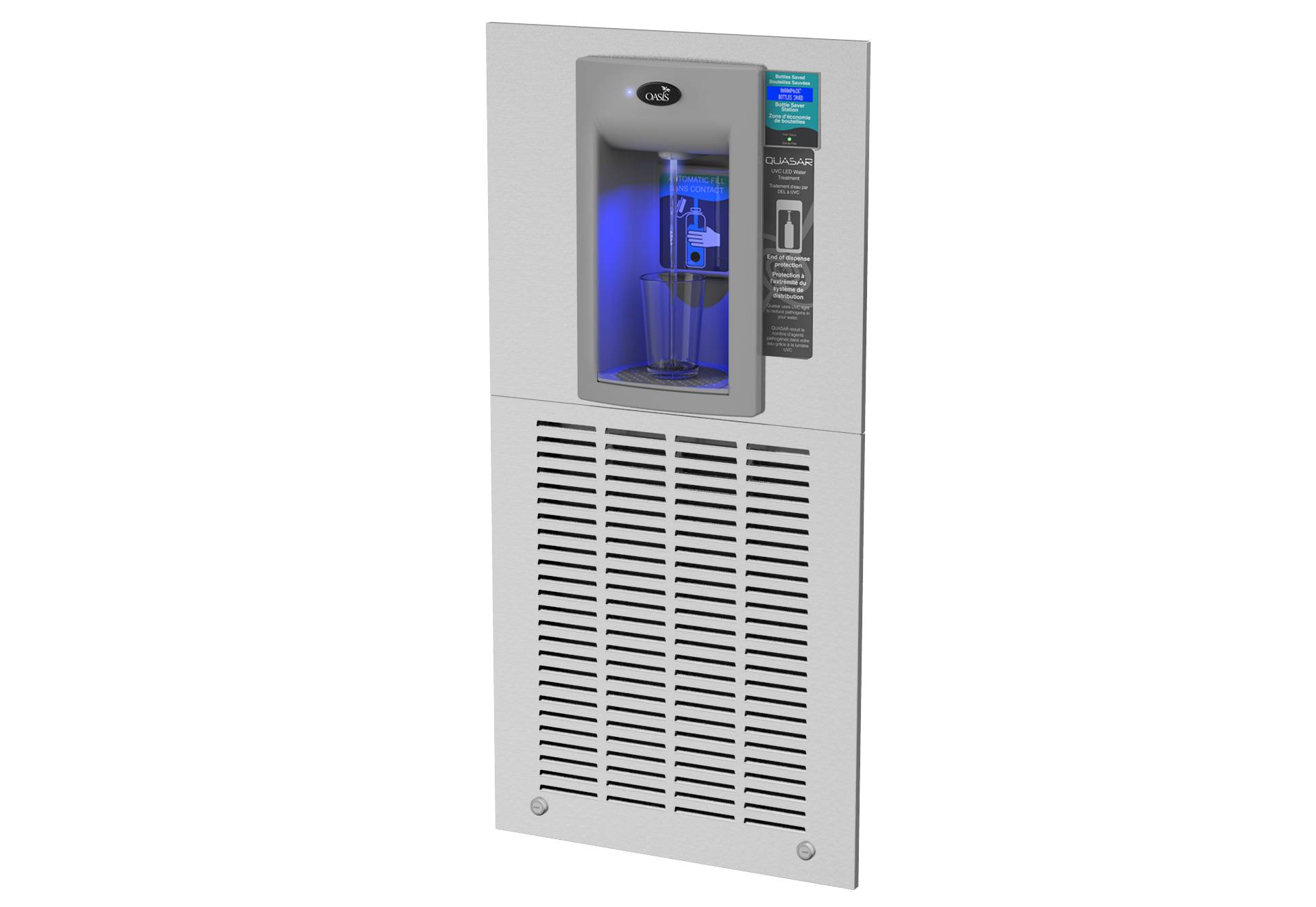

MWEBQ Fully Recessed Hands-Free Bottle Filler With QUASAR UV Out

Application

Suitable for public buildings, gymnasiums, sports complexes, hospitals, schools and offices.

Description

A hands-free bottle filler with QUASAR UV out.


Features and benefits:

  • Non-refrigerated electronic (touch free) fully recessed bottle filler that delivers ambient water.
  • Recessed in design and includes an electronic sensor for touchless activation and a 30-second shut off timer.
  • Features UV Out filtration.
  • Hands-free QUASAR with mercury-free UVC-LED treatment at dispense point.
  • Built-in bottle counter, filter monitor and programmable timeout feature.
  • Large alcove to fit most sports bottles.
  • Energy efficient LEDs illuminate alcove and aid in bottle filling.
  • Built in drain – no drip tray to empty.
  • Built-in 100 micron strainer stops particles before they enter the waterway.
  • Waterways are lead-free.
  • Heavy-duty steel frame.
  • Built in panel locks for easy access to chiller and filtration.

General information

Shape

Rectangle

Color

Silver

Grey

Finish

Brushed

Material

Steel

Size

1035 x 502 x 287 mm

Structural opening.

1016 x 483 x 287 mm

Wall opening. Overhang face 46 mm.

Uniclass

Pr_40_70_15_96 Water coolersPrimary

CAWS

N12/340 Appliances

N12/340 Appliances

N11/40 Appliances

N13/379 Drinking fountains

Specification data - Water coolers Enhanced data

Third party certification

ANSI/NSF 61.

ANSI A117.1.

Arrangement

Non-refrigerated electronic (touch-free) fully recessed bottle filler.

Power supply

7 W.

Net weight

12 kg.

Accessories

None.

Remote chiller.

Green filter.

Installation kit.

Literature

MWEBQ Fully Recessed Hands-Free Bottle Filler With QUASAR UV Out

MWEBQ Fully Recessed Hands-Free Bottle Filler With QUASAR UV Out
