Multipoint Locking System
QA Certificate
Certificate type
Multipoint cylinder locks.

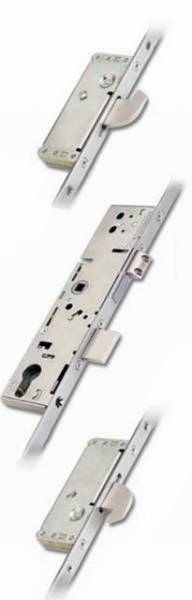

Multipoint locking sets. Face plates have a central lock with latchbolt and deadbolt, and a bolt unit at both the top and bottom with either hookbolt or linear bolt.
Accepts most Europrofile cylinders, which must be ordered separately.
Not suitable for rebated doors.
Uniclass 2015 | |
CAWS | P21/26 Special function door locks P21/530 Special function door locks |
Product Reference | Multipoint Locking System |
Type | 911.50.7802100 x 16 mm front plate, 35 mm backset, hookbolts top and bottom. 911.50.7812250 x 16 mm front plate, 35 mm backset, hookbolts top and bottom. 911.50.7822100 x 16 mm front plate, 45 mm backset, hookbolts top and bottom. 911.50.7832100 x 20 mm front plate, 45 mm backset, hookbolts top and bottom. 911.50.7842250 x 16 mm front plate, 45 mm backset, hookbolts top and bottom. 911.50.7852250 x 20 mm front plate, 45 mm backset, hookbolts top and bottom. 911.50.7862250 x 16 mm front plate, 35 mm backset, linear bolts top and bottom. 911.50.7872250 x 16 mm front plate, 45 mm backset, linear bolts top and bottom. 911.50.7882250 x 20 mm front plate, 45 mm backset, linear bolts top and bottom. As schedule ___ |
Accessories | None911.50.790Mortice cylinder slave unit, 35 mm backset. 911.50.791Mortice cylinder slave unit, 45 mm backset. 911.50.792Adjustable keep for top or bottom bolts. 911.50.793Non-adjustable keep for top or bottom bolts. 911.50.794Adjustable keep for centre bolts. 911.50.795Non-adjustable keep for top or bottom bolts. 911.50.796Cylinder guard for europrofile cylinders. 911.50.797Security shoot bolt. 911.50.798Corner keep for security shoot bolt. 911.50.799Double keep for secuity shoot bolts. As schedule ___ |
Standard product features | Case:
Front plate:
Latchbolt:
Follower:
|
Product Options | Top and bottom bolts: – Hookbolts:
– Linear bolts:
Accessories: Keeps: One centre keep and two bolt keeps required for each multipoint unit. |
- PAS 23/ PAS 24
