NBS Source

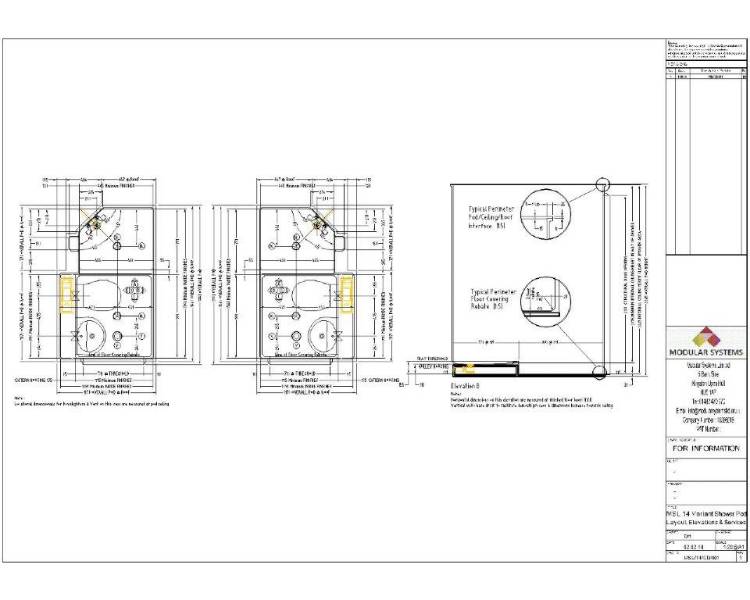

MSL14 GRP Bathroom Pod

Application

For use to create bespoke residential and commercial bathroom spaces.

Description

Composite GRP bathroom pod, 1170 x 1880 mm.


Bespoke finishings and accessories, manufactured to suit project requirements.


Features and benefits:

  • Robust, rigid construction.
  • Leak-free.
  • Antibacterial, fungicidal and chemical resistant properties.
  • Minimal maintenance required.
  • 25 year guarantee.


Construction:

  • Robust fully pattressed structure.
  • Gelcoat internal finish.

General information

Color

Other

Dependent on finish requirement.

White

Finish

Smooth

Material

Resin

Fibreglass

Plywood

Shape

Rectangle

Length

1880 mm

Width

1170 mm

WarrantyDescription

25 year

Uniclass

Pr_20_65_50_10 Bathroom podsPrimary
Ss_20_10_60_50 Modular pod systems

CAWS

B15/130 Light gauge steel frame

B13/110 Modular units

Specification data - Bathroom pods Enhanced data

External size

1170 x 1880 mm.

Frame material

Composite GRP.

Facing material

White gel coat.

Linings

-

Walls

Gelcoat.

Standard.

Tiling.

Optional. Barrington, British Stone, Classic, Core, Kursaal, Marmori, Pietra, Reflections, Step and Traffic designs are available. Consult manufacturer to discuss requirements for your project.

Panelling.

Optional.

Floor

Integrated, fully supported steel base within GRP structure. Finished with a non-slip vinyl.

Skirting and trims

Consult manufacturer for details and insert requirements.

-

Finishings

-

Walls

Solid surface.

Standard and custom sheet sizes available.

Tiling.

Barrington, British Stone, Classic, Core, Kursaal, Marmori, Pietra, Reflections, Step and Traffic designs are available. Consult manufacturer to discuss requirements for your project.

Forbo 179952 - R10 vinyl safety flooring, elephant grey.

Floor

Panelling.

Can be fitted onto low level shower trays or straight to the floor. A wide range of panel sizes and options are available, consult manufacturer for details.

Solid surface.

Standard and custom sheet sizes available.

Tiling.

Barrington, British Stone, Classic, Core, Kursaal, Marmori, Pietra, Reflections, Step and Traffic designs are available. Consult manufacturer to discuss requirements for your project.

Forbo 179952 - R10 vinyl safety flooring, elephant grey.

Skirting and trims

Consult manufacturer for details and insert requirements.

-

Fittings, furnishings and equipment

-

Fittings

Future Fixings, 282.08.200 Hafele Chrome Shelf Bracket.

Services

-

Lighting

Aurora Lighting AU-R6/40 (light fitting and lamp) and AU-R6BZPC (light bezel).

Ventilation

Lincs Electrical KU-378 (extract valve).

Accessories

Waterbury NH49 Chrome Robe Hook.

Toilet roll holder

Waterbury EST20, chrome.

Towel rail bar

Waterbury EST03, chrome 450 mm.

Shower fittings

Roman MOD3B9CS (shower door), Methven KLFCTSEFCP (shower pack), Ideal Standard B1363AA (hose ring), Opella ZB36312DB (shower trap) and Opella E670801 (hair catcher).

ToiletType

Roca A346998000 (toilet pan), Roca A801B2000B (toilet seat) and Thomas Dudley 377193 (cistern).

Wash basin

Roca A32599700U (wash basin), Roca A337992000 (semi-pedestal), Methven ETH113 and FR113-4 (basin mixer and flow regulator), Wolseley 4V816W (bottle trap).

Mirror

McCollins, Silverfloat Mirror Polished Square Edges, Safety Backing 4 Drilled Holes with screws and dome heads 1110 x 850 x 6 mm.

Shelf

McCollins Polished Edged Glass Shelf 530 x 125 x 6 mm.

Cistern

Cistern top: Modular Systems Limited 984 x 184 mm GRP.

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Literature

MSL14 Architect Pack

MSL14 Architect Pack
