MSCP (Car Parks) Continuous Aluminium Brise Soleil / Façade Fin System - Cubic
Verified by manufacturer 2 days ago
75 x 50 mm Rectangle Fin (Cubic)
75 x 50 mm Rectangle Fin (Cubic)
Architectural facade fin system.
Application
- Office facades.
- Schools & Universities
- Offices.
- Car showrooms
- Leisure Centres
- Shopping Centres & Retail Units
- Commercial Buildings.
- Data Centres
- Car Parks (MSCP)
- Hotels
- Hospitals
- Care Homes & Retirement Villages
- Airports
- Museums & Art Galleries
- Inside & outside applications
Description

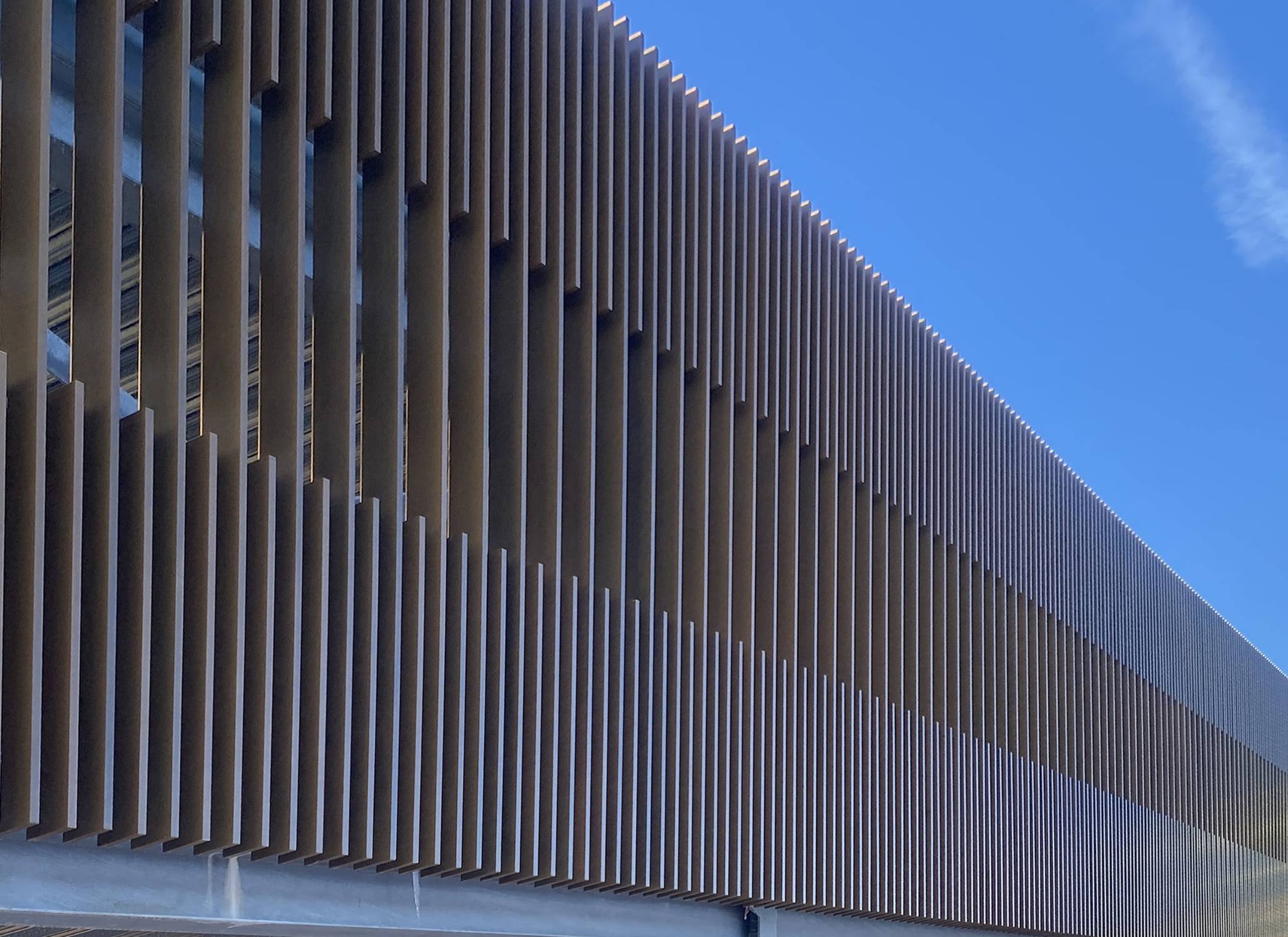

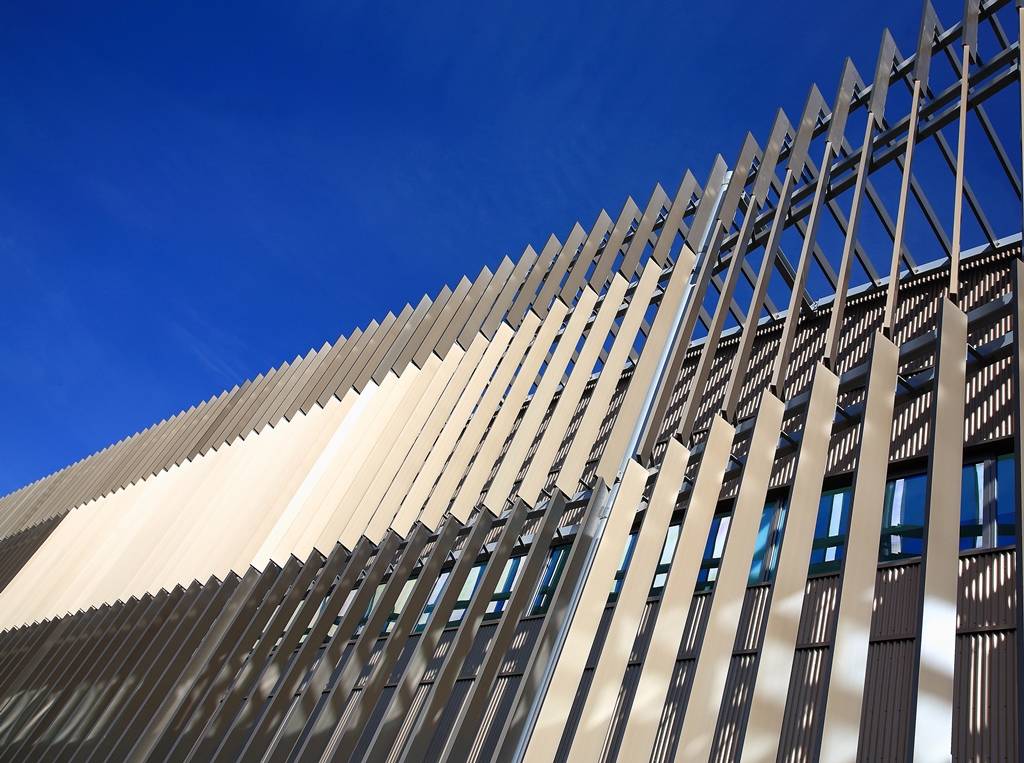

The Architectural Facade Fin system can be supplied in continuous single format either vertically, horizontally or angled to provide an enhanced and decorative facade where ventilation or screening are paramount.
General information
Color | Other Beige Black Blue Bronze |
Finish | Anodized Powder-coated Mill Textured Grained |
Material | Aluminium |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/55 Brises-soleil L10/670 Brises-soleil |
Specification data - Composite brise-soleil units
Classification data | |
Support arms | |
Material | Not required. |
Brace arms | |
Material | Not required. |
Array louvre blades | |
Profile | Rectangular. Manufacturer guidanceRectangle fin as standard or bespoke to suit project requirements. |
Size | 75 x 50 mm. Manufacturer guidanceProfile thickness: 2.0 mm. |
Pitch | Manufacturer guidancePlease see BIM Files for profile size and recommended pitch. |
Material | 6063-T6 extruded aluminium alloy to BS EN 12020. |
Finish | Polyester powder-coated to BS EN 12206-1 to minimum 40 μm. Guidance for specification option: Available in RAL/ BS colours from the standard range. Matt/ gloss/ satin finish. Insert requirements. Anodized to 25 μm to BS 3987. Mill finish. |
Colour | Manufacturer guidanceInsert requirements. |
Front rail | |
Format | Rectangle fin. Bespoke. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class A2-s1,d0 (polyester powder-coated). |
Fasteners | A2 stainless steel. |
Accessories | Not required. Mitred corner panels. Bird Beak Cleats, extruded aluminium, grade 6063. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | The global recycling efficiency rate (RER) of aluminium is currently 76% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAvailable by request in low carbon aluminium billet/ingot maximum 4.0 kg CO2-equivalents per kg of aluminium |
Expected Life | 80 year |
