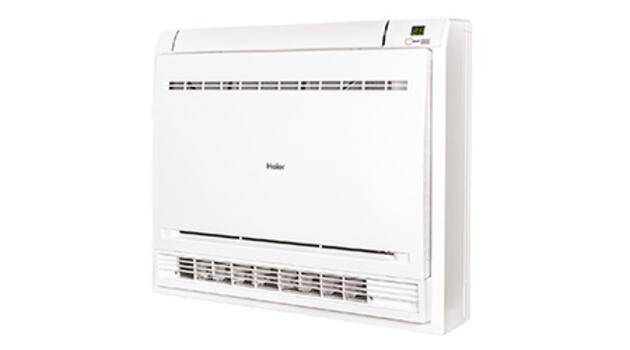

MRV Indoor Unit Floor Console (Exposed Type) Double Flow

Description

Floor Console Exposed Type - Double Flow

AF052MBERA, AF072MBERA, AF092MBERA, AF122MBERA, AF162MBERA, AF182MBERA

Double air delivery, upper and lower.
In heating mode: both outputs are enabled, to spread hot air at floor level preventing "cold feet" effect typical of only higher deliveries. By acting on the on-board selector it is possible to inhibit the lower output in heating mode.
In cooling mode: The unit works only with the top delivery, the lower output automatically closes.
Compact and elegant design
Silent operation
DC inverter fan motor
5 speeds selectable with wired controller YR-El6B and YR-El7. With all other controllers, there are only 3 speeds available.

General information

Features

Double air delivery, upper and lower, In heating mode: both outputs are enabled, to spread hot air at floor level preventing "cold feet" effect typical of only higher deliveries, by acting on the on-board selector it is possible to inhibit the lower output in heating mode, in cooling mode: The unit works only with the top delivery, the lower output automatically closes, compact and elegant design, silent operation, DC inverter fan motor, 5 speeds selectable with wired controller YR-El6B and YR-El7, with all other controllers, there are only 3 speeds available

Size

600 x 700 x 210 mm

WarrantyDescription

2 years warranty

Uniclass 2015

Pr_70_65_03_86 Split coil room air conditioning unitsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
