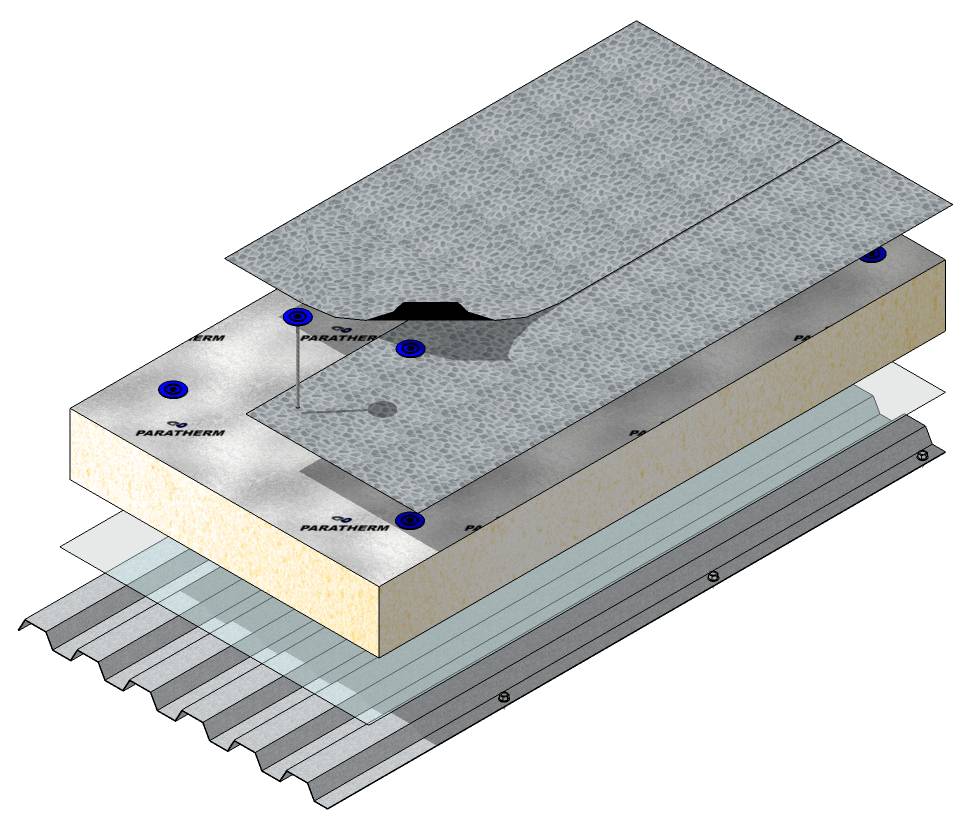

MOY Protan PVC Single Ply Membrane System - Warm Roofing System

Verified by manufacturer 2 months ago

MOY Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

PVC single ply membrane warm roofing systems.

Jump to:
+44 (0)1245 707 449 Website

Application

Protan SE can be used in a warm roof construction over appropriate thermal insulation, such as Paratherm F foil faced polyisocyanurate (PIR) insulation or mineral wool.


Protan EX-A can be used in a warm roof construction over appropriate thermal insulation, such as Paratherm G tissue faced polyisocyanurate (PIR) insulation or mineral wool.


Protan G can be used in a warm ballasted roof construction over appropriate thermal insulation, such as Paratherm polyisocyanurate (PIR) insulation or mineral wool (subject to loadings). Protected with stone ballast, concrete paving or green roofs.


  • Suitable load bearing substrates such as timber, sheet metal or concrete.
  • Suitable for new, and subject to specification, refurbishment applications.



Description

PVC single ply membrane warm roofing systems which include the following membrane options:


Protan SE:

  • Protan SE is a high-quality polyester reinforced thermoplastic waterproofing membrane with high tensile and tear strength.
  • Protan SE contains stabilizers, which makes the product resistant to high and low temperatures, UV-resistant and flame retardant.


Protan EX-A:

  • Protan EX-A roof membrane is a high-quality polyester reinforced thermoplastic waterproofing membrane with high tensile and tear strength. The membrane is supplied with a 180 g/m² polyester fleece strongly laminated to the underside.
  • Protan EX-A membrane contains stabilizers, which makes the product resistant to high and low temperatures, UV-resistant and flame retardant.


Protan G:

  • Protan G in rolls is a high-quality fiberglass reinforced thermoplastic (PVC-P) waterproofing membrane mainly used for flashings, details and cover strips. Protan G is dimensionally stable, has good elongation properties and is well suited for use in both high and low temperatures. The membrane has good resistance to UV, pollution and microbes as well as being root resistant.
  • Protan G membrane contains stabilizers, which makes the product resistant to high and low temperatures, UV-resistant and flame retardant.
  • The membrane is loose laid over suitable substrates and can be used in a warm ballasted roof construction over appropriate thermal insulation, such as Paratherm polyisocyanurate (PIR) insulation or mineral wool (subject to loadings).


British Board of Agrement (BBA) certified, CE marked.

General information

Color

Grey

Light or dark grey.

Material

PVC

Plastic

Length

20000 mm

MOY Protan SE/ MOY Protan EX-A

7500 mm

MOY Protan G 1.5 mm

150000 mm

MOY Protan G 1.5 mm

Width

1000 mm

2000 mm

Warranty description

  • MOY Protan SE and MOY Tube Fasteners: 15 year (1.2mm) / 20 year (1.6mm) / 25 year (1.8mm)


  • MOY Protan EX-A 1.5mm MOY Fleece-backed Membrane Spray Adhesive / MOY FB Membrane Adhesive: 15 / 20 year (1.5 mm)


  • MOY Protan G 1.5mm + MOY VLU 300 Protection Layer + Surface Finish (by others) Loose Laid: 15 year (1.5 mm).

15 year

20 year

25 year

Uniclass

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

Specification data - Single layer sheet warm roof covering systems

Preparation

-

Horizontal work

MOY SA Primer L.

Primer required for self-adhesive products only.

MOY SA Spray Primer.

Primer required for self-adhesive products only.

Not requied.

Skirtings and vertical work

MOY SA Primer L.

Primer required for self-adhesive products only.

MOY SA Spray Primer.

Primer required for self-adhesive products only.

Not required.

Air and vapour control layer

-

Type

AVCL is either loose laid or self adhesive (SA).

For bonded insulation a self-adhesive AVCL should be specified.

For high humidity buildings (>Class 3 to BS 5250) a foil lined or foil faced product should be used.

MOY PE AVCL.

Loose laid and only suitable when the insulation is mechanically fixed.

MOY Sticker Sanded 3 mm.

MOY Sticker Sanded AL (Foilcore).

MOY Sticker Helast VB 500 SA.

MOY Elotene DSN SA.

Attachment

Loose laid.

Self adhesive (SA).

Insulation

-

Type

MOY Paratherm F PIR insulation, tapered.

Insert requirements including required fall:

  • Board size: 1200 x 2400 mm, thicknesses: 25–150 mm.


Paratherm F™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board, offering a low thermal conductivity of 0.022 W/m·K.

It is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture.

MOY Paratherm F PIR insulation, uniform.

Insert requirements:

  • Board size: 1200 x 2400 mm, thicknesses: 25–150 mm.


Paratherm F™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board, offering a low thermal conductivity of 0.022 W/m·K.

It is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture.

MOY Hardrock Multi-Fix DD, tapered.

Consult manufacturer for details and insert requirements including required fall.

MOY Hardrock Multi-Fix DD, uniform.

Consult manufacturer for details and insert requirements.

MOY Paratherm G PIR insulation, tapered.

Consult manufacturer for details and insert requirements including required fall.

Board sizes (l x w x t):

  •  1200 x 600 x 25 mm.
  • 1200 x 1200 x 50–150 mm.
  • 1200 x 2400 x 100–150 mm.


Paratherm G™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board and is suitable with MOY’s fully adhered single ply, partially bonded built-up felt and cold liquid applied waterproofing (with carrier membrane) systems.

MOY Paratherm G PIR insulation, uniform.

Consult manufacturer for details and insert requirements.

Board sizes (l x w x t):

  •  1200 x 600 x 25 mm.
  • 1200 x 1200 x 50–150 mm.
  • 1200 x 2400 x 100–150 mm.


Paratherm G™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board and is suitable with MOY’s fully adhered single ply, partially bonded built-up felt and cold liquid applied waterproofing (with carrier membrane) systems.

Attachment

MOY PU insulation adhesive.

MOY PU spray-applied insulation adhesive.

MOY tube fasteners.

Loose laid.

Loose Laid if ballasted immediately (Paratherm G or Paratherm F).

Waterproof covering

-

Type

MOY Protan EX-A 1.5 mm.

MOY Protan G 1.5 mm.

MOY Protan SE 1.2 mm.

MOY Protan SE 1.6 mm

MOY Protan SE 1.8 mm

Attachment

MOY Tube Fasteners.

For MOY Protan SE 1.2 mm / 1.6 mm / 1.8 mm.

MOY Fleece-backed Membrane Spray Adhesive.

For MOY Protan EX-A 1.5 mm.

MOY FB Membrane Adhesive.

For MOY Protan EX-A 1.5 mm.

Loose Laid.

For MOY Protan G 1.5 mm.

Upper protection layer

MOY VLU 300 Protection Layer.

To be used with MOY Protan G 1.5 mm only.

Surface protection

For MOY Protan G 1.5 mm only: Suitable ballast finish (by others) - 50 mm thick concrete paving / 50 mm thick 20-40 mm rounded stone ballast / green roof.


-

System accessories

Consult manufacturer for details and insert further requirements as necessary.

Walkways.

MOY RWOs.

MOY (PVC) laminated metal trims.

Termination bars.

Mechanical fixings.

Pre-formed corners.

Omega profiles.

MOYLITE rooflight(s).

Sustainability data

Contains Red List materials

Yes

Country of material origin

Norway

Country of product manufacture

Norway

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

Guidance:

Synthetics generally: 120 MJ/kg (University of Bath)

-

Recyclability

The by-products of the manufacturing process could be recycled internally.

Where membranes have become contaminated by external agents during service, they may be downcycled into other products or utilised in roof overlays.

Recycled content

6 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Protan SE BBA 98/3459

BBA Agrément Certificate

BBA Agrément Certificate

Protan G/EX-A BBA 00/3755
