MOY Paratherm T™ PIR Insulation - Flat Roofing Insulation Board
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
High performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board.
Application
- Flat roofs.
- Suitable with MOY’s partially bonded torch applied multi-layer bituminous waterproofing systems.
- Particularly suitable for new build and refurbishment.
Description
Paratherm T™ is a high performance rigid thermoset polyisocyanurate (PIR) flat roofing insulation board and is suitable with MOY’s partially bonded torch applied multi-layer bituminous waterproofing systems.
The upper facing is bitumen coated glass tissue finished with a thermofusible polypropylene fleece, autohesively bonded to the insulation core during manufacture. The lower facing is mineralised glass tissue autohesively bonded to the insulation core during manufacture.
Features and benefits:
- High performance rigid thermoset insulation.
- Amongst the more thermally efficient insulation products for flat roofs.
- Manufactured with a blowing agent that has zero ODP and low GWP.
- Fully compatible with MOY bitumen based waterproofing systems.
- Compatible with MOY bitumen green roof systems.
- Resistant to the passage of water vapour.
- Easy to handle and install.
- Also available as a tapered insulation system, to create the fall in the roof (Paratherm T™ Tapered).
General information
Color | Other |
Material | Polyisocyanurate (PIR) |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 30 mm Guidance for specification option: Minimum. 145 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Thicknesses 30–145 mm. |
Warranty description | Manufacturer guidanceFor the duration of the MOY System Warranty. |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J42/10 Warm deck roof covering J42/110 Warm deck roof covering J21/420 Rigid urethane foam insulation J31/24 Rigid urethane foam insulation |
Specification data - Polyisocyanurate (PIR) insulation
Form | Board. |
Thermal conductivity | 0.027 W/mK (insulant thickness <80 mm); 0.025 W/mK (insulant thickness 80–119 mm); 0.024 W/mK (insulant thickness ≥120 mm). |
Finish | Faced.Guidance for specification option:
|
Fire performance | Manufacturer guidance
|
Insulation thickness | 30–140 mm.Guidance for specification option: Consult manufacturer and insert requirements. |
Board size | 1200 x 600 mm. |
Weight | Approx. 4.39 kg/m² at 100 mm thick. |
CompressiveStrength | Typically exceeds 150 kPa at 10% compression. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 7.27 kg CO₂ eq/kg Self declared Manufacturer guidance1 m² of insulation at a thickness that gives an R-value of 2.667 m².K/W (72mm) gives a GWP of 7.27 kg CO2 equivalent in Life cycle stages A1 - A3 (Raw material supply, transport and manufacturing). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0.84 % |
Third party certifications
Literature

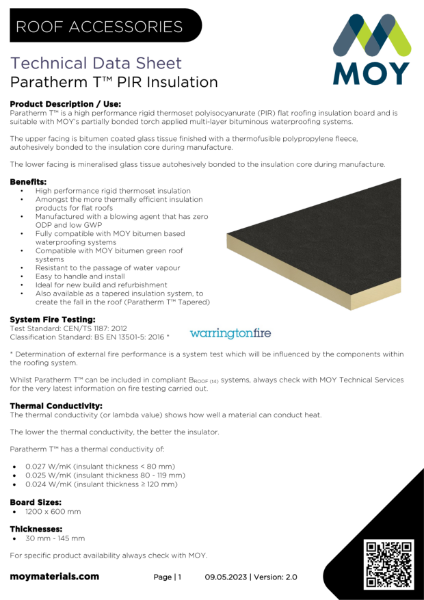

MOY Paratherm T™ PIR Insulation

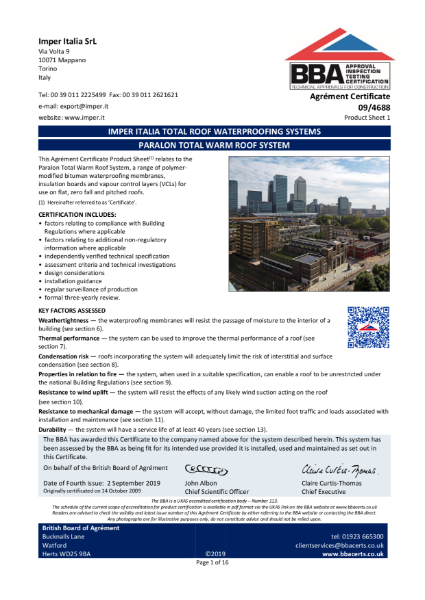

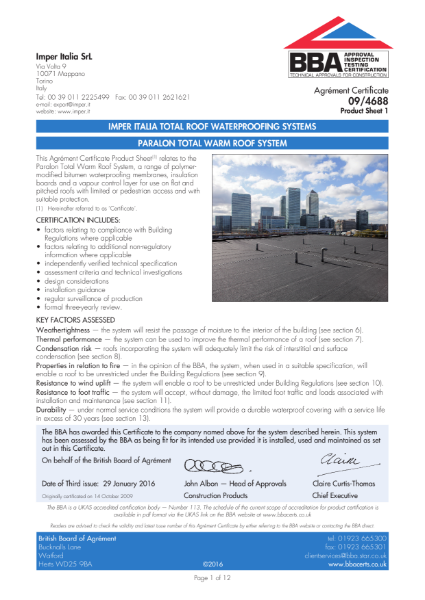

09/4688 Paralon Total Warm Roof System

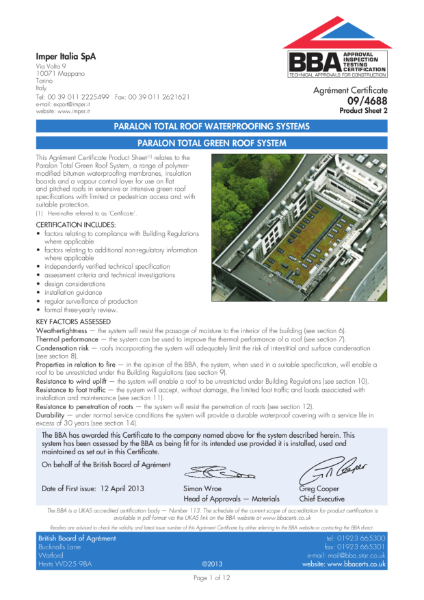

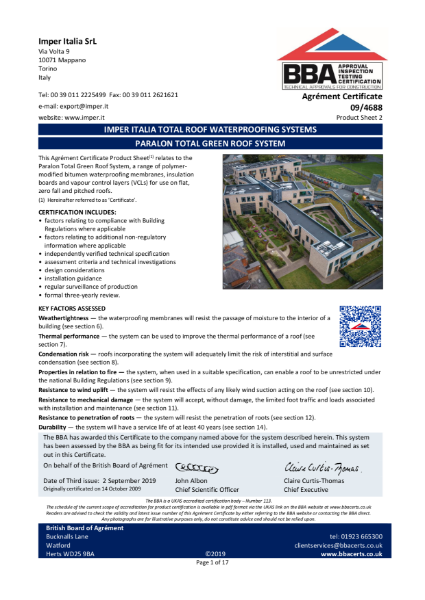

09/4688_1 Paralon Total Green Proof System
