product no longer available -

Description

Track-guided partition systems for projects requiring spatial separation with sound insulation. Three systems are offered:

– Smart Line:

  • Design: Simple, uncomplicated, practical.
  • Sound insulation: Low.
  • Layout configurations: Simple.
  • Elements: Standard.
  • Surface functions: No additional functions.

– Business Line:

  • Design: Professional appearance, functional.
  • Sound insulation: Medium–high; suitable for offices.
  • Layout configurations: Special layout/ parking/ stacking positions possible.
  • Elements: Special properties, e.g. pass doors can be accommodated.
  • Surface functions: Additional functions, e.g. writing surfaces, projection surfaces.

– Design Line:

  • Design: Elegant, prestigious.
  • Sound insulation: High; suitable for concurrent events.
  • Layout configurations: Special layout/ parking/ stacking positions possible.
  • Elements: Special properties, e.g. pass doors can be accommodated.
  • Surface functions: Additional functions, e.g. writing surfaces, projection surfaces.

General information
Specification data
Product Reference

MOVEO Smart Line

MOVEO Business Line

MOVEO Design Line

System clear height

___ mm

2000–9000 mm.

Elements -
Type

Fullwall

Telescopic

Corner

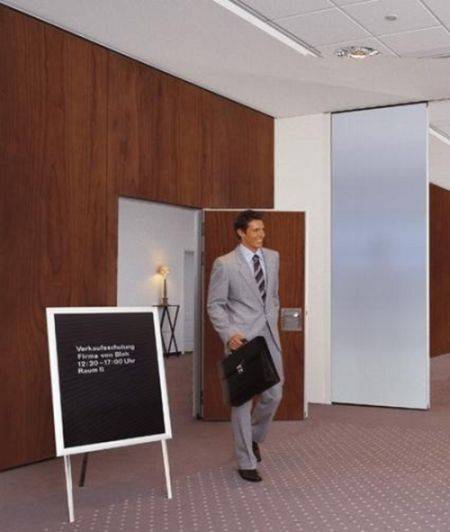

Pass door; clear passage height ___ mm; clear passage width ___ mm

Double pass door; clear passage height ___ mm; clear passage width ___ mm

Width

___ mm

600–1250 mm.

Surface finish

See options.

Edging

Protective encasement edging (U)

Standard.

Visible surface edging (K)

Optional.

Track

K-type

R-type

Stacking arrangement

PL1, inboard; single point suspension, 90° to partition axis

PL2, inboard; two point suspension, 90° to partition axis

PL3, inboard; two point suspension, parallel to partition axis

PL4, outboard; two point suspension, 90° to partition axis; ___ stacks

Insert number of stacks.

PL5, outboard; two point suspension, 90° to partition axis; niche parking with compartment door

PL6, outboard; two point suspension, 90° to partition axis; parking in a row

Standard product features

Elements:

  • Construction: Sealed, lightweight, sandwich composite with acoustic foam core.
  • Thickness: 100 mm.
  • Interconnection: Convex/ concave aluminium profiles with sealing lips.
  • Operation: ComforTronic electronically controlled extension and retraction of sealing strips.

Sound insulation Rw to EN 20140:

  • Smart Line: 37 dB.
  • Business Line: 47 dB (55 dB optional).
  • Design Line: 55 dB.

Product Options

Surface finish:

Three surface finish collections are offered:

– Classic collection (not available for Design Line system): High quality, impact and scratch resistant decorative finishes:

  • Solid colours: Aluminium light, Beige, Black, Burgundy, Cream I, Cream II, Pastel blue, Pearl grey I, Pearl grey II, Polar white, Terracotta, White 120 gram.
  • Wood reproductions: Birch, Dark cherry, Light oak, Maple, Planked beech, Wenge.

– Design collection:

  • Wood veneers: American ash, American cherry, American oak, American Walnut, Birch, Birdseye maple, Canadian maple, European cherry, European maple, French walnut, Macore, Mahogany, Steamed beech, Swiss pear, Wenge.
  • Metal décors: Aluminium décor, Stainless steel décor.
  • Sheet steel, painted: RAL colour range.

– Functional collection (not available for Smart Line system):

  • Magnetic – suitable for writing on with chalk: Magnetic black, Magnetic green.
  • Magnetic – suitable for writing on with marker pen: Magnetic grey, Magnetic white.
  • Projection surfaces: Magnetic grey, Magnetic white.
  • Plain surface suitable for painting and wallpapering.

Track:

  • K-type: Compact track system; mechanically coded junction technology, with curves and switches for easy operation; suitable for weights up to 250 kg per element; elements automatically guided into position; curved configurations possible.
  • R-type: Track system for right-angled configurations, with cross-roller carriers for maximum layout variability; suitable for weights up to 500 kg per element.

Stacking arrangement:

Consult DORMA UK for special stacking arrangements.
