Morley-IAS PLUS 1 / 2 Loop Analogue Addressable Fire Alarm Control Panel - 1 / 2 Loop Fire Alarm Panel

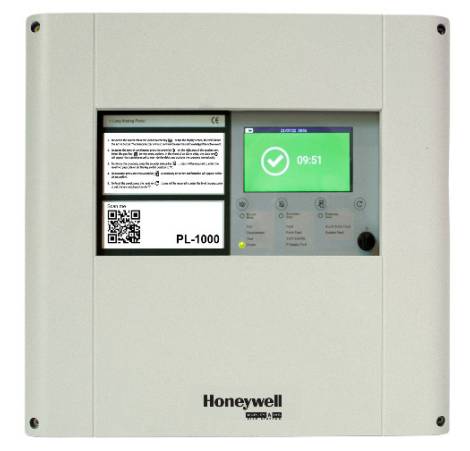

PL-1000 control panel includes Honeywell's Advanced (AP) protocol which maximises the speed and efficiency of alarm detection, as well as providing maximum information to the installer. The 4.3" (480 x 272 pixel) touchscreen provides an intuitive user interface via its menus with quick and easy system operation. The PL-1000 control panel allows full system configuration from the screen itself.

The PL-1000 is a single loop addressable panel expandable to two loops with an optional loop card (PL-LIB01S). Each loop supports 159 detectors and 159 input / output modules.

The analogue addressable PL-1000 is designed for small to medium sized installations. The PL-1000 is very easy to install and configure. The system is designed to manage both traditional wired field devices and Agile™ wireless equipment. Installation and commissioning time is reduced to a minimum since the user interface allows, in few steps, to commission and test field devices.

Due to its size and power, it is the ideal analogue addressable control panel for small to medium sites where maximum information is required from the installed devices. The control panel allows the identification of each of the intelligent sensors in order to verify the state of the system before carrying out any evacuation or transmission to the alarm receiving station, or to the building management system.

Features and benefits:

• 4.3" / 109.2 cm touchscreen graphical color display, 480 x 272 pixel resolution with back illumination and back-lit membrane buttons.
• Multiple language selections.
• Intuitive colour event indication tab for an overview of system status at a glance.
• Simple DOT Matrix cause and effect rule builder.
• Quick configuration of the unit from the same display.
• On-screen 16 virtual zonal LED indicators with event colour coding to increase situational awareness.
• Single loop, expandable to two loops. 318 addresses per loop (159 detector + 159 Modules).
• Certified to EN 54-2, EN 54-4; EN 54-13; LVD 62.368- 1:2014+A11.
• Morley-IAS Advanced Protocol and enhanced Agile™ wireless features, including on-screen device battery and signal strengths.
• Includes serial communication ports for TPP, including the integration of Honeywell's Connected Life Safety Services (CLSS) cloud-based platform (coming soon).
