MonoFlat LIN-X450
Flush door hinges.
For internal doors. Suitable for:

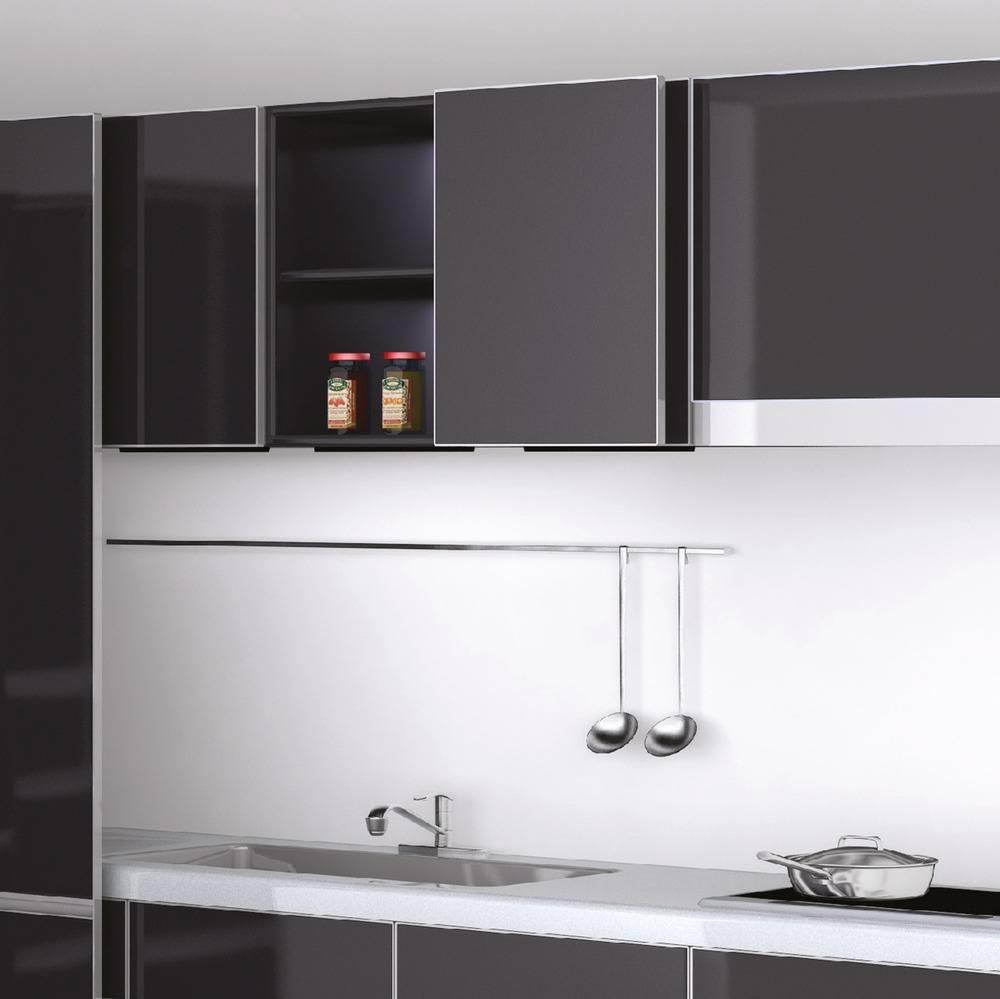

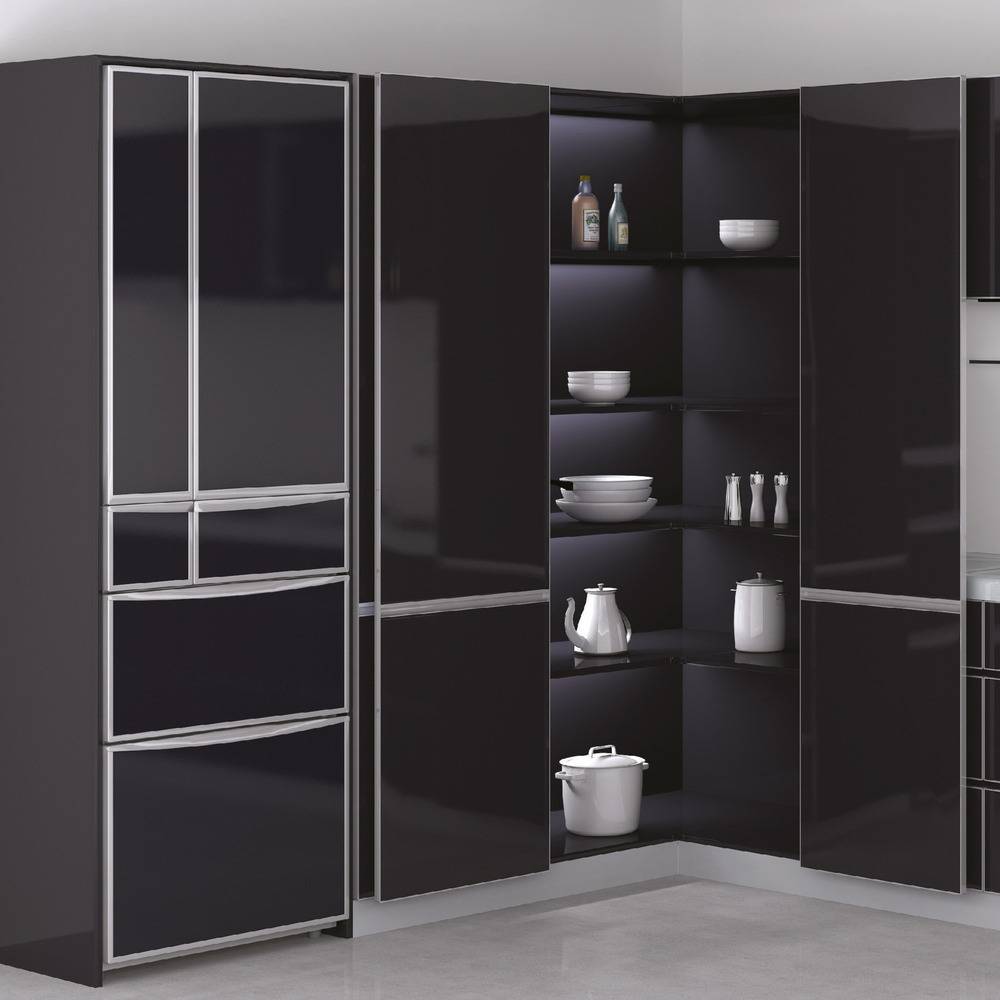

The MonoFlat Lin-X range is a groundbreaking lateral opening hinge that opens doors sideways without the need for a rail or track. Using multiple pivot points, this flush lateral door hinge brings a cabinet door out and across, avoiding the usual opening arc of a conventional hinge. This makes it a particularly suitable option when space is tight, or where access needs to be maximised. Once open, Lin-X hinges also tuck cabinet doors neatly against an adjacent surface for a neat, tidy look.
Lin-X hinges are easy to mount and completely concealed when the door is closed. They are also fitted with Sugatsune’s patented Lapcon dampers to provide soft, controlled opening and closing.
Features and benefits:
Variants
MonoFlat LIN-X450:
Door width 400 ~ 500 mm.
Door height 600 ~ 2400 mm.
Door thickness 15 ~ 24 mm.
Door weight MAX 17 kg (per door).
Overlay: 19mm.
MonoFlat LIN-X800:
Door width 750 ~ 850 mm.
Door height 600 ~ 2400 mm.
Door thickness 24 ~ 40 mm.
Door weight MAX 40 kg (per door).
MonoFlat LIN-X800H:
Door width 750 ~ 850 mm.
Door height 600 ~ 2980 mm.
Door thickness 24 ~ 40 mm.
Door weight MAX 40 kg (per door).
MonoFlat LIN-X1000:
Door width 750 ~ 1100 mm.
Door height 600 ~ 2980 mm.
Door thickness 24 ~ 40 mm.
Door weight MAX 90 kg (per door).
Color | Black White |
Finish | Matt Anodized |
Material | Steel Aluminium Zinc Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | P21/8 Door hinges P21/320 Door hinges |
Form | Lateral arm swing hinges with damper.Lateral arm swing hinges without damper.Manufacturer guidanceScrews, hole cover and mounting plate included as standard. |
Size | 264 x 68 mm.Guidance for specification option: Per hinge. Connecting bar length varies depending on door height (see Cabinet door guidance for details). |
Material and finish | Steel (nickel finish)/ aluminium alloy (anodized finish)/ polyacetal. |
Colour | Silver/ grey.Guidance for specification option: Metal components: Silver. Polyacetal components: Grey. |
Purpose | Suitable for doors 400–500 mm wide, 15–24 mm thick. Guidance for specification option: Able to accommodate height up to 2400 mm/ 17 kg with additional arms - see Cabinet door options below for height and weight limits. Manufacturer guidanceSuitable door size. |
Cabinet door | 600–900 mm high/ up to 7 kg. Guidance for specification option: Standard kit. 901–1200 mm high/ up to 14 kg. Guidance for specification option: Tall/ heavy door kit; includes 840 mm connecting bar with end caps. 1201–1500 mm high/ up to 17 kg. Guidance for specification option: Tall/ heavy door kit; includes 1140 mm connecting bar with end caps. 1501–1800 mm high/ up to 17 kg. Guidance for specification option: Tall/ heavy door kit; includes 1440 mm connecting bar with end caps. 1801–2100 mm high/ up to 17 kg. Guidance for specification option: Tall/ heavy door kit; includes 1740 mm connecting bar with end caps. Manufacturer guidanceTall/ heavy doors (over 900 mm high):
|
Contains Red List materials | No |
Country of material origin | Japan |
Country of product manufacture | Japan |
