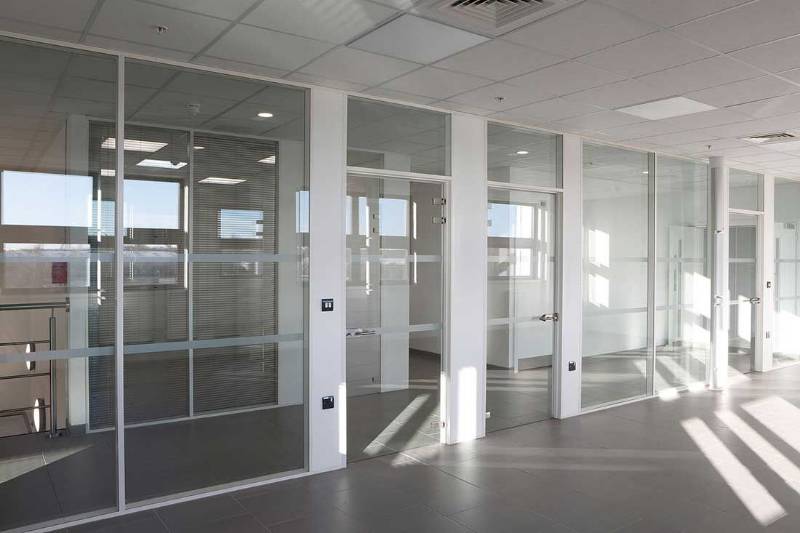

MONO Modular Partitioning System - Single Board

Name: MONO Modular Partitioning System - Single Board
Brand: Planet
SKU: 3Eg5d6Svwmn7WmAmrPoiBS

Verified by manufacturer 21 days ago

Planet

Modular 100 mm wide frame partitioning, used to form runs of solid panel elevations.

Jump to:

BOS

+44 (0)1444 247933 Website

Application

All sectors: Commercial: Education; Healthcare; MoD; Airport & rail; Industrial; Hospitality; Residential & public.

Consult manufacturer for further details.

Description

Modular 100 mm wide frame partitioning, used to form runs of solid panel elevations.

Features and benefits:

Flexibility, with simple adaptations enabling screens to be changed from glazed to solid, or vice versa.
Compatible with the full range of Planet Partitioning deflection heads; ±15, ±25 and ±40 mm, removing the need to deal with awkward detail junctions between a dry wall, cross wall and a glazed room frontage.
Also available in a double board format, combining glazed and solid panels (specified separately).

Please note that acoustic, fire rated and structural certification and support for Planet products and systems is available on a project-specific basis. Please contact the specification team directly for further information.

General information

Color	Other Guidance for specification option: Polyester powder-coated or anodized. Silver Guidance for specification option: Polished and linished.
Finish	Anodized Guidance for specification option: Etched and anodized. Powder-coated Polished
Material	Aluminium Guidance for specification option: 6063 T6. Glass
Shape	Rectangle Other Manufacturer guidance To suit project requirements; consult manufacturer for further details.
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Dealt with on a project specific basis as part of the O&M process; consult manufacturer for details.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary Ss_25_12_65_65 Panel partition systems
CAWS	K30/130 Relocatable partition system K30/10 Relocatable partition system

Specification data - Partition panels

Third-party certification	ISO 9001-UKAS (Quality); ISO 14001-UKAS (Environmental); Constructionline-Gold; Acclaim (SIPP); Achilles (Building confidence, SIPP); EPD - material accreditation & compliance; FIS Member; Considerate Construction; FORS Bronze; Build Profile. Guidance for specification option: EPD - material accreditation & compliance: Consult manufacturer for details (glass, PPC, aluminium, timber, ironmongery, waste, adhesive and more).
Unit size	-
Thickness	100 mm.
Partition height (nominal)	- Manufacturer guidance Insert requirements. For partitions over 3000 mm high, consult with manufacturer.
Width (nominal)	- Manufacturer guidance Insert requirements. For partitions over 1200 mm wide, consult with manufacturer.
Deflection allowance (maximum)	-
Head	No deflection; 27 mm-deep x 100 mm-wide channel. ±15 mm deflection; 60 mm-deep x 100 mm-wide channel. ±25 mm deflection; 90 mm-deep x 100 mm-wide channel. ±40 mm deflection; 146 mm-deep x 100 mm-wide channel.
Floor	- Manufacturer guidance Consult with manufacturer for system weight.
Verticals	27 mm-deep x 100 mm-wide channel.
Panel partition type	Plasterboard system.
Framing, fixing points and joints	27 mm-deep x 100 mm-wide base/ abutment tracks. Guidance for specification option: Corners: Extruded profile 27 mm outer face.
Solid panels	-
Type	One layer of 12.5 mm plasterboard (per side). One layer of steel faced 9 mm plasterboard (per side). One layer of 12 mm timber veneered board (per side). One layer of 12.5 mm plasterboard, faced with magnetic white board film. One layer of 12.5 mm plasterboard, faced with vinyl. Manufacturer guidance Note that finishes can vary per side and per module.
Finish and colour	Polyester powder-coated, RAL. Guidance for specification option: Steel-faced panels types only; insert requirements. Polished and chemically brightened. Guidance for specification option: Steel-faced panels types only; insert requirements. Linished and chemically brightened. Guidance for specification option: Steel-faced panels types only; insert requirements. Etched and anodized. Guidance for specification option: Steel-faced panels types only; insert requirements. Timber veneer type, finish and matching. Guidance for specification option: Timber veneer-faced panels types only; insert requirements. Vinyl finish. colour. Guidance for specification option: Vinyl-faced panels types only; insert requirements.
Joint treatment	-
Type	Extruded profiles, mullion: 31 mm across face, transom: 27 mm across face.
Finish and colour	To match solid panels. Polyester powder-coated, RAL. Guidance for specification option: Insert colour requirement. Polished and chemically brightened. Linished and chemically brightened. Etched and anodized. Guidance for specification option: Insert requirement.
Glazed panels	-
Type	n/a. Guidance for specification option: For combinations of solid and glazed panels, specify M100 Double Board system.
Door arrangement	-
Type	IsoClear frameless leaf in door frame, single leaf, single action. IsoClear frameless leaf in door frame, unequal leaves, single action. IsoClear frameless leaf in door frame, double leaves, single action. IsoTec micro framed leaf in door frame, single leaf, single action. IsoTec micro framed leaf in door frame, unequal leaves, single action. IsoTec micro framed leaf in door frame, double leaves, single action. IsoPro framed leaf in door frame, single leaf, single action. IsoPro framed leaf in door frame, unequal leaves, single action. IsoPro framed leaf in door frame, double leaves, single action.
Door frames	Planet A132 aluminium door frame, with single leaf set. Planet A132 aluminium door frame, with unequal leaf doors. Planet A132 aluminium door frame, with double doors.
Door panels	-
Type	Planet IsoClear 12 mm door leaf – non acoustic. Guidance for specification option: Suitable for use in: Planet aluminium door frame, with single leaf set. Planet aluminium door frame, with unequal doors. Planet aluminium door frame, with double doors. Planet IsoClear 12 mm door leaf – 34 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoTec 12 mm door leaf – non acoustic. Guidance for specification option: Suitable for use in: Planet aluminium door frame, with single leaf set. Planet aluminium door frame, with double doors. Planet IsoTec 12 mm door leaf – 34 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoPro, single glazed metal framed door leaf – 34 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoPro, double glazed metal framed door leaf – 34 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoPro, single glazed metal framed door leaf – 36 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoPro, double glazed metal framed door leaf – 39 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoPro, double glazed metal framed door leaf – 42 dB Rw. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Timber 44 mm leaf on hinges – 29 dB on to carpet. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Timber 44 mm leaf on hinges – 32 dB on to carpet Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Timber 54 mm rebated leaf on hinges – 33 dB on to carpet. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Timber 54 mm rebated leaf on hinges – 35 dB on to carpet. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Timber 54 mm rebated leaf on hinges – 38 dB on to solid floor. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Timber 54 mm rebated leaf on hinges – 40 dB on to aluminium threshold. Guidance for specification option: Suitable for use in Planet aluminium door frame, with single leaf set only. Planet IsoPro, double glazed metal framed door leaf (non-rebated) – 31 dB Rw. Guidance for specification option: Suitable for use in: Planet aluminium door frame, with unequal leaf doorset. Planet aluminium door frame, with double leaf doorset. Planet IsoPro, double glazed metal framed door leaf (rebated) – 33 dB. Guidance for specification option: Suitable for use in Planet aluminium door frame, with unequal leaf doorset only. Planet IsoPro, double glazed metal framed door leaf (rebated) – 35 dB. Guidance for specification option: Suitable for use in Planet aluminium door frame, with unequal leaf doorset only. Planet IsoPro, double glazed metal framed door leaf (rebated) – 36 dB. Guidance for specification option: Suitable for use in Planet aluminium door frame, with unequal leaf doorset only. Planet IsoPro, single glazed metal framed door leaf (non-rebated) – non acoustic Guidance for specification option: Suitable for use in Planet aluminium door frame, with double leaf doorset only. Timber 44 mm leaf on hinges – non acoustic. Guidance for specification option: Suitable for use in Planet aluminium door frame, with double leaf doorset only. Timber 54 mm rebated leaf on hinges – non acoustic Guidance for specification option: Suitable for use in Planet aluminium door frame, with double leaf doorset only.
Vision panels	Not required. Required. Guidance for specification option: Available with timber door leaves only; consult manufacturer for details and insert requirements.
Ceiling	-
Type	- Manufacturer guidance Consult manufacturer for interface detail and insert requirements.
Method of support	- Manufacturer guidance Consult manufacturer for support detail and insert requirements.
Perimeters, skirtings, sills	27 mm-deep x 100 mm-wide aluminium channel.
Trims	Extruded aluminium profiles 31 mm mullion across face, 27 mm transom across face.
Hardware	- Manufacturer guidance See appropriate door specification for applicable ironmongery options and insert requirements.
Seals	Clear perimeter compression seals. Black perimeter compression seals.
Cable management and outlets	Not required. Double boarded tech panel to incorporate room booking systems, access control and other electronics.
Other features	- Manufacturer guidance Consult manufacturer and insert requirements or leave blank.

Product Reference	M100 Modular Partitioning System - Single Board
StrengthGrade	- Manufacturer guidance Consult with the manufacturer to ensure the system complies with current regulations. BS 5234:1992 non-loadbearing screens not protecting a change in adjacent floor level of >380 mm. For glass load resistance criteria, see below; BS 5234 not applied to “all glass partition screens” Nominal line load criteria of “short-term impact load” utilized 0.36 kN/m applied as linear load at 1100 mm above FFL Glass deflection limited to L/65 or 25 mm, whichever is less under load Maximum deflection and stress in accordance with the glass performance requirements of EN 572/EN 12150/EN 12543/EN 14179 (where heat soaked) Building regulations Part N (BS 6262 & BS EN 12600) + InsStucEng publication “structural use of glass in buildings” 0.36 kN/m (default load). 0.74 kN/m. 1.5 kN/m. BS 6180:2011 barriers in and about buildings for Atria or protected change in adjacent floor level of >380 mm. Horizontal uniformly distributed line load 1100 mm above FFL (Glass deflection limited to L/65 or 25 mm, whichever is less relative to glass fixings). Structural glass based on line-load and attendant UDL + point load: 0.74 kN/m. 1.5 kN/m. 3.0 kN/m.
Partition	Framed solid system.
Fasteners	To manufacturer's specification, type, length and frequency to suit substrates.
Joint treatment	Extruded aluminium profiles 31 mm mullion across face.
Finish/ Colour	Polyester powder-coated, RAL. Guidance for specification option: Insert colour requirement. Polished and chemically brightened. Linished and chemically brightened. Etched and anodized. Guidance for specification option: Insert requirement.
System accessories	- Manufacturer guidance Tech panels, access control - consult with manufacturer for details.
Samples required	- Manufacturer guidance Consult with manufacturer.

Sustainability data

Contains Red List materials	No Guidance for specification option: No substance on the “Candidate List of Substances of Very High Concern for authorisation” derived under REACH is present either above the limits for registration with the European Chemicals Agency or in excess of 1 weight–% of the product.
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: 6063 T6. Glass
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	96.2 kg CO₂ eq/m² Self declared Guidance for specification option: There will be slight variances in embodied carbon if different glass thicknesses, etc, are used. These embodied carbon figures are for 1 m² of each type of partition – modules A1-A3 including biogenic carbon. The EPD for the single glazed partition systems is based on powder-coated aluminium-framed single-glazed partition systems using 12.8 mm laminated glass, without a door.
Recyclability	100% Guidance for specification option: Aluminium and glass.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance 17–28% for glass. 70% for aluminium.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	2
IFC	-	1
