Monarplan PVC Warm Deck Roofing System
Verified by manufacturer 2 months ago
Description
Monarplan is a flexible PVC-P single ply membrane offering excellent characteristics of strength, elongation and weathering making it ideal for new build or refurbishment projects.
All membranes are reinforced and are available with or without a fleece backing providing scope for all methods of application and offering specifiers confidence in performance and unlimited freedom in design.
Mechanically Fastened System:
Monarplan FM systems rely on the use of fasteners and pressure plates installed at pre-determined centres within the overlap to attach the roofing system to the structure. The system offers fast application time, instant seam strength and reduced impact associated with inclement weather conditions. Monarplan FM membrane is mechanically attached through to the structural deck using Monarplan Tubular Fasteners of appropriate length. The fasteners are required to penetrate through the structural deck with a minimum projection to the underside of 25 mm.
Fully Adhered System:
Monarplan GF Fleecebacked membrane offers an ideal solution on very complex building shapes or where drilling and mechanical fasteners are inappropriate or impractical.
Warm Ballasted System:
Monarplan G membrane offers an ideal solution on very complex building shapes or where drilling and mechanical fasteners are inappropriate or impractical, and is fast to installation but can support the increased loading from the ballast material.
Components:
- Primer.
- Vapour control layer.
- Insulation.
- Waterproof membrane.
General information
Uniclass | |
CAWS | J42/110 Warm deck roof covering |
SKU Code | unknown |
Specification data - Single layer sheet warm roof covering systems
Product Reference | Monarplan Warm Deck Roofing System |
Primer | Not required Icopal S.A. Primer Guidance for specification option: Quick drying primer for self-adhesive membranes. |
Vapour control layer | Not required Micoral NB vapour control layer Guidance for specification option: Heat-activated/ self-adhesive bituminous vcl for mechanically fastened systems only. TorchSafe T.A. VCL - Sand Guidance for specification option: Heat-activated/ self-adhesive bituminous vcl. Monofilament 250 vapour control layer Guidance for specification option: Loose-laid polyethylene vcl (low-med humidity). For mechanically fixed systems only. Reflex 275 vapour control layer Guidance for specification option: Loose-laid polyethylene vcl (med-high humidity). For mechanically fixed systems only. |
Insulation | |
Type | Thermazone Foilboard Guidance for specification option: Foil-faced insulation for mechanically fixed single-ply systems. Thermazone Roofboard Guidance for specification option: For adhered, warm ballasted or mechanically fixed single-ply systems. |
Fixing | Adhered with Icopal Insulation Adhesive Mechanically fastened, with fixings as clause 355 |
Waterproof membrane | |
Type | Monarplan FM Guidance for specification option: Mechanically fixed systems only. Monarplan G Guidance for specification option: Warm ballast systems only. Monarplan GF Guidance for specification option: Fully adhered systems only. |
Fixing | Adhered with Icopal Fleeceback Adhesive Adhered with Icopal SBR Spray Contact Adhesive Loose-laid with sealed laps Guidance for specification option: Warm ballasted systems. Mechanically fastened, with fixings as clause 355 |
Thickness | 1.2 mm Guidance for specification option: Monarplan FM only. 1.5 mm 1.8 mm Guidance for specification option: Monarplan FM only. |
Colour | Anthracite (RAL 7015) Light Grey (RAL 7001) |
Surface protection | Not required Guidance for specification option: Mechanically fixed/ fully adhered systems. 20-40 mm diameter river-washed stone ballast 50 mm concrete paving slabs on supports/pads |
Accessories | None Icopal PVC Cable and Tube Duct Icopal PVC Cowled Telescopic Vent Icopal PVC Lightning Conductor Pads Icopal PVC Outlet Icopal PVC Parapet Outlet Icopal PVC Standing Seam Profile, as clause 450 Icopal PVC Walkway Membrane, as clause 485 |
Product Options | Preparation: Consult with Icopal Ltd for details of the preparation and priming of the intended roof structure and substrate and for details of the requirements for preparation layers, venting layers, nailing layers and taping strips. System build-up: Consult Icopal Limited’s technical literature for details and guidance. Icopal Limited are also able to offer a design and specification service and it is recommended that they are consulted early in the design process. |
Similar products from BMI Group UK Ltd
Icopal Universal POCB Warm Deck Roofing System
Monarplan PVC - FM1.5 Mechanically Fixed on Concrete - PVC single ply waterproofing system
Monarplan PVC - FM1.5 Mechanically Fixed on Ply/OSB (Warm Roof) - PVC single ply waterproofing system
Monarplan PVC - FM1.5 Mechanically Fixed on Profiled Metal - PVC single ply waterproofing system
Monarplan PVC - FM1.8 Mechanically Fixed on Concrete - PVC single ply waterproofing system
Monarplan PVC - FM1.8 Mechanically Fixed on Ply/OSB (Warm Roof) - PVC single ply waterproofing system
Monarplan PVC - FM1.8 Mechanically Fixed on Profiled Metal - PVC single ply waterproofing system

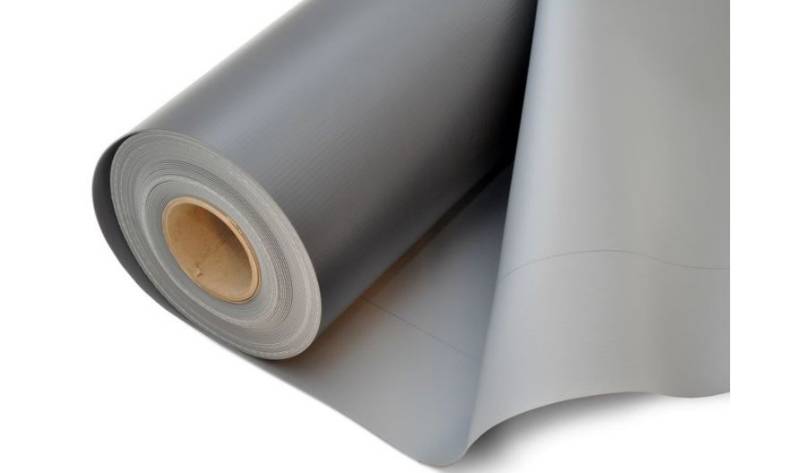

Monarplan PVC - GF Adhered on Concrete (Monarplan FM - 1.2 mm) - Warm roof system
