Monarfloor Tranquilt System
A lightweight acoustic isolation system for floating screeds.

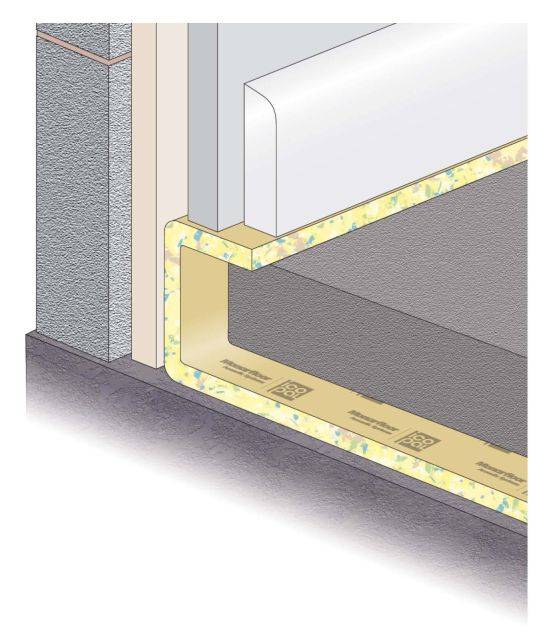

The Monarfloor Tranquilt system reduces impact and flanking transmission within pre-cast and in-situ concrete floors in new build and refurbishment projects, by forming an isolation layer between the sub-floor and the finished screed.
Features and benefits:
- A composite system comprising a layer of LRAC foam sealed both sides with a polyethylene membrane.
- A one part system laid without the requirement for flanking, jointing strips or corners.
- Designed for use with traditional sand/ cement and proprietary screeds without the need for additional polythene or waterproofing membranes.
- When installed as part of a complete sound reduction system, Tranquilt enables a concrete floor to meet the sound transmission regulations of Part E.
- For applications that are to be pre-completion sound tested, Tranquilt provides a quick and easy route to up to 4 cost-neutral Sustainable Home Credits.
Performance:
- DnT,w (Part H): >52 dB.
- DnT,w + Ctr (Part E): ≥45 dB.
- L,nt,w (Part E): ≤62 dB.
- L,nt,w (Part E): <61 dB.
- Roll weight: 17.5 kg.
| Size | Roll: 20 000 x 1500 x 10 mm |
| Uniclass 2015 | |
| CAWS | K11/275 Acoustic separating floor system K11/295 Floating floor system K20/150 Battened timber board floating floor K20/20 Battened timber board floating floor |
| Product Reference | Monarfloor Tranquilt System |
| Monarfloor acoustic adhesive | Required |
| Standard product features | Size: Roll: 20 000 x 1500 x 10 mm. |
