Momentum 100
Top hung acoustic moveable wall system.
Top hung acoustic moveable wall system, including acoustic infill combined with interlocking edge profiles with unique seal interfaces, providing up to 59 dB sound block performance. The unique rapid action scissor jack mechanism provides a seal pressure of 2 kN/m, ensuring excellent onsite acoustic performance.
Magnetic profiles complement precision engineered roller and track systems, allowing effortless operation. Unique roller locking mechanism guarantees panel alignment in the long term. It is acoustically tested to ISO 140-3 and certified for shock impact, endurance, thermal insulation and stability.
Available in a range of finishes including laminate, white marker, veneer, digi-art or primed for onsite decorating.
Features and benefits:
- High acoustic performance up to 59 dB.
- Acoustically tested pass doors.
- Vast selection of finishes available.
- Flexible division with various stacking options.
- Top hung with no floor tracks.
- Fire rated options available.
- Semi-automatic system available.
Fire rated options available.

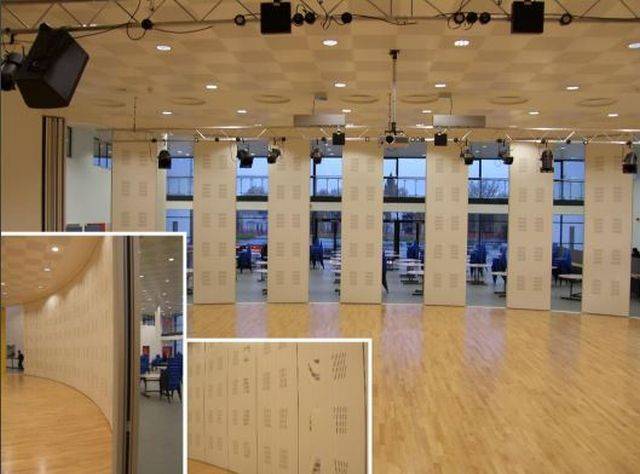

Used to acoustically divide conference/ seminar rooms, classrooms, function rooms, office space and community halls.
Size | As drawing Insert reference. As schedule Insert reference. |
Finish | |
Uniclass 2015 | |
CAWS | L20/545 Sliding stacking panel partitions |
Product Reference | Momentum 100 |
Size | As drawingInsert reference. As scheduleInsert reference. |
Width | Insert requirement, available 650–1250 mm. |
Stacking | S1S2S3S4S5S6S7S9 |
Suspension | Double pointSingle point |
Finish | Insert requirement, contact manufacturer for information. |
Standard product features | Nominal thickness: 100 mm. Construction: Top hung. Acoustic performance (up to ISO 140-3 and BS EN 20140-3): 59 dB. Maximum clear opening height: 11 m. |
