Description

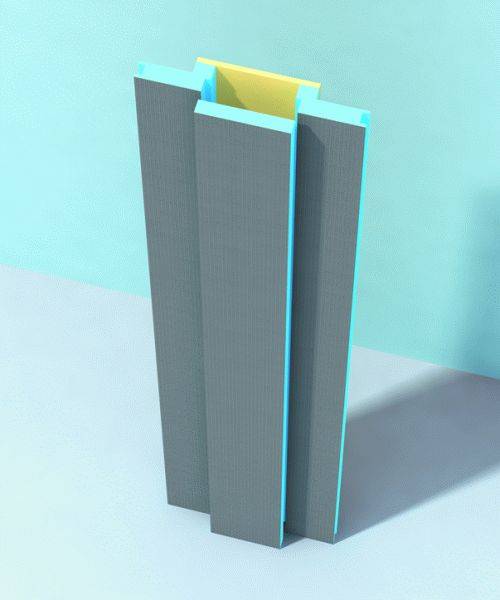

Moltoromo is a modular wall system for quick and simple shower or room partitioning, for wet and dry areas that are covered with tiles, slabs or natural stone on at least one side.

Advantages:

  • Waterproof.
  • Heat insulating.
  • Lightweight and stable.

General information
Specification data - Plasterboard panel partition systems
Product Reference

Moltoromo

Standard product features

Height:

2600 mm.

Core:

Rigid foam expanded polystyrene.

Long term compressive strength (50 years):

0.08 N/mm².

Compressive strength (at 10% compression):

0.25 N/mm².

Thermal conductivity:

0.036 W/mK.

Bulk density:

32 kg/m³.

Temperature limits:

-50 to +75°C.

Fire behaviour:

  • DIN 4102: B1.
  • EN 13501: E.

Product Options

Surface requirements:

Joints between walls, floor and ceiling must be solid, load-bearing, non-deformable, dry and free of dirt and other contaminants.

Processing:

The wall segments are tongue and groove and should be secured with wedi 610 adhesive and sealant. The fixing set must be used for connection to the wall and door. Before tiling, transitions between panels should be covered with wedi tools reinforcing tape (part of the installation set). The supply segments are used if fittings, pipes or other built-in elements are to be installed or secured. Tiles, slabs or natural stone coverings and mineral plasters can be applied to the wall segments 24 hours after installation.

Accessories:

May be installed with selected Wedi sealants/ adhesives, to include one or more of the following:

  • 320 Flexible Cement Based Adhesive.
  • 520 Cement Based Waterproof Membrane.
  • 610 Adhesive Sealant.
  • Fundo Sealing Set.
  • Joint Reinforcement Tape.
