Modular Tanks

Application

  • Stormwater.
  • Recycling.
  • Filtration.
  • Wastewater treatment.
  • Aeration.
  • Effluent.
  • Clean water storage.
  • Sludge, sewage and slurry.

Description

Modular concrete tank supplied in 10 m³ capacity modules; volumes can be increased by extending in 10 m³ increments up to 100 m³. Each tank is supplied in six sections (two ends, two sides, two lids, and complete with fixings and seals to construct a watertight structure). The slab and ring beam are poured on site.

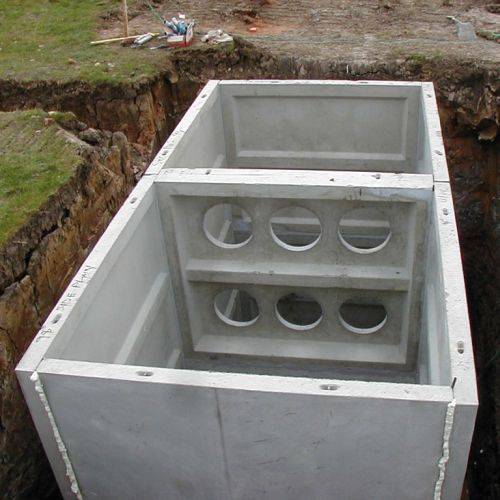

Tanks can be joined by a single section common wall with holes to allow free-flowing liquid or a single high-level hole for settlement purposes.


Features and benefits:

  • Reduces cure time.
  • Lower plant/ labour costs.
  • Reduced overheads.
  • Sealants and fixings are included.
  • A free detailing service is available to suit specific project requirements – consult the manufacturer for details.
  • Manufactured in accordance with the requirements of the Health and Safety Executive and the Environment Agency, and complies with BS 8110 and BS 8007.

General information

Color

Light grey

Material

Concrete

Shape

Rectangular

Size

10–100 m³

Supplied in 10 m³ capacity modules; volumes can be increased by extending in 10 m³ increments up to 100 m³.

Uniclass 2015

Pr_65_52_20_16 Concrete box culvertsPrimary

CAWS

R13/630 Storage tanks for ground water

Specification data - Concrete box culverts Enhanced data

Design

As drawing.

Insert drawing reference number where applicable.

Cover

Slatted.

Allowing surface liquid inflow.

Solid.

StrengthClass

C50

C50 concrete, produced in own batching plant.

Tank joints

Single high level hole.

Single section common wall with holes.

Options

Apertures can be cast to suit specific project requirements.

Accessories

Insert requirement; contact manufacturer for information.
