Modal Priora

Application

Suitable for retail, commercial and residential projects.

Description

Concrete paving blocks, available in three colours.

Features and benefits:

  • Finely textured surface.
  • Features integral spacers which create 6 mm drainage apertures.
  • Colours can be mixed and matched.
  • Can be tailored to suit project requirements.
  • Manufactured in accordance with BS EN 1338: 2003.

The addition of patented nibs along the edge of each paving stone allows each block to be laid in any direction or orientation while still achieving 40% more interlock than standard blocks. Consult manufacturer for further details.

Applications:

Suitable for retail, commercial and residential projects.

General information

Finish

Finely textured

Material

Concrete

Size

Various

Uniclass 2015

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/115 Permeable concrete block paving – total infiltration

Specification data - Concrete paving blocks

Product Reference

Modal Priora

Standard

Manufactured In accordance with BS EN 1338: 2003

Physical properties

-

PhysicalPropertiesColour

Anthracite granite

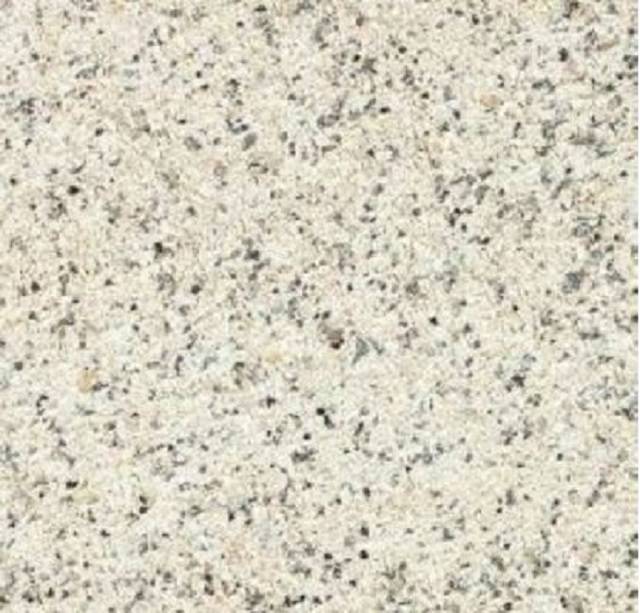

Light granite

Mid grey granite

PhysicalPropertiesFinish

Finely textured

PhysicalPropertiesProfileInterlockingFeatures

The addition of patented nibs along the edge of each paving stone allows each block to be laid in any direction or orientation while still achieving 40% more interlock than standard blocks

Dimensions and associated tolerances

-

PhysicalPropertiesDimensionsAndAssociatedTolerancesNominalSizes

200 x 100 x 80 mm

200 x 200 x 80 mm

300 x 200 x 80 mm

300 x 300 x 80 mm

600 x 300 x 80 mm

Tolerances on plan dimension and thickness (nominal)

Length ±2 mm, width ±2 mm, thickness ±3 mm

PhysicalPropertiesWeatheringResistance

≤1.0 kg/m² as a mean with no individual value > 1.5 kg/m² (freeze thaw durability). It should be appreciated that with all products weathering and site conditions can cause shade variation to appear across the surface of individual units. This does not in any way affect the performance of the units and any such variation will diminish over a period of time as the product matures

PhysicalPropertiesAbrasionResistance

≤23 mm (Wide Wheel Abrasion Test)

PhysicalPropertiesSlipResistance

Slip/ skid resistance (polished/ unpolished): >45

Standard product features

Colour:

Anthracite granite, Light granite, Mid grey granite.

Features:

Finely textured surface, features integral spacers which create 6 mm drainage apertures and colours can be mixed and matched. Can be tailored to suit project requirements and manufactured in accordance with BS EN 1338: 2003.

Finish:

Finely textured.

Material:

Concrete.

Size:

Various.

Embodied carbon:

32 kg CO2 m².

Environmental information

Embodied carbon

32 kg CO2 m²
