MobiRoof ECO® Green Roof
Verified by manufacturer 4 months ago
Green roofing system.
Application
Suitable for use on both flat roofs and roofs with a slope of up to 20% or 10°, especially those which are not able to support a full roof garden. Typical application areas include:
- Garden houses.
- Garages.
- Dormers.
- Extensions.
- Sun houses.
- Carports.
- Storage buildings.
For slopes above 10°, additional measures must be taken to secure the cassettes. The outer edges of the roof and edges around skylights and drain pipes should be finished with grit in order to enhance the microclimate. Consult manufacturer for information.
Description

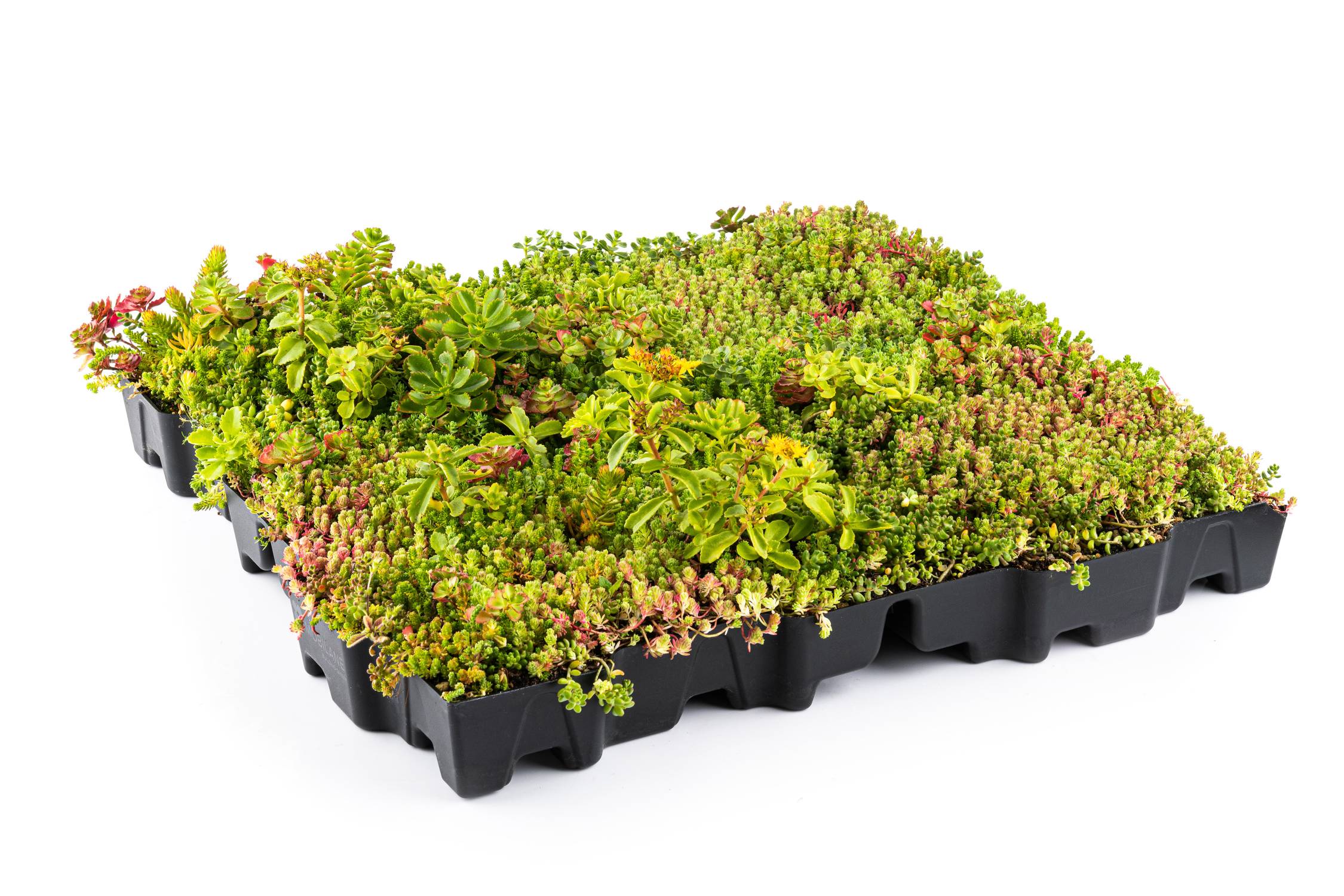

Ready-made green roofing system that consists of a plant cassette filled with substrate and 6-8 different types of Sedum.
Features and benefits:
- Collection and buffering of rainwater.
- Stimulates biodiversity.
- Insulating and sound-absorbing effect.
- Extends the life of the roof.
- Aesthetic value.
- Increases the value of real estate.
- Increased efficiency of solar panels.
- Ready-to-use cassette with substrate and sedum plants.
- Lightweight green roof system.
- Ready for use as roof cover.
- Easy to install and replace.
- Water retention of 20 litres per square metre (optional 30 litres per square metre).
- Sustainably and locally produced.
- Circular, recycled and fully recyclable.
- Low maintenance.
General information
Color | Green |
Finish | Other |
Material | Vegetation Guidance for specification option: Cassettes: Regenerated non-toxic polypropylene (PP). |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 60 mm |
Uniclass | |
CAWS | Q37/130 Extensive green roof |
Specification data - Extensive green roof systems
Moisture control | |
Moisture retention mat | Water retention: 20 L/m² (approximately). |
Planting systems | |
Planting requirements | Weed-free sedum plants including album, spurium, acre, hispanicum and mesembrianthemum cooperi. |
Edge restraints | Manufacturer's standard.Guidance for specification option: Outer edges of the roof and edges around skylights and drain pipes should be finished with grit in order to enhance the microclimate. |
Weight | Dry: 38 kg/m²; Fully saturated: 58 kg/m² (20 L/m²). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Architect Folder - MobiRoof ECO
Mobilane MobiRoof ECO Factsheet
Consumer brochure
Mobilane Corporate Brochure
Case studies
Extensive green roof on multi-storey car park Hornschuchpromenade in Fürth, Germany
