Mitred Pull Handle (HUKP-0101-56) - Door handle
Verified by manufacturer 6 months ago

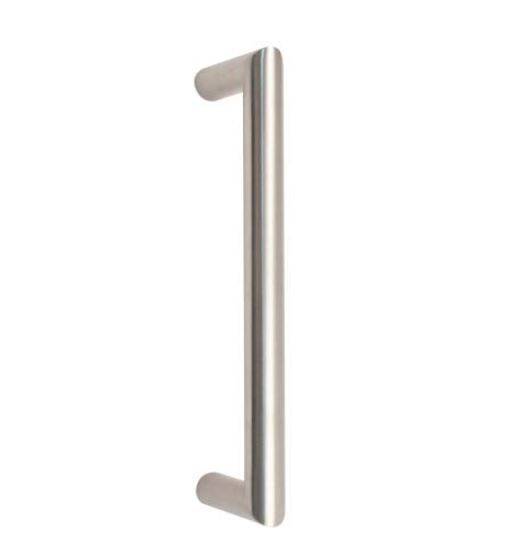

Stainless steel mitred pull handle
Application
- Suited for heavy duty applications.
- To suit doors up to 60 mm thick and glass doors 8-12 mm.
Description
Stainless steel mitred pull handle.
Features and benefits:
- Pull handle mitred shape section.
- Hole centres standard: 300, 425, 650, 900 and 1000 mm.
- Diameters 19, 25, 32 and 38 mm.
- Fixing types: Bolt through, back to back or secret fixing.
- To suit doors up to 60 mm thick and glass doors 8-12 mm.
General information
Color | Black Silver Gold Bronze Manufacturer guidanceAny RAL colour available to special order. |
Finish | Satin Guidance for specification option: Brass or stainless steel. Polished Guidance for specification option: Brass or stainless steel. Matt Guidance for specification option: Black. |
Material | Stainless steel Steel |
Length | 300 mm 425 mm 650 mm 900 mm 1000 mm |
Width | 19 mm 25 mm 32 mm 38 mm Manufacturer guidanceDiameter. |
Height | 64 mm 70 mm 77 mm 83 mm Manufacturer guidanceDepth. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/641 Pull handles P21/42 Pull handles |
Product range |
Specification data - Pull handles
Classification grades (minimum) | |
Fire resistance | 0. |
Corrosion resistance | 4. |
Form | Straight bar with stand-off spacers. |
Diameter | 19 mm.25 mm.32 mm.38 mm. |
Distance between centres | 300 mm.425 mm.650 mm.900 mm.1000 mm. |
Material and finish | Stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel.Polished stainless steel.Matt black PVD.Light bronze.Guidance for specification option: Special order. Dark bronze.Guidance for specification option: Special order. Hafele black.Polished brass.Satin brass.RAL colour.Guidance for specification option: Special order. |
Mounting | Bolt through.Back to back.Secret fixing. |
