Description

Fast. Clean. Simple. The miscea LIGHT range of sensor activated taps are available as water only or have an additional integrated liquid dispenser system engineered directly into the tap for convenience and hygiene benefits. Through fast and reliable sensor technology, the tap readily dispenses what you need and water for an efficient and convenient hand washing experience.

The system is not just an award winning system, but also a viable and effective solution for facilities. It is elegant in design yet simple enough to be used in any washroom.

Available in two different models of tap:

  • Standard (basin mounted).
  • Wall (wall mounted).

The system comprises of two main separate components:

  • Tap.
  • Soap box (water only version does not have a soap box).

The soap box is mounted under the washbasin and the tap is connected to a pre-mixed hot and cold water supply. Typically this would be via a temperature mixing valve (TMV) - not supplied with the product. Hygiene products are connected via the soap box. Operating on just 12 volts, it does not require batteries; ensuring wash stations are always operational.

General information
Features

Intuitive user interface, bacteria safety feature, single dispenser

Material

chrome plated brass

Size

0.0

WarrantyDescription

2 year manufacturers warranty from date of purchase

Uniclass 2015 Washbasin thermostatic water supply sets (Pr_40_20_87_99)
Specification data
Product Reference

MLCT1S0 - LIGHT standard water only

Polished chrome finish.

MLCT1S1-1 - LIGHT standard water and soap

Polished chrome finish.

MLCT1S1-2 - LIGHT standard water and disinfectant

Polished chrome finish.

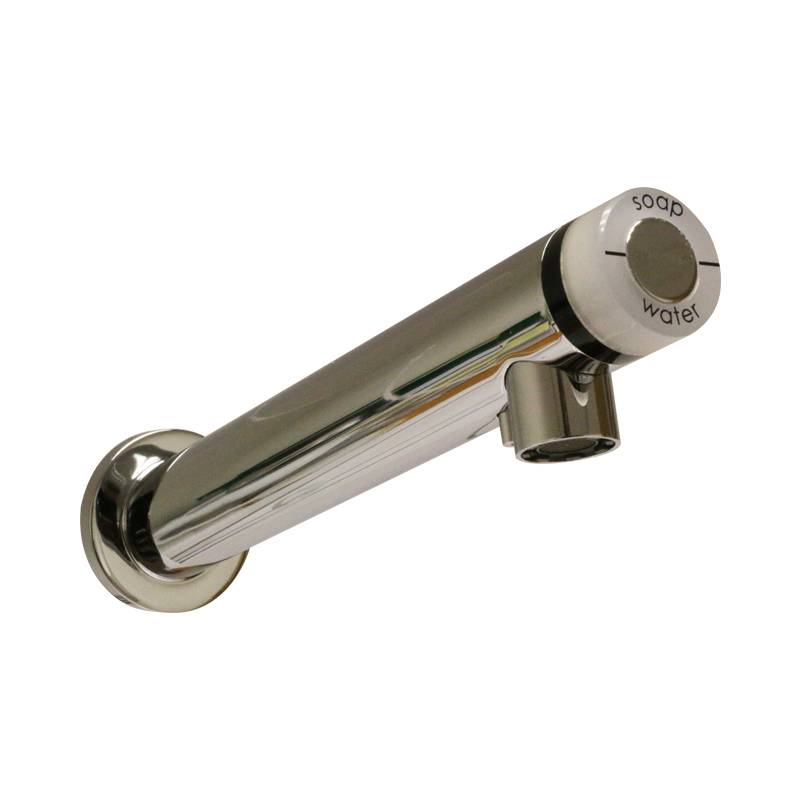

MLCT3S0 - LIGHT wall water only

Polished chrome finish.

MLCT3S1-1 - LIGHT wall water and soap

Polished chrome finish.

MLCT3S1-2 - LIGHT wall water and disinfectant

Polished chrome finish.

Accessories

Not required

MS.01.029.00

Wash lotion soap - 6 x 1 L pouches.

MS.02.002.001

Remote control for programming system settings.

SM116627

Schülke esemtan wash lotion - 10 x 1 L pouches.

SM116817

Schülke desderman N disinfectant - 10 x 1 L pouches.

Standard product features

Tap Size (h x diameter):

  • LIGHT standard: 181 x 66 mm.
  • LIGHT wall: 104.8 x 66 mm.

Tap weight (including hoses and cables):

  • LIGHT standard: 1.0 kg.
  • LIGHT wall: 1.0 kg.

Soap box (h x w x d):

280 x 220 x 82.4 mm.

General:

  • Voltage: 12 V DC.
  • Input voltage: 100–240 V AC/ 50–60 Hz.
  • Operating water pressure: 0.8–10 bar.
  • Water flow rate (at 3 bar): ca. 6 L/min.
  • Maximum water temperature: 75°C.
  • Enclosure rating of PCB compartments: IP 55.
  • Soap box weight (excluding pouches): 0.95 kg.

Default settings:

  • Response time of water flow stop: 1 sec.
  • Dispense volume of soap: 1 ml. (Only available with miscea LIGHT with integrated soap dispenser).
  • Dispense volume of disinfectant: 3 ml. (Only available with miscea LIGHT with integrated disinfectant dispenser).
