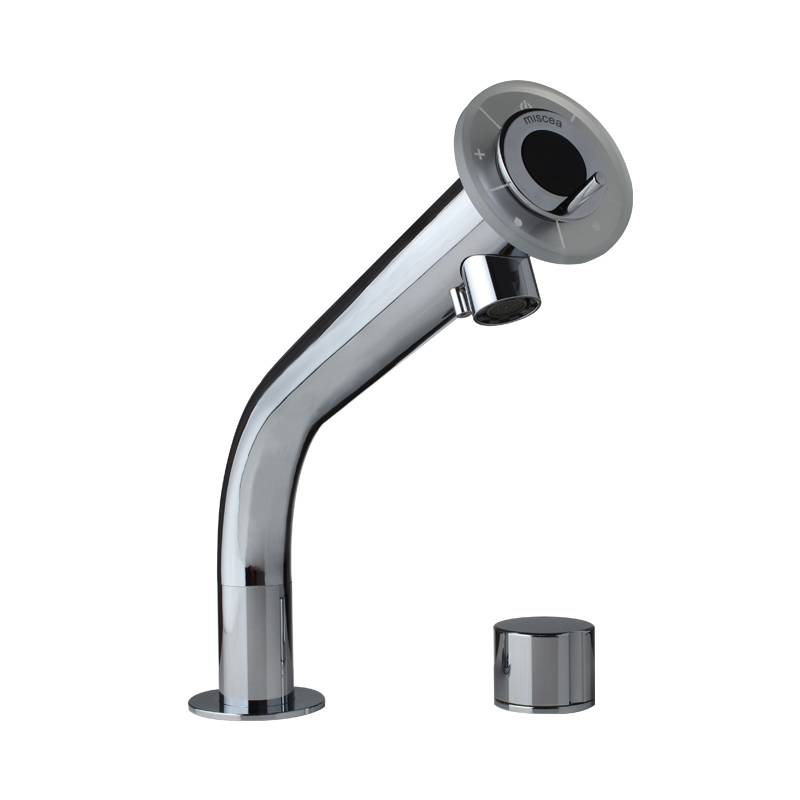

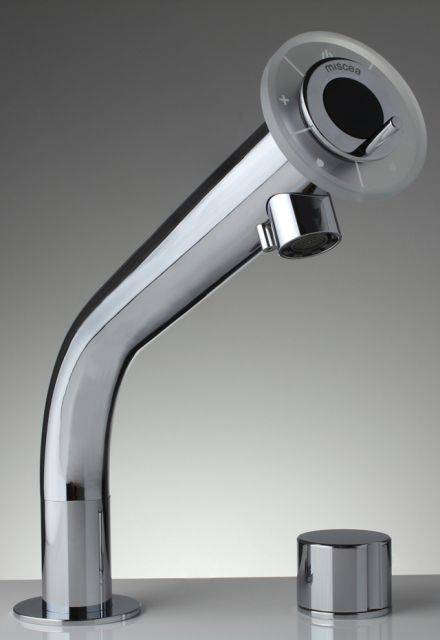

Miscea KITCHEN 3 in 1 Sensor Tap
Description

The miscea KITCHEN system is the world's first truly touch-free multifunctional kitchen tap. By combining two liquid dispensers and a tap into one unique and easy to use system, it eliminates clutter and mess. It features the fastest and most reliable sensor technology available on the market to readily and accurately respond to hand movements. The functions are activated by moving your hands in the detection zones of the sensors to start and stop the water flow, control the water temperature and to dispense the hand hygiene liquids. The flow regulator allows the water flow to be pre-set and adjusted at the point of use. The spout swivels to allow for use with 2 and 2½ bowl sink units.

The system comprises of the following main separate components:

  • Tap.
  • Water flow regulator.
  • Soap box.
  • Water box.

The soap box and the water box are mounted under the sink unit. The water box is connected to the hot and cold water supplies. Liquid refill products are connected via the soap box. Operating on just 24 volts (via mains adapter plug), it does not require batteries; ensuring the system is always operational.

General information
Features

Elegant design, space saving, easy to use, hygienic sensor activation, coloured LED light signals, integrated aerators

Finish

Polished chrome

Material

chrome plated brass

Size

0.0

WarrantyDescription

2 year manufacturers warranty from date of purchase

Uniclass 2015
Pr_40_20_87_85 Sink thermostatic water supply setsPrimary
CAWS

N11/30 Sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

Specification data - Sink thermostatic water supply sets
Product Reference

MKCT4S1 - KITCHEN complete with flow regulator polished chrome

MKCT4S10 - KITCHEN without flow regulator polished chrome

Accessories

Not required

MS.01.009.001

Hand care lotion - 6 x 1 Litre pouches.

MS.01.010.001

CitroenFresh detergent - 6 x 450 ml pouches.

MS.01.029.00

Wash lotion soap - 6 x 1 Litre pouches.

MS.02.002.001

Remote control for programming system settings.

MS.02.040.001

Water flow regulator in polished chrome.

Standard product features

Tap (h x diameter):

267 x 62 mm.

Soap box (d x w x h):

82.4 x 220 x 280 mm.

Water box (d x w x h):

76.8 x 155.0 x 166.0 mm.

Water flow regulator (h x diameter):

35.20 x 46.00 mm.

General:

  • Voltage: 24 V DC.
  • Input voltage: 100–240 V AC/ 50–60 Hz.
  • Operating water pressure: 0.8–10 bar.
  • Maximum water temperature: 75°C.
  • Enclosure rating of PCB compartments: IP 55.
  • Tap weight (including hoses and cable): 1.5 kg.
  • Water box weight (including hoses): 1.75 kg.
  • Soap box weight (excluding pouches): 0.95 kg.
  • Water flow regulator weight: 1.5 kg.

Default settings:

  • Dispense volume of liquid 1: 1 ml.
  • Dispense volume of liquid 2: 3 ml.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 4 2.0
