Mirage™ - Textured Panel
Verified by manufacturer 1 month ago
Mirage™ 12 mm
Mirage™ 12 mm
Textured acoustic panel.
Application
Suitable for wall and ceiling applications in:
- Meeting rooms.
- Commercial/ office spaces.
- Education.
- Hospitality.
- Theatres and auditoriums.
- High humidity environments (swimming pools).
- Recording studios.
- Retail.
Description

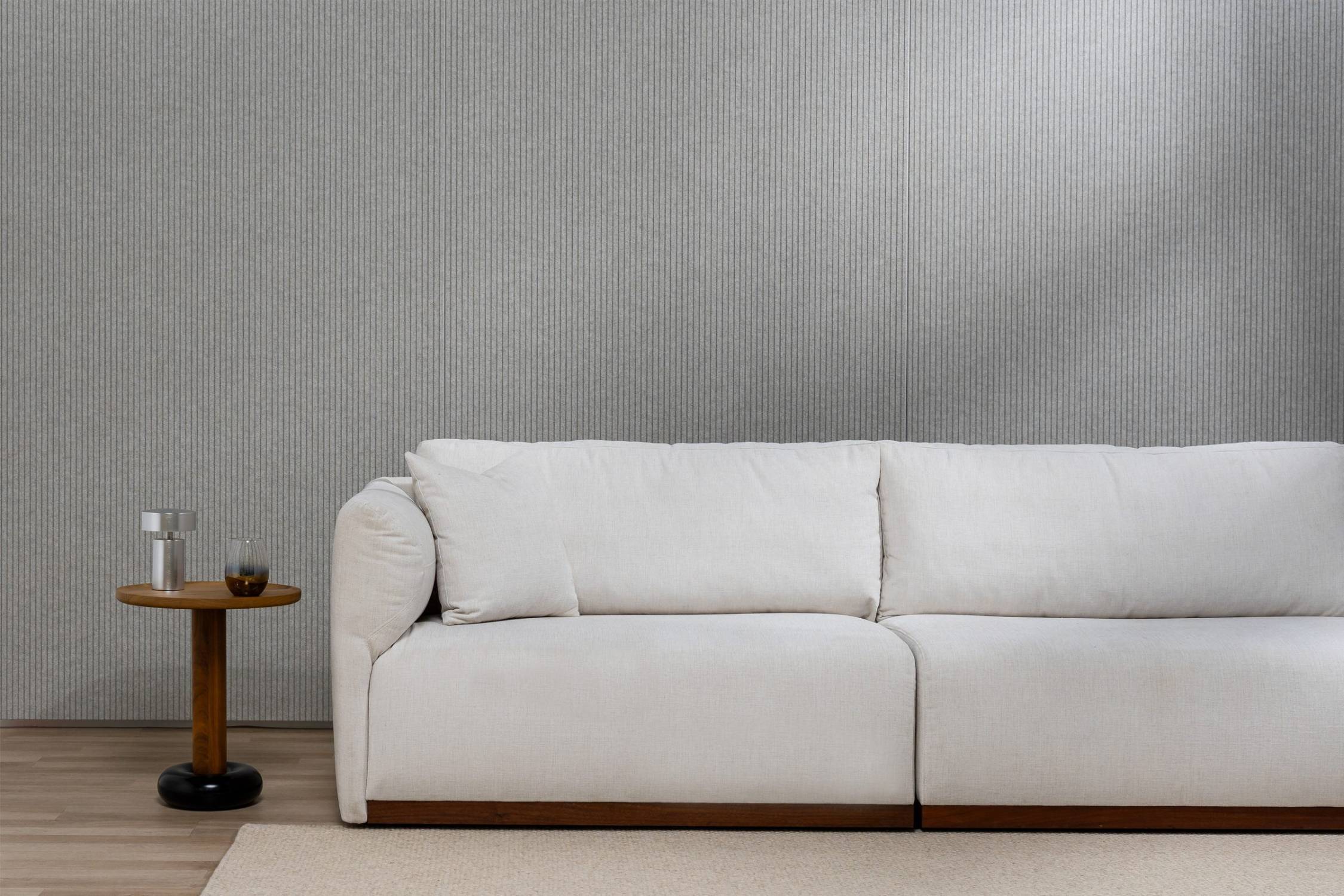

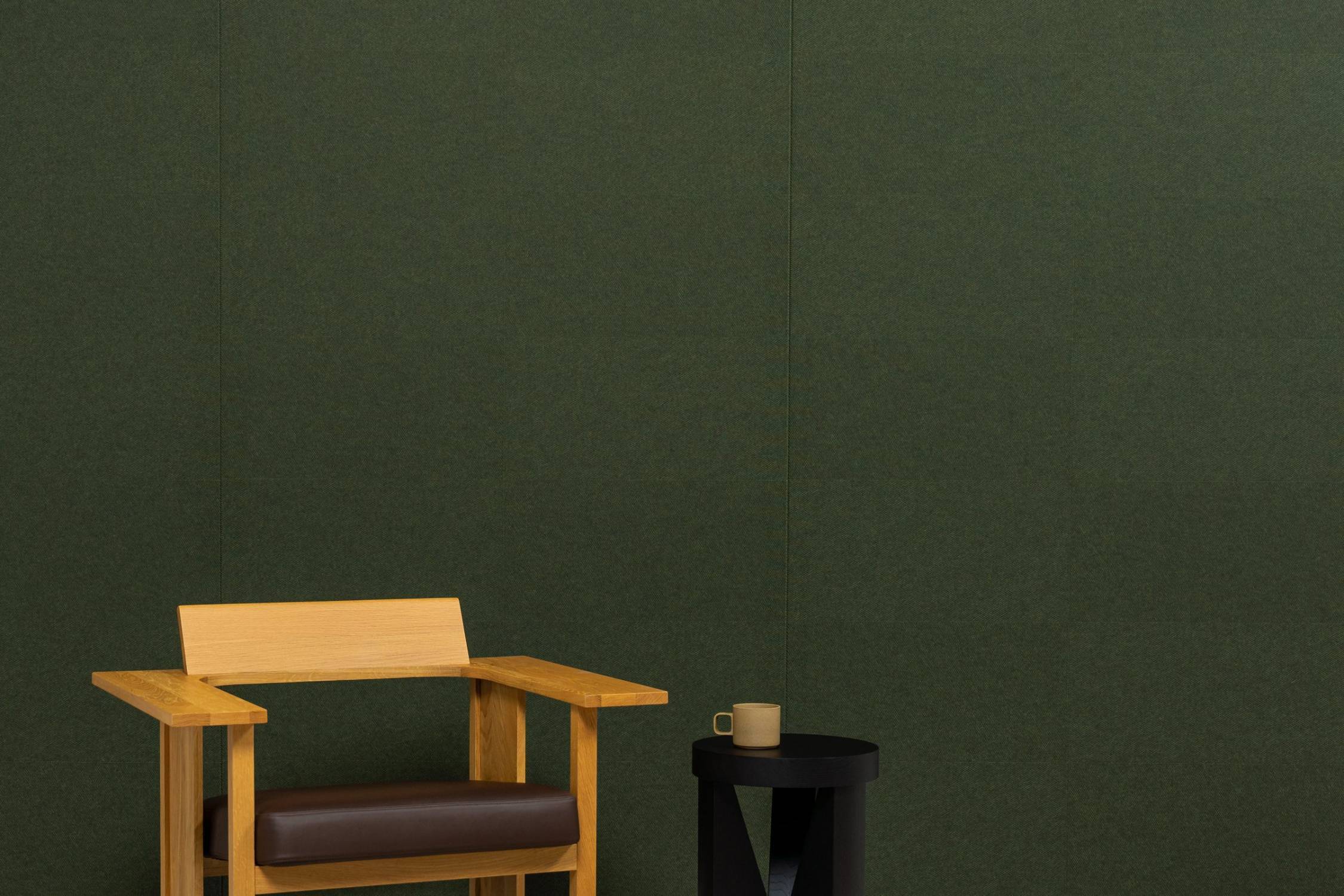

A textured acoustic panel that adds visual depth to interiors. Available in six designs to bring sophistication and a sense of movement to any interior space.
Compatible with Cube™ panels, and also available in all Cube™ colours.
Features and benefits:
- Made with a minimum of 80% recycled polyester fibre (PET).
- Carbon neutral.
- Delivers excellent acoustic performance.
- Six designs available.
- Available on both 12 mm and 24 mm Cube™ panels.
- Solid colour with no edging or capping required.
- Panels supplied with bevelled edges for a tidy and professional finish.
- Suitable in high humidity areas.
- Made in Britain.
- Environmental product declaration (EPD) compliant with ISO 14025 and EN 15804.
- Meets the criteria for WELL, LEED, Green Star, and BREEAM building rating systems.
General information
Color | Orange Green Black Grey Yellow |
Finish | Textured |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 2400 mm 2700 mm |
Width | 1200 mm |
Height | 12 mm 24 mm |
Warranty description | Ten year Guidance for specification option: The product is guaranteed to be free from manufacturing defects and carries a Manufacturer’s Guarantee for a period of no less than ten years. |
Uniclass | |
CAWS | K40/265 Infill units K13/170 Acoustic panel lining M52/10 Wallcoverings K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K13/170 Acoustic panel lining M52/110 Wallcoverings |
Specification data - Sound attenuator infill units
Classification data | |
Third-party certification | CarbonNeutral® certificate. |
Form | Panel. |
Rigidity | Semi-rigid. |
Application | Ceiling mounting. Wall mounting. |
Material | Polyester fibre (PET). Guidance for specification option: 100% polyester lightweight panel. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class D to BS EN ISO 11654. Guidance for specification option: Without 24 mm air gap. NRC = 0.45 (no air gap). Class C to BS EN ISO 11654. Guidance for specification option: With 24 mm air gap. NRC = 0.70 (with 24 mm air gap). |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s2,d0. |
VOC emissions | <0.092 mg/m³ (7 days). |
Dimensions | |
Size (length x width) | 2400 x 1200 mm. 2700 x 1200 mm. |
Thickness (overall) | 12 mm. |
Profile | Linear. |
Edges | Bevelled. |
Surface pattern | Solid. |
Finish | Textured. |
Colour | Acros. Guidance for specification option: LRV: 40. Beehive. Guidance for specification option: LRV: 33. Canyon. Guidance for specification option: LRV: 19. Caspian. Guidance for specification option: LRV: 6. Cavalier. Guidance for specification option: LRV: 12. Empire. Guidance for specification option: LRV: 5. Falling Water. Guidance for specification option: LRV: 34. Flatiron. Guidance for specification option: LRV: 24. Gherkin. Guidance for specification option: LRV: 8. Highland. Guidance for specification option: LRV: 19. Muralla. Guidance for specification option: LRV: 9. Opera. Guidance for specification option: LRV: 49. Parthenon. Guidance for specification option: LRV: 33. Pavilion. Guidance for specification option: LRV: 80. Petronas. Guidance for specification option: LRV: 2. Pinnacle. Guidance for specification option: LRV: 3. Sargazo. Guidance for specification option: LRV: 4. Savoye. Guidance for specification option: LRV: 46. Senado. Guidance for specification option: LRV: 44. Terrace. Guidance for specification option: LRV: 24. Tree House. Guidance for specification option: LRV: 3. |
Accessories | Fittings for wall mounting. Guidance for specification option: Consult manufacturer for details. Fittings for independent suspension. Guidance for specification option: Consult manufacturer for details. |
Design | Rammed earth. Offset. Lapis. Brutalist. Bouclé. Mortar. |
Thermal performance | 0.30 m²·K/W. Manufacturer guidanceThermal resistance. |
Impact resistance | To ISO 7892. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 0 kg CO₂ eq/kg |
Declared unit | 0 kg CO₂ eq/kg Self-declared Lower emissions |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79 % Guidance for specification option: >79% recycled material. |
Literature
Literature type

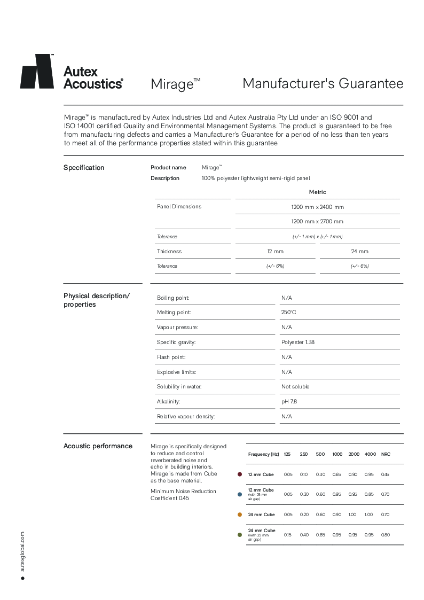

Mirage Manufacturer's Guarantee
Mirage Install Instructions NZ UK

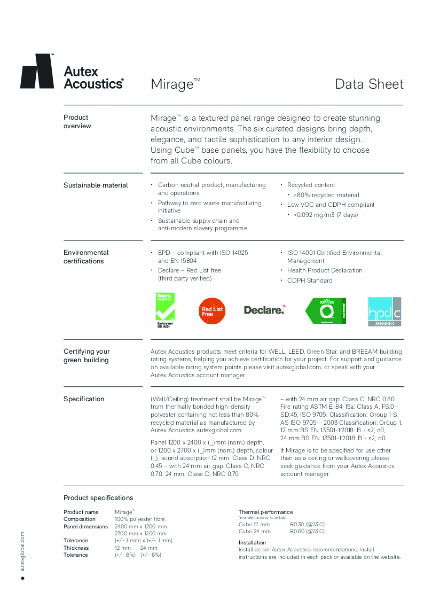

Mirage Data Sheet
Mirage Lookbook NZ UK
