Mipolam Affinity - Sheet - Homogeneous Vinyl Flooring

Verified by manufacturer 2 months ago

4448 - Ruby

Gerflor Flooring UK Limited Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Homogeneous vinyl floor covering in sheet form for high traffic areas.

Jump to:
BOS
01625 428 922 Website

Application

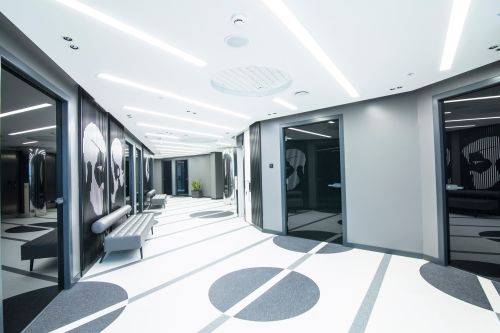

A commercial floor particularly suited to a range of healthcare and education applications.

Description

Mipolam Affinity is a homogeneous vinyl floor covering in sheet form with patented Evercare™ surface treatment for high resistance to chemicals. It requires no wax for life, delivering ease of maintenance and energy savings. Available in 50 colour references with a choice of vibrant and natural tones to combine with a wide array of greys and beiges, all with a matt effect finish.


Features and benefits:

  • Patented Evercare™ surface treatment for high chemical and stain resistance.
  • Requires no waxing for life, delivering energy savings and easy, cost-effective maintenance.
  • Non-directional design.
  • 100% non-porous surface.
  • Highly flexible, easy to install and weld.
  • Compatible with the Gerflor Clean Corner system.
  • Type Binder classification I.
  • Wide range of colours.
  • Colour-dyed to ensure even colour throughout.
  • Contemporary matt finish.
  • 100% recyclable and contains 25% recycled content.
  • Also available in tile format (specified separately).


Installation and maintenance:

  • Can be installed with the patented Clean Corner system for ensured hygiene.
  • Installation and maintenance instructions are available; consult manufacturer for details.

General information

Color

Other

Guidance for specification option:

Please see specification data for options.

Finish

Matt

Material

Vinyl

Shape

Rectangle

Length

20000 mm

Width

2000 mm

Height

2 mm

Warranty description

12 year

Uniclass

Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary

CAWS

M50/150 Sheeting

M50/20 Sheeting

Product range

Sheeting / Homogeneous Vinyl Flooring

Specification data - Polyvinyl chloride (PVC) sheets

Standard

To BS EN ISO 10581.

Use class

To BS EN ISO 10874, class 34–43.

Guidance for specification option:

Commercial, very heavy – Light industrial, heavy.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R9.

Guidance for specification option:

To DIN 51130.

Recycled content

25%.

Width

2 m.

Thickness

2 mm.

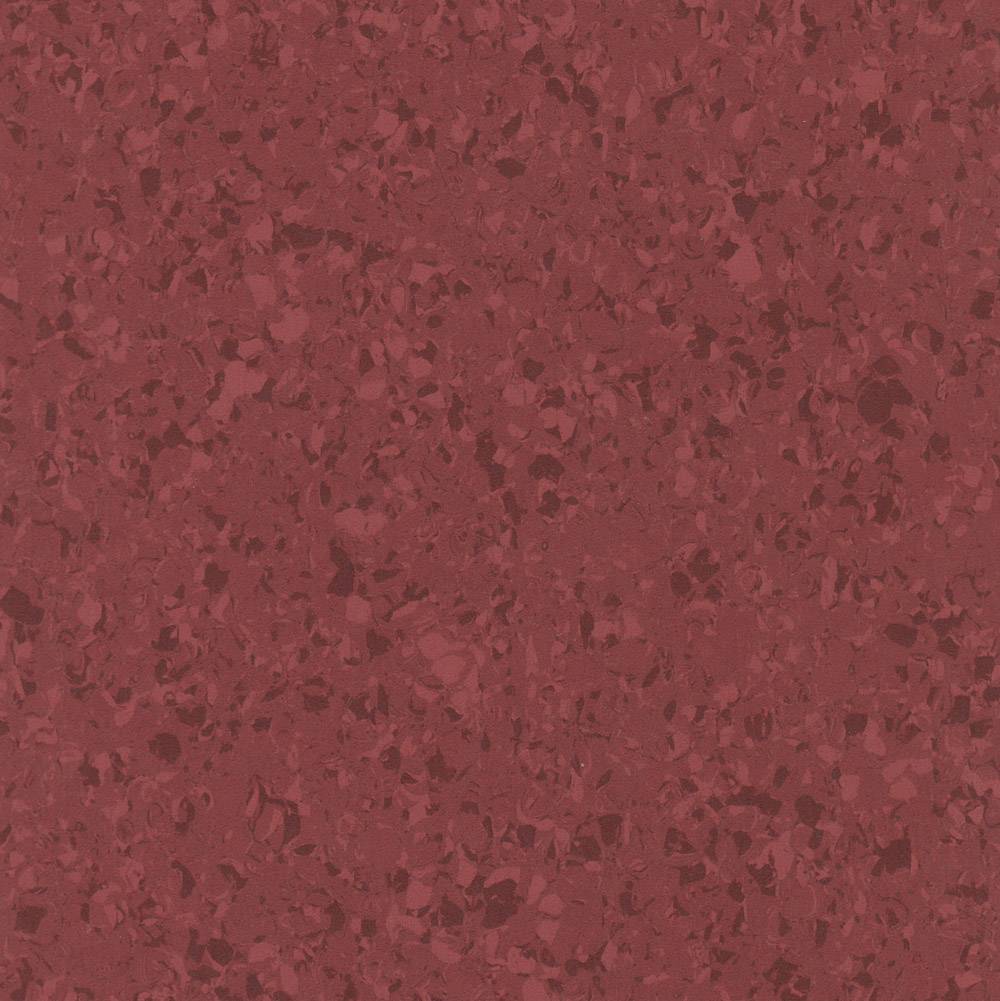

Colour and pattern

Ruby.

Length

20 m.

Accessories

Clean Corner system.

Co-ordinating weld-rods.

Multicoloured weld rods.

Guidance for specification option:

For a more seamless finish.

Weight

2800 g/m².

Fire rating (to BS EN 13501)

Bfl-s1.

Guidance for specification option:

To EN 13501-1.

Static electricity

<2 kV.

Guidance for specification option:

Static electricity electrical propensity (to BS EN 1815).

Dimensional stability (to BS EN ISO 23999)

≤0.40%.

Guidance for specification option:

To EN ISO 23999 and EN 434.

Residual indentation (to EN-ISO 24343-1)

Average measured value ≈0.02 mm.

Guidance for specification option:

Requirement: ≤0.10 mm.

Castor chair continuous use (to ISO 4918 and EN 425)

OK.

Guidance for specification option:

Type W.

ThermalConductivity

0.25 W/m·K.

Guidance for specification option:

To EN ISO 10456.

Surface treatment

Evercare™.

Binder

Type I.

Guidance for specification option:

Binder content to BS EN ISO 10581.

VOC emissions

<10 µg/m³.

Guidance for specification option:

TVOC after 28 days (to ISO 16000-6)

Colour (Light reflectance value (LRV)

10.1.

Sustainability data

Contains Red List materials

No

Material

Vinyl

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit
-

1

Third party certifications

EPD

EPD

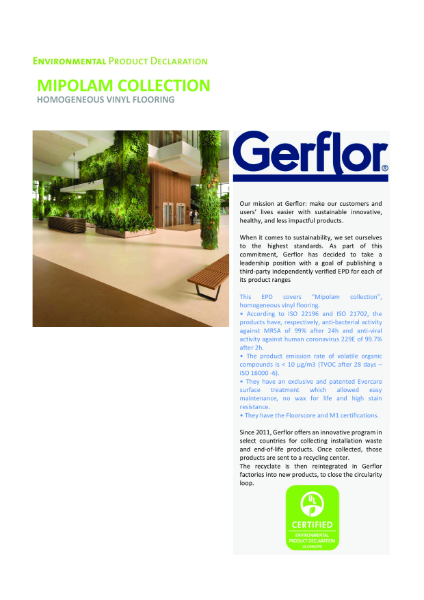

EPD - Mipolam Collection
