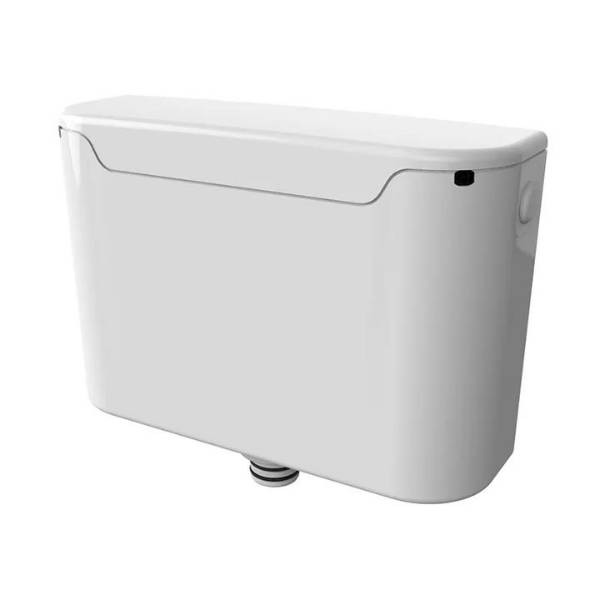

Miniflo® - Cistern
Verified by manufacturer 3 months ago
322950
322950
WRAS
Certificate type
A compact, dual flush concealed cistern.
Application
For domestic or commercial applications.
Description
A compact dual flush concealed cistern designed to fit into smaller spaces.
Features and benefits:
- Compact dimensions enable the Dudley Miniflo to fit neatly into 150 mm ducts.
- Dual flush to support BREEAM level of excellence, factory set to 6/4L, convertible to 5/3 - 4/2.6L.
- Fitted with Hydroflo side inlet, Niagara pneumatic valve and internal overflow warning.
- Top access air tubes enable the button, plate or sensor to be installed up to 250 mm away from the cistern.
General information
Color | White |
Finish | Gloss |
Material | High density polystyrene |
Shape | Rectangle |
Width | 411 mm Guidance for specification option: Depth: 131 mm. |
Height | 276 mm |
Warranty description | Five year Guidance for specification option: Lever operated. Three year Guidance for specification option: Pushbutton operated. |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC cisterns
Approval | Water Regulations Advisory Scheme (WRAS)-approved. |
Standard | To BS EN 997. |
Form | Concealed. |
Operation | Push-button.Flush plate.Automatic, sensor operated. |
Materials | |
Body | PVC. |
Finish and colour | White. |
Capacity | 6/4 L dual flush.5/3 L dual flush.4/2.6 L dual flush. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Overflow | Internal Overflow. |
Outlet | Bottom outlet. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
WRAS
Miniflo Concealed Cistern
Literature
Thomas Dudley Products and Parts Catalogue
Thomas Dudley Specification Brochure
