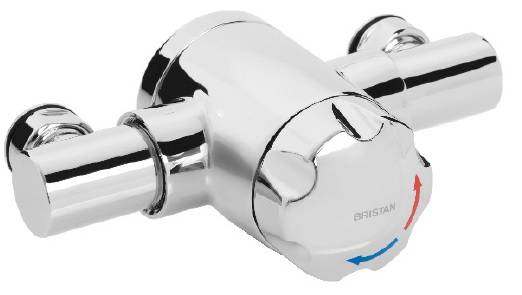

Mini2 TS1203 EL Shower Valve Chrome

Description

Mini 2 OPAC thermostatic exposed shower valve with chrome lever.


Features and benefits:

  • Single sequential control for both temperature and flow.
  • Automatic thermostatic shut-off in the event of hot or cold water failure.
  • Check valves and serviceable filters as standard.
  • Supplied as ‘valve only’ and can be customized by choosing accessories.
  • Adjustable inlet centres between 148–152 mm.
  • Chrome plated to BS EN 248.


General information

Color

Silver

Finish

Chrome

Material

Brass

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

MINI 2 Range

Specification data - Shower thermostatic water supply sets Enhanced data

Approvals

Water Regulations Advisory Scheme (WRAS) approved, TMV2 Approved, TMV3 Approved.

Standards

To BS EN 1111 and BS EN 1287.

Form

Wall mounted thermostatic shower mixer valve.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Flow rate (maximum)

9.1 L/ min at 3 bar.

Thermostatic Valve

Thermostatic cartridge.

Supply

Suitable for all plumbing systems (preferably balanced).

InletConnectionSize

15 mm compression elbows.

Outlet connector

½” BSP.

WorkingPressure

Minimum 0.2 bar, maximum 8 bar.

Fittings

148–152 mm

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

3

2.0
IFC

IFC2X3

2

1.3
Download now from NBS National BIM Library

Literature

Thermostatic Mixing Valves

Thermostatic Mixing Valves
