Mini Beany
Description

The system consists of base channels and top blocks of kerb profile with an elliptical inlet aperture in the centre of the front face. When laid they form a combined kerb and surface water drainage system strong enough to withstand loadings imposed by both road and construction traffic.

Mini Beany base channels:

A range of precast concrete channel sections comprising of standard base units of constant depth and units with inherent gradient or inbuilt falls together with ancillary items are available accommodating a wide range of flow capacities using differing internal channel sizes.

Mini Beany top blocks:

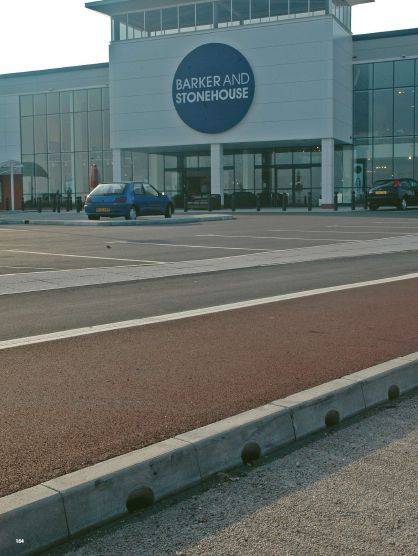

All Mini Beany top blocks are of a kerb profile with an elliptical inlet aperture in the centre of the front face. They are available as either half battered or 45° splayed profiles to suit standard kerb upstands. When installed, inlet apertures at 500 mm centres ensure excellent surface water interception.

General information
Uniclass 2015
Pr_25_93_60_12 Combined drainage and kerb unitsPrimary
CAWS

Q10/190 Carriageway kerb and drainage channel systems

Specification data - Combined drainage and kerb units
Product Reference

Mini Beany

Base units

185

235

285

335

385

Inbuilt fall, no. 1–20

Radius, ___ m

Units for external and internal horizontal curve radii from 6–30 m.

Top blocks -
Type

45º splayed

Kerb upstand of between 75 mm and 100 mm.

Half battered

Kerb upstand of between 75 mm and 125 mm.

Radius, ___ m

Units for external and internal horizontal curve radii from 6–30 m.

Finish/ Colour

Natural coloured hydraulically pressed concrete

Exposed aggregate texture on visible surfaces

Conservation finish on exposed surfaces

Special shapes

Silt Box

For use at high capacity outfalls and silt trap details.

Accessories

Cable duct blocks

Cap outlets

Cast iron access cover and frames

Cover plates

End caps

M tape for sealing cover plates

Trapped gully assemblies

Product Options

Finish/ Colour:

Top blocks can be supplied with pavement marking paint coatings in white, black or yellow. Blocks can be part coated for, e.g. restriction markings. White reflective coated top blocks are available for traffic management purposes. Coloured concrete top blocks can be supplied to special order.
