Description

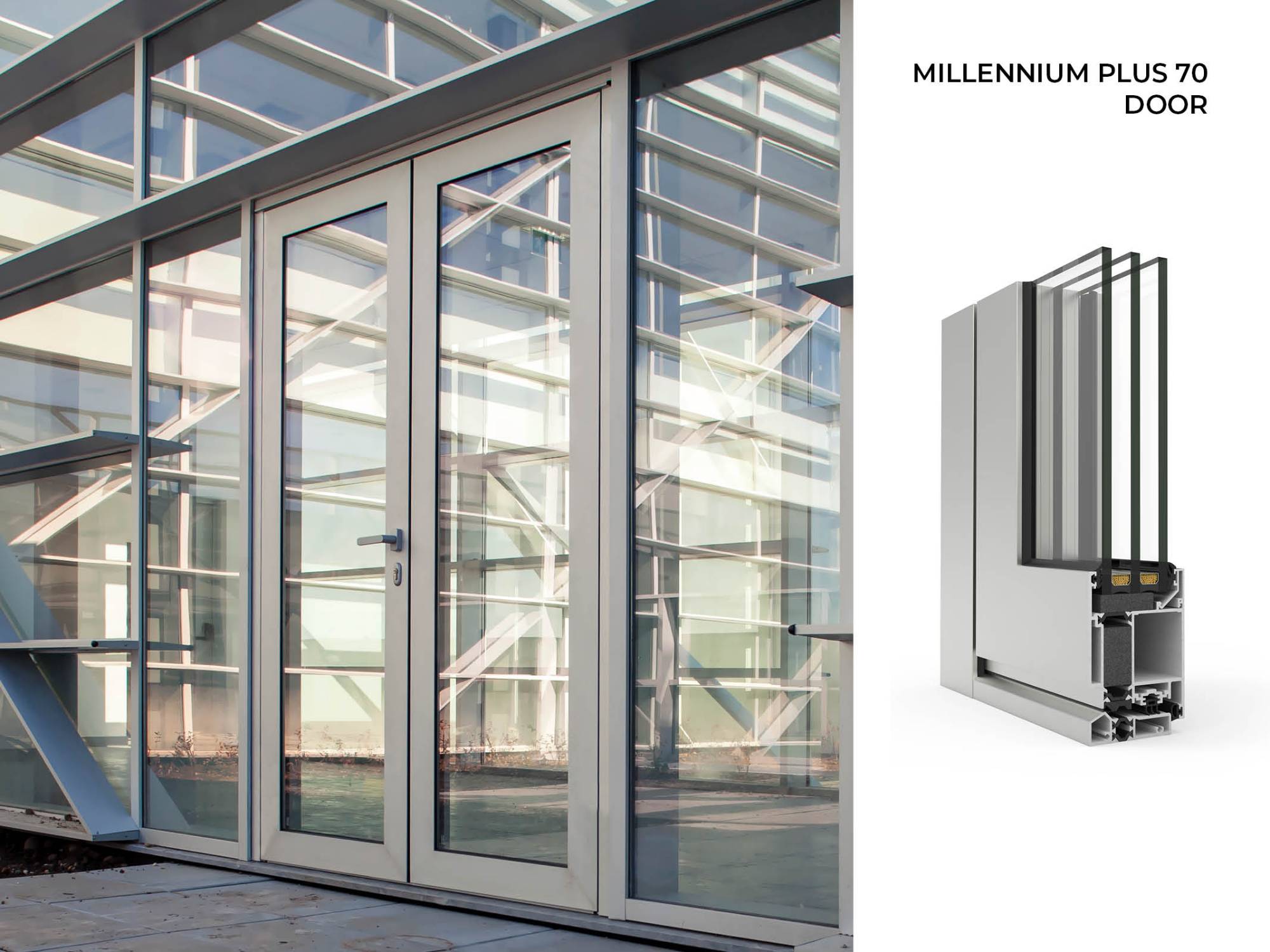

Aluminium hinged intensive-use door system, capable of reaching high levels of weather tightness, energy saving and acoustic insulation with reduced assembly and fabrication time. With 70 mm of basic depth, it can withstand severe climatic demands and provides a high level of energy efficiency.

Features and benefits:

  • Constructed from aluminium alloy 6063 T5.
  • Accessories and hardware supplied by STAC, painted in the same colour as the aluminium profiles.
  • Slim profiles with only 66 mm of visible width.
  • Specially designed for triple glazing.
  • Glazed surface is up to 85% of the total opening surface, and is designed in such a way that it is impossible to distinguish the fixed lights from the openable windows.

General information

Material

Aluminium alloy 6063 T5 profiles, including 24 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zones, as well as the interior of frames and sashes

Size

[Size, Maximum width per sash: 1800 mm; Maximum height per sash: 3000 mm]

-

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets

Product Reference

Millennium Plus 70 Hinged Door

Size

As drawing

Insert reference.

As schedule

Insert reference.

Configuration

Inwards opening

Outwards opening

Operation

Automatic

Manual

Glazing

Insert requirement, available up to 54 mm thickness.

Finish

-

FinishType

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Hardware/ Accessories

Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles. See 'Options' for details.

Standard product features

Material:

Aluminium alloy 6063 T5 profiles, including 24 mm long insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass and perimeter polyolefin foam in rebate zones, as well as the interior of frames and sashes.

Profile thickness:

2 mm.

Depth:

70 mm (frames and sashes).

Maximum weight per sash:

220 kg.

Gaskets:

Two ethylene-propylene diene monomer (EPDM) seals and co-extruded centre gasket.

Thermal transmittance:

  • Frame and sash (Uf): 2.5 W/m²K.
  • Door (Uw): ≥0.9 W/m²K.

Acoustic insulation (maximum):

Rw = 38 dB(A).

Performance:

  • Air permeability (to BS EN 12207): Class 4 (based on 1.2 x 2.3 m, one sash).
  • Water tightness (to BS EN 12208): Class 6A (based on 1.2 x 2.3 m, one sash).
  • Wind resistance (to BS EN 12210): Class C4 (based on 1.2 x 2.3 m, one sash).
  • Resistance to soft body Impact (to BS EN 13049): Class 5 (maximum, based on 1.8 x 2.2 m, two sashes, laminated glass 3+3).
  • Resistance to repeated opening and closing (to BS EN 1191): 1 000 000 cycles (based on0.935 x 2.1 m, one sash).

Product Options

Size:

  • Maximum width per sash: 1800 mm.
  • Maximum height per sash: 3000 mm.

Hardware/ Accessories:

  • Optional concealed hinges for minimalistic aesthetics.
  • Optional burglary resistance certified hardware by STAC (SKG 2) available.
