Description

Aluminium door system suitable for commercial premises and office buildings, available in three versions: Hinged door, automatic sliding door and swing door.

Features and benefits:

  • Constructed from aluminium alloy 6063 T5.
  • Accessories and hardware supplied by STAC, painted in the same colour as the aluminium profiles.
  • Automatic sliding door system specially designed to solve entrances with high transit (offices, shopping centres, hospitals, etc.).
  • Can be integrated with CORTIZO curtain walls.

General information

Material

Aluminium alloy 6063 T5 profiles

Size

[Size, Maximum width per sash: Automatic door: 2000 mm; hinged door: 1450 mm; swing door: 1100 mm; Maximum height per sash: 3000 mm]

-

Uniclass 2015

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Sliding door and partition sets

Product Reference

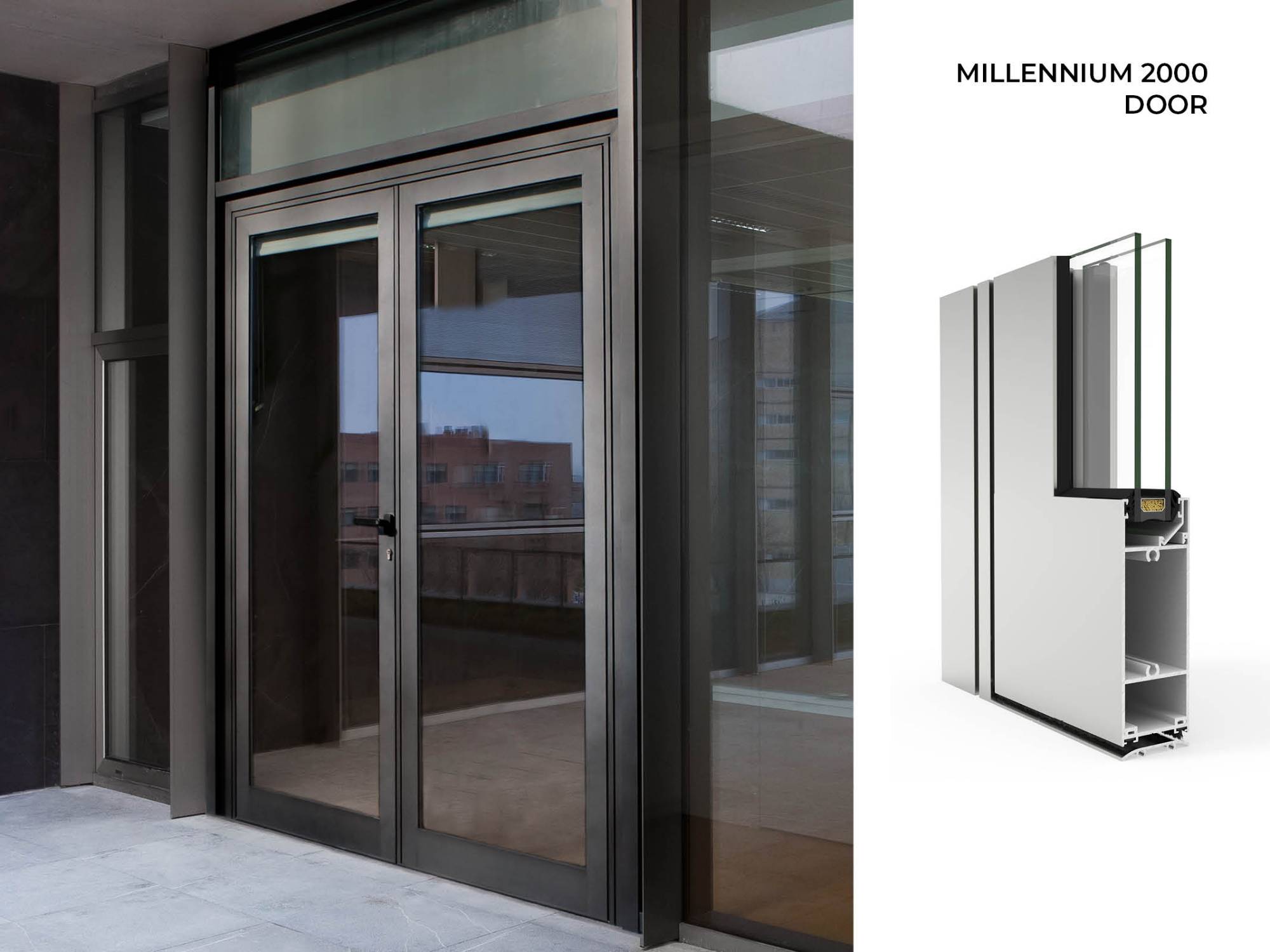

Millennium 2000 Automatic Door

High resistance automatic sliding door system.

Millennium 2000 Hinged Door

High resistance hinged door system capable of 190 kg per sash.

Millennium 2000 Swing Door

High resistance swing door system.

Size

As drawing

Insert reference.

As schedule

Insert reference.

Configuration

Not applicable

For automatic and swing door.

Inwards opening

Outwards opening

Operation

Automatic

As standard with automatic door, also available with hinged door.

Manual

Not applicable with swing door.

Glazing

Insert requirement, available up to 30 mm thickness.

Finish

-

FinishType

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Hardware/ Accessories

Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles. See 'Options' for details.

Standard product features

Material:

Aluminium alloy 6063 T5 profiles.

Profile thickness:

2 mm.

Depth:

45 mm (frames and sashes).

Maximum weight per sash:

  • Automatic and swing door: 120 kg.
  • Hinged door: 190 kg.

Gaskets:

Two ethylene-propylene diene monomer (EPDM) seals.

Thermal transmittance:

≥2.3 W/m²K.

Acoustic insulation (maximum):

Rw = 38 dB(A).

Resistance to soft body Impact (to BS EN 13049):

Class 5 (maximum, based on 1.8 x 2.2 m, two sashes, laminated glass 3+3).

Product Options

Size:

  • Maximum width per sash: Automatic door: 2000 mm; hinged door: 1450 mm; swing door: 1100 mm.
  • Maximum height per sash: 3000 mm.
