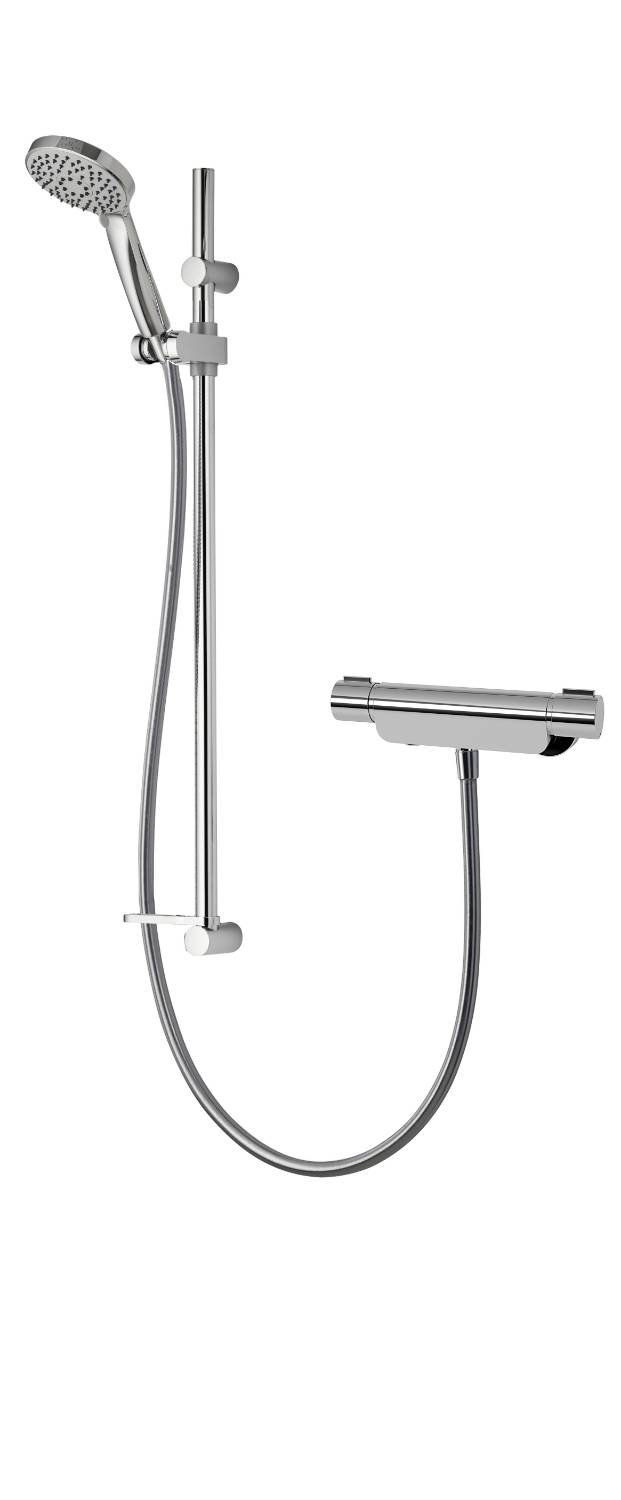

Midas™ 110 - Bar Mixer Shower with Adjustable Head
Verified by manufacturer 7 days ago
Midas™ 110 Bar mixer shower with adjustable head, for all UK water systems.
Application
Suitable for high pressure water systems.
Description
Midas™ 110 Bar mixer shower with adjustable head, high pressure water systems.
Features and Benefits:
- 105 mm showerhead diameter four Spray patterns.
- Easy clean nozzles.
- Adjustable height slider.
- Flow control.
- Eco-stop button for up to 25% water saving.
- Temperature override button.
- Temperature control.
General information
Color | Silver |
Finish | Chrome |
Material | Metal Plastic |
WarrantyDescription | Five year |
Size | 287 x 700 x 105 mm (valve, rail, head). |
Finish | Chrome |
Size | 287 x 700 x 105 mm (valve, rail, head). |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Product range |
Specification data - Shower fittings package
Form | Compact bar mixer shower. |
Materials | - |
Body | Metal and plastic. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 18 L/min. at 3 bar. |
Water supply temperature (maximum) | 65°C.5–20°C (cold supply), 55–65°C (hot supply). |
Pressure | 0.1–10 bar. |
Shower head | 105 mm. Four spray pattern shower head with eco spray. |
InletConnectionSize | 3/4” BSP. |
OutletConnectionSize | 1/2” BSP. |
Centres | 150 mm. Pipe centres can be adjusted between 130—170 mm using supplied elbows. |
Position | Hot/ left, cold/ right. As viewed from front. |
System | Gravity. Boosted gravity. Combi and balanced High Pressure systems. |
SKU | MD110S. |
Environmental information
Country of material origin | Italy |
Country of product manufacture | Italy |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
