Application

Suitable for use in family showering areas.

Description

Shower mixer and column.

Features and benefits:

  • Brass valve with slimline, space saving design.
  • Temperature override button for family-safe showering.
  • Integrated diverter for easy switching between outlets (SC model only).
  • Safe to touch.
  • Anti-twist hose connector.
  • 105 mm slimline shower head with three spray patterns (inner, outer, and combined).
  • 250 mm fixed drencher head (SC only).
  • Smooth chrome hose.
  • High quality metal construction.
  • Easy clean nozzles to help reduce limescale build-up.
  • Midas™ 220 comes complete with an Aqualisa bar valve fixing kit.
  • Five-year guarantee on Midas™ shower valves and two years on shower heads and kits.
  • Matching shower/ bath filler models available (specified separately).

Applications:

Suitable for use in family showering areas.

- Water system compatibility:

  • The SC model is only suitable for use with high pressure and combi boiler water systems.
  • The S model is suitable for use with any water system.

General information
Finish

Gloss chrome finish

Color

Chrome

Features

Adjustable height slider, Flow control, Diverter knob (bath shower mixer), Easy clean nozzles

WarrantyDescription

5 year warranty

Uniclass 2015 Shower fittings package (Pr_40_20_87_75)
Specification data
Product Reference

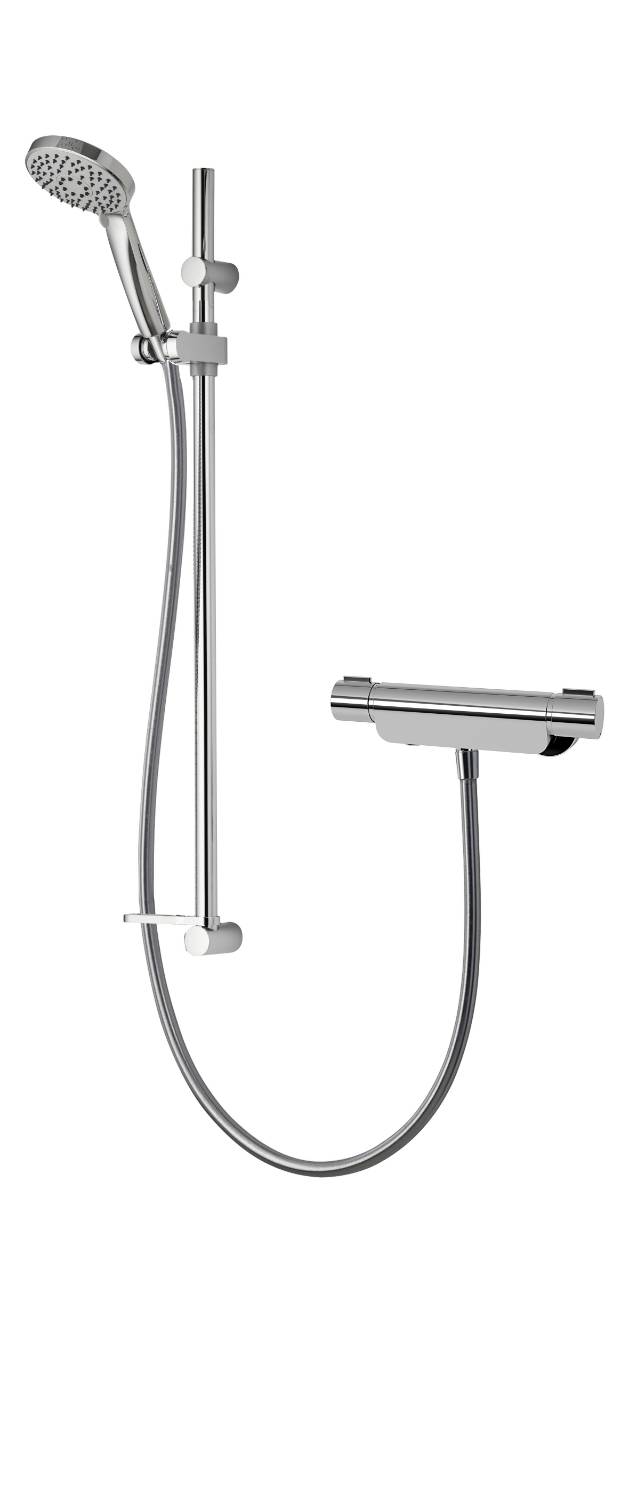

Midas™ 220 - MD220S

Bar mixer shower with adjustable head. Suitable for use with any water system.

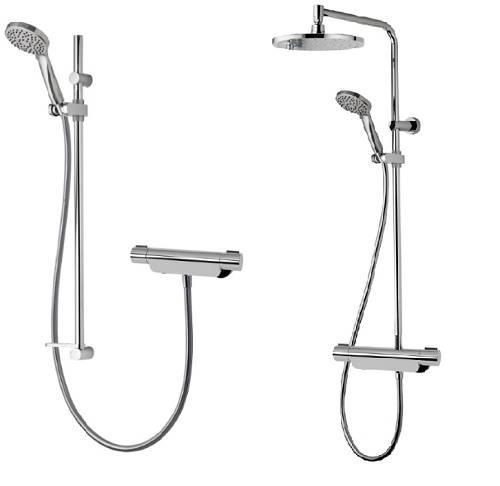

Midas™ 220 - MD220SC

Shower column mixer with adjustable head and fixed drencher head. Only suitable for high pressure and combi boiler water systems.

Accessories

None

479101

Midas™ 12 L/m flow regulator and housing.

479102

Midas™ 9 L/m flow regulator and housing.

479103

Midas™ 6 L/m flow regulator and housing.

479106

Chrome exposed pipe fittings.

525301

Wall mount fitting kit.

910056

Midas™ 8 L/m flow regulator and housing.

BAR001FIX

Bar valve fixing kit.

MD300EFB

Concealed fixing bracket.

Standard product features

Finish:

Chrome.

Shower head:

105 mm diameter slimline handset with three spray patterns. SC model is also supplied with a 250 mm diameter fixed drencher head.

Valve size (h x w x d):

75 x 275 x 70 mm (150 mm inlet centres).

Rail length (BSM and S only):

865 mm.

Pressure requirements:

0.1–10 bar (static).

Supply temperature:

  • Cold: 5–20°C.
  • Hot: 55–65°C.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.1
Revit
- 2 2.1
Download now from NBS National BIM Library
