Microwave Ovens Bronze trim
Verified by manufacturer 3 months ago
NL9WR21Y1B
NL9WR21Y1B
A built-in stainless steel microwave oven.
Application
Suitable for domestic applications. Recommended for wall units but also suitable for tall housing.
Description
A range of stainless steel microwave ovens with Flex Design.
Features and benefits:
- 3.7 inch full touch TFT display: easy use and complete control.
- Flex Design: optional finishes.
- Combination with Flex Design: can be paired with other appliances.
- Automatic Meal Settings: preselected programmes to cook a wide variety of dishes with ease.
- High wattage and low effort for quick meals.
General information
Color | Black Bronze |
Material | Stainless steel |
Shape | Rectangle |
Length | 318 mm Manufacturer guidanceDepth. |
Width | 596 mm |
Height | 382 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
SKU Code | NL9WR21Y1B, NR9WR21Y1B |
Specification data - Microwave ovens
Installation | Built-in. |
Oven type | Microwave only. |
Material and finish | Stainless steel. |
Dimensions | |
Width (maximum) | 596 mm. |
Depth (maximum) | 318 mm. |
Height (maximum) | 382 mm. |
Capacity | 21 L. |
Features | Number of automatic programmes: 7 PC. Flex Design. Touch control. Touch key operation. Frameless installation. Start button. Door contact switch. 90, 180, 360, 600 and 900 W. LED light. Electronic clock timer. Left hinged door. Cooling fan. EasyClean. |
Rating | 1220 W. |
Electrical supply | 220–240 V, 50/60 Hz. |
Accessories | Not required. Z9038AY0: FlexDesign AG 38 MW 38. Z9038BY0: FlexDesign BB 38 MW 38. Z9038DY0: FlexDesign DB 38 MW 38. Z9038MY0: FlexDesign MS 38 MW 38. Z9098AY0: SC FlexDesign AG 98 60 + MW 38. Z9098BY0: SC FlexDesign BB 98 60 + MW 38. Z9098DY0: SC FlexDesign DB 98 60 + MW 38. Z9098MY0: SC FlexDesign MS 98 60 + MW 38. |
Weight | 20.9 kg. |
Sustainability data
Material | Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

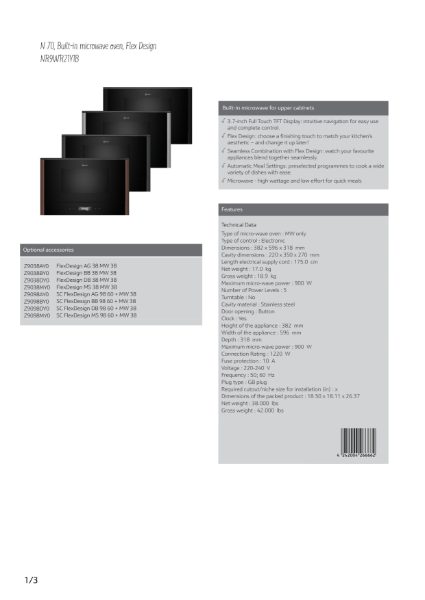

Microwave Ovens Bronze Trim NL9WR21Y1B, Datasheet
Microwave Ovens Bronze Trim NR9WR21Y1B, Datasheet
