MG15 Grid
Description

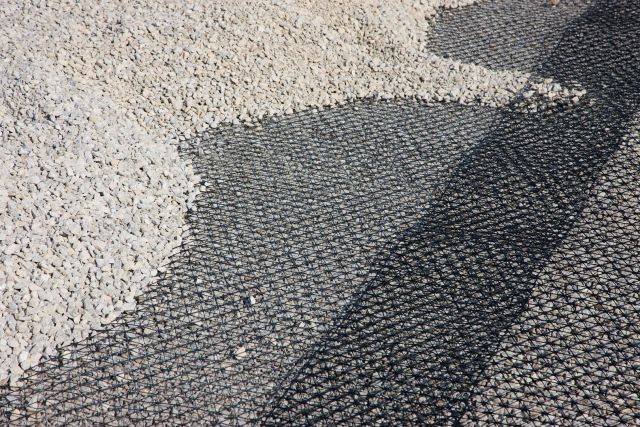

A stabilizing grid for the aggregate sub-base in Marshalls Priora permeable paving system, which works by confining individual elements of the 20 mm Priora Aggregate, which in turn stabilises the structure beneath the paved surface. MG15 Grid can compensate for uneven site conditions, such as weak spots in the subgrade, and provides a consistent base on which to build a pavement.

Features:

  • Grid apertures are the ideal size for confining particles of 20 mm Priora Aggregate.
  • The rectangular profile of the ribs generate efficient interlock with the broken faces of 20 mm Priora Aggregate.
  • The superior junction efficiency provides more robust performance in Priora’s already rationalised designs.
  • The triangular shape of the apertures allows the grid to be laid in any orientation and allows the pavement to be trafficked in any direction.

Benefits:

Marshalls MG15 Grid has the effect of improving the CBR (California Bearing Ratio) of a sub grade by 1%. On subgrades with a CBR of 1–4%, this can result in a series of benefits:

  • Financial savings: a shallower sub-base requires less imported aggregate and has lower disposal costs.
  • Environmental benefits: Less displaced material, less imported aggregate and less energy during construction result in a reduced carbon footprint.
  • Practicality: In areas where excavation depths are limited (city centres, for example) the shallower sub-base created by inclusion of Marshalls MG15 grid can make a Priora system a viable option.

General information
Features

Grid apertures are the ideal size for confining particles of 20 mm Priora Aggregate

The rectangular profile of the ribs generate efficient interlock with the broken faces of 20 mm Priora Aggregate

The superior junction efficiency provides more robust performance in Priora’s already rationalised designs

The triangular shape of the apertures allows the grid to be laid in any orientation and allows the pavement to be trafficked in any direction

Uniclass 2015
Pr_15_57_33_64 Plastics geogridsPrimary
CAWS

Q24/115 Permeable concrete block paving – total infiltration

Q24/117 Permeable concrete block paving – partial infiltration

Q24/119 Permeable concrete block paving – no infiltration

Q24/12 Permeable concrete block paving

Specification data - Plastics geogrids
Product Reference

MG15 Grid

Standard product features

Roll size:

4 x 50 m.

Construction:

  • Rib shape: Rectangular.
  • Aperture shape: Triangular.
  • Open area aspect ratio: >85%.
  • Junction efficiency: >90%.

Durability:

  • Resistance to chemical degradation: 96%.
  • Resistance to weathering: 98%.
  • Resistance to oxidation: 90%.
