Meter Over Box - 2 Hour Fire Rated- Metal Faced Picture Frame - Wall Access Panel

Name: Meter Over Box - 2 Hour Fire Rated- Metal Faced Picture Frame - Wall Access Panel
Brand: Exitile Access Ltd
SKU: n3bnRn6YRw9rNd247MUiSn

Verified by manufacturer 1 day ago

Exitile Access Ltd

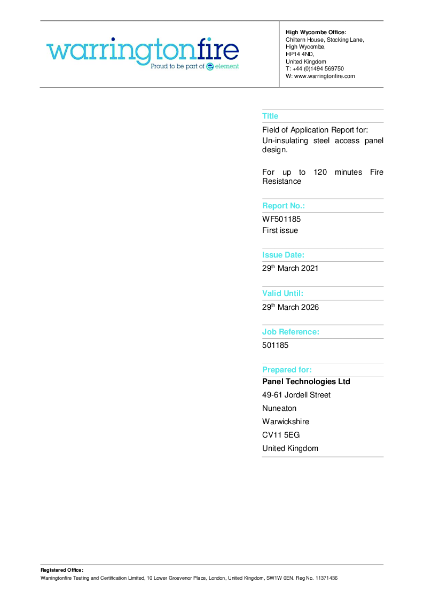

Product certifications:

Warringtonfire
Certificate type

Meter Over Box- Metal faced meter over box, picture frame surround, 2 hour fire rated, Triangular electrical cabinet lock.

Jump to:

BOS

+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall systems.

Description

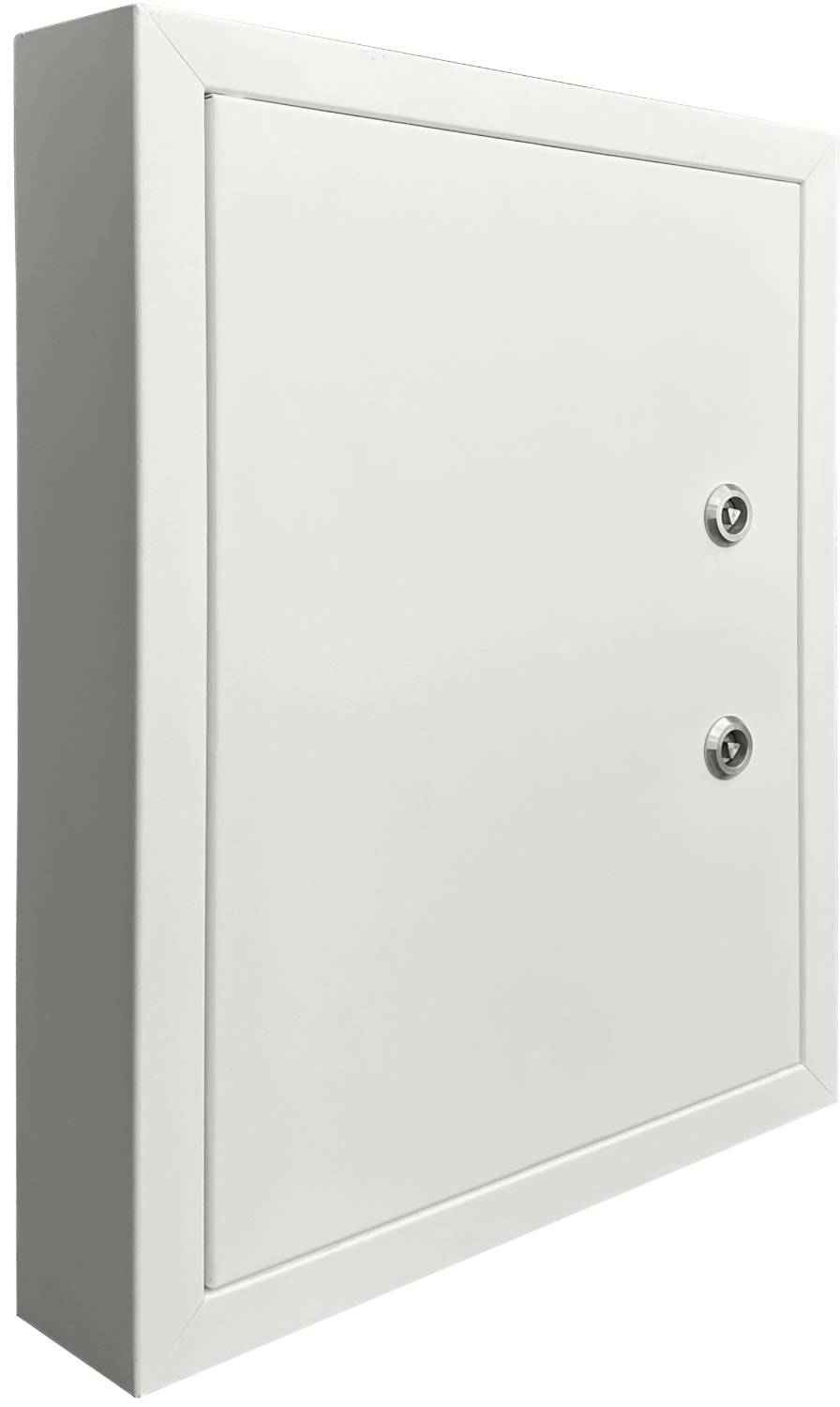

This Meter Box is designed to be surface mounted onto a structural membrane of a block wall system. It is manufactured with a 25mm wide picture frame. The Meter Box has a Metal faced door. The Meter Box door leaf is locked in place via a Budget Lock & a 8mm Triangular Meter Cabinet Insert as standard, other lock options are available upon request. The Meter Box is Powder Coated RAL 9010 30% Gloss. Other colours available upon request.

Tests

2 Hour Fire Rated for integrity up to 1070x650mm in a wall application tested in accordance with BSEN 1634-1: 2014 from the meter side (Rear).

Seals

Draught Seals YES

Smoke Seals NO

Air Seals NO

Acoustic Seals NO

Intumescent Seals YES

The Meter Box is manufactured from Zintec Steel with a 0.9mm thick Door and a 1.2mm thick Frame.

General information

Color	White Other
Finish	Powder-coated
Material	Steel
Shape	Square Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	L20/630 Hatches K10/430 Access panels

SKU Code	EX53-000-PD-BF-STC

Specification data - Access panels

Classification data
Position	Wall-mounted.
Size	- Manufacturer guidance Bespoke sizes available, insert requirements. This product is manufactured in the UK and can be made to any bespoke size between 300 x 300 mm (minimum) and 1800 x 900 mm (maximum). The average lead time is 3–5 working days.
Frame	Bead for taping and jointing or skim coat plastering.
Panel	-
Material	Steel with plasterboard infill.
Integral finish	Powder-coated.
Latch or lock type	Strengthened touch catches. Other. Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements.
Operation	Concealed hinges, outward opening.
Colour/ Finish	RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements.

Sustainability data

Country of product manufacture	United Kingdom
Material	Steel
Recyclability	Fully Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	22 %
Expected Life	Ten year
