Verified by manufacturer today
Metalite Collection for aluminium (internal) BRAD-ML-I-AL
Metalite: Real metal collection of luxury finishes, specifically designed for cosmetically important architectural metalwork. Provides a practical alternative when solid metal is not a viable option.
Intended for use on architectural metalwork, external and internal, including mild steel, cast metals, stainless steel, aluminium and MDF (internal).
Suitable for the following environments: Interior Dry (C1), Rural (C2), Urban (C3).
Metalite should be applied in conjunction with an appropriate primer and sealant.
Typical applications include:
The Metalite Range of luxury finishes is a timeless crafted collection of outstanding and unrivalled real metal finishes applied to the substrate. Finishes include Antique Bronze, Antique Brass, Real Bronze, Real Brass, Oiled Bronze and Cast Effect Metals.
Features and benefits:
Sustainability:
In summary, Metalite is environmentally friendly and conserves resources. By utilizing recycled materials, it's a sustainable choice, surpassing water-based paints in eco-friendliness. With minimal resin content, Metalite reduces airborne emissions, further contributing to environmental preservation.
Color | Other Guidance for specification option:

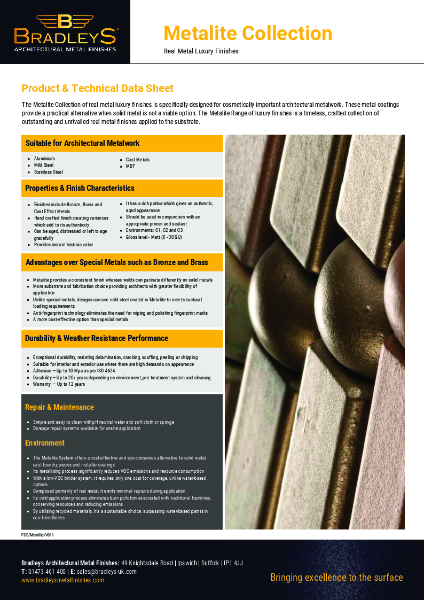

Manufacturer guidancePatinated Bronze, Brass and other special metals: Refer to Product Data Sheet: https://source.thenbs.com/literature/-/mJFCBaK7KvCzrQhfNBN7vq/dKR3h4bdbT7jk4woAVd98T and/or website: https://www.bradleysmetalfinishes.com/samples/finishes-library/#metalite or: https://source.thenbs.com/product/metalite-collection/4vnQ6JRtntERnTSzHBLjtu/9cXA6ke8Gh7gSaKzGdBBHN |
Finish | Metallic Distressed Aged Brass Bronze |
Material | Brass Bronze Metal Nickel bronze |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year Guidance for specification option: 15+ years durability. Suitable for:
20 year Guidance for specification option: 20+ years durability. Suitable for:
|
Uniclass | |
CAWS | L30/550 Purpose-made balustrades L30/560 Proprietary balustrades M60/18 Special coating L30/55 Proprietary balustrades M60/195 Special coating H11/137 Windows/ opening lights H11/135 Doors L30/50 Purpose-made balustrades |
Classification data | |
Description | Real metal finish. |
System performance | Interior Dry (C1). |
System manufacturer | Bradleys Architectural Metal Finishes. |
Preparation | Degrease. Chromate pre-treatment or chromate-free Qualicoat Seaside pre-treatment. Guidance for specification option: Any laser cut, water cut or sharp edges will need removing with a 1–2 mm radius - ISO 8501-3 refers. |
Initial coats | Not required. |
Undercoats | Bondakote X2. |
Finishing coats | Liquified real metal sealed with anti-fingerprint technology. |
Sealing of internal movement joints | Guidance for specification option: Insert requirements or omit. |
External pointing to existing frames | Guidance for specification option: Insert requirements or omit. |
Colour | Buckingham Age Brass: MET103. Mid-Antique Brass: MET104. Brass Antique Aurichalum: MET105. Mid-Antique Warm Brass: MET109. Bronze Aegean 3200 BC: MET115. Bronze Antique Modern: MET116. Bronze Verde Natural Rain: MET116VNR. Bronze Black: MET117. Old Penny Bronze: MET118. Old Penny Bronze Dark: MET118D. |
Accelerated weathering | Tested to: Xenon arc weathering ISO 16474-2. Results: No cracking or flaking after 1000 hours. Conclusion: Metalite coatings show no visible defects after 1000 hours of artificial weathering according to ISO 16474-2. |
Adhesion | Up to 10 MPa as per ISO 4624. |
Dry film thickness | Approx. 220–280 µm including primer and sealer. |
Gloss level | Matt <10 GU (Gloss Units). |
Maintenance | Simple and easy to clean with pH neutral water and soft cloth or sponge. Repairability: damage repair systems available for onsite application. |
Standard | To BS EN 12206-1 and BS EN 13438. QUALICOAT Specification. Guidance for specification option: Standard applies to Bondakote Primer only. |
System code | BRAD-ML-I-AL. Guidance for specification option: BRAD-ML-I-AL: Metalite Collection - Real Metal Luxury Internal System for Aluminium - 20+ Years Durability - C1 Environment; (Degrease. Chromate Pre-treatment/Chromate-Free Qualicoat Seaside Pre-treatment. Bondakote Primer X2. Apply Metalite Coating. Create Polished Finish or Patina to Age Effect as required. Seal with Anti-Fingerprint Technology). Input colour reference. Manufacturer guidanceFull system code includes colour code; consult manufacturer for detail or view website: https://www.bradleysmetalfinishes.com/samples/finishes-library/#metalite |
Material | Brass Bronze Metal Nickel bronze |
Recyclability | Does not compromise the recyclability of the underlying material. |
