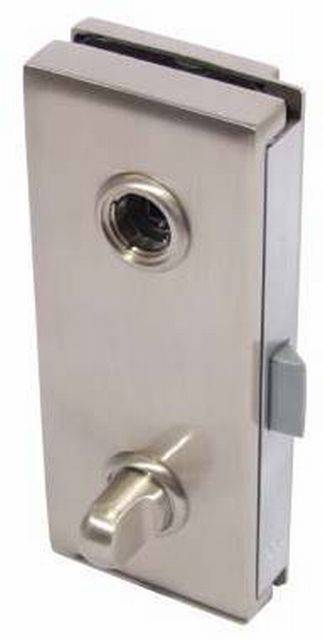

Metalglas 'Reina' Lock
Description

A range of vertical brass glass door locks, available in two finishes.

Features:

  • Designed for 8–12 mm toughened glass.
  • Dimensions: 73 x 176 mm.
  • Flat strike and fixing materials included.
  • Handles to be ordered separately – select from StarTec range.
  • Part of the Metalglas range of glass door and panel fittings.

General information

Features

Designed for 8–12 mm toughened glass

Dimensions: 73 x 176 mm

Flat strike and fixing materials included

Handles to be ordered separately – select from StarTec range

Part of the Metalglas range of glass door and panel fittings

Uniclass 2015

Pr_30_36_08_84 Special function door locksPrimary

CAWS

P21/26 Special function door locks

P21/530 Special function door locks

Specification data - Special function door locks

Product Reference

981.14.174 Metalglas 'Reina' Lock

V-750 WC, chrome.

981.14.176 Metalglas 'Reina' Lock

V-750 WC, nickel.

981.14.184 Metalglas 'Reina' Lock

V-750 PZ, left hand, chrome.

981.14.186 Metalglas 'Reina' Lock

V-750 PZ, left hand, nickel.

981.14.194 Metalglas 'Reina' Lock

V-750 PZ, right hand, chrome.

981.14.196 Metalglas 'Reina' Lock

V-750 PZ, right hand, nickel.

Cylinder

Not required

916.98.004

Key both sides, chrome.

916.98.006

Key both sides, nickel.

916.98.014

Cylinder and turn, 21/ 27 mm, chrome.

916.98.016

Cylinder and turn 31/ 31 mm, chrome.

916.98.024

Key both sides, symmetrical, chrome.

916.98.026

Key both sides, symmetrical, nickel.

916.98.034

Cylinder and turn, 21/ 27 mm, nickel.

916.98.036

Cylinder and turn, 31/ 31 mm, nickel.

916.98.104

WC cylinder knob for lock side, chrome.

916.98.106

WC cylinder knob for lock side, nickel.

916.98.114

WC cylinder knob for rebated side, chrome.

916.98.116

WC cylinder knob for rebated side, nickel.

916.98.124

Cylinder with turn both sides, chrome.

916.98.126

Cylinder with turn both sides, nickel.

916.98.134

WC cylinder with two knobs, chrome.

916.98.136

WC cylinder with two knobs, nickel.

Product Options

Product reference:

- V-750 PZ vertical lock with cylinder hole:

  • Vertical lock with cylinder hole.
  • Handed versions available.
  • Cylinder to be ordered separately.

- V-750 WC vertical lock:

Vertical lock reversible with W.C. latch.

- Finish:

Satin chrome plated or satin nickel plated.

Cylinders:

- Cylinder with key both sides:

  • Cylinder length: 48 mm.
  • Backset: 21/ 27 mm.

- Cylinder and turn:

  • Cylinder length: 48 or 62 mm.
  • Backset: 21/ 27 mm or 31/ 31 mm.

- Cylinder with key both sides, symmetrical:

Cylinder length: 44 mm.

- WC cylinder knob for lock side:

  • Cylinder length: 43 mm.
  • Backset: 26/ 17 mm.
  • 30 mm diameter knob.

- WC cylinder knob for rebated side:

  • Cylinder length: 43 mm.
  • Backset: 17/ 26 mm.
  • 30 mm diameter knob.

- Cylinder with turn both sides:

  • Cylinder length: 43 mm.
  • Backset: 17/ 26 mm.
  • 30 mm diameter knobs.

- WC cylinder with two knobs:

  • Cylinder length: 43 mm.
  • Backset: 17/ 26 mm.
  • 30 mm diameter knobs (vertically offset).
